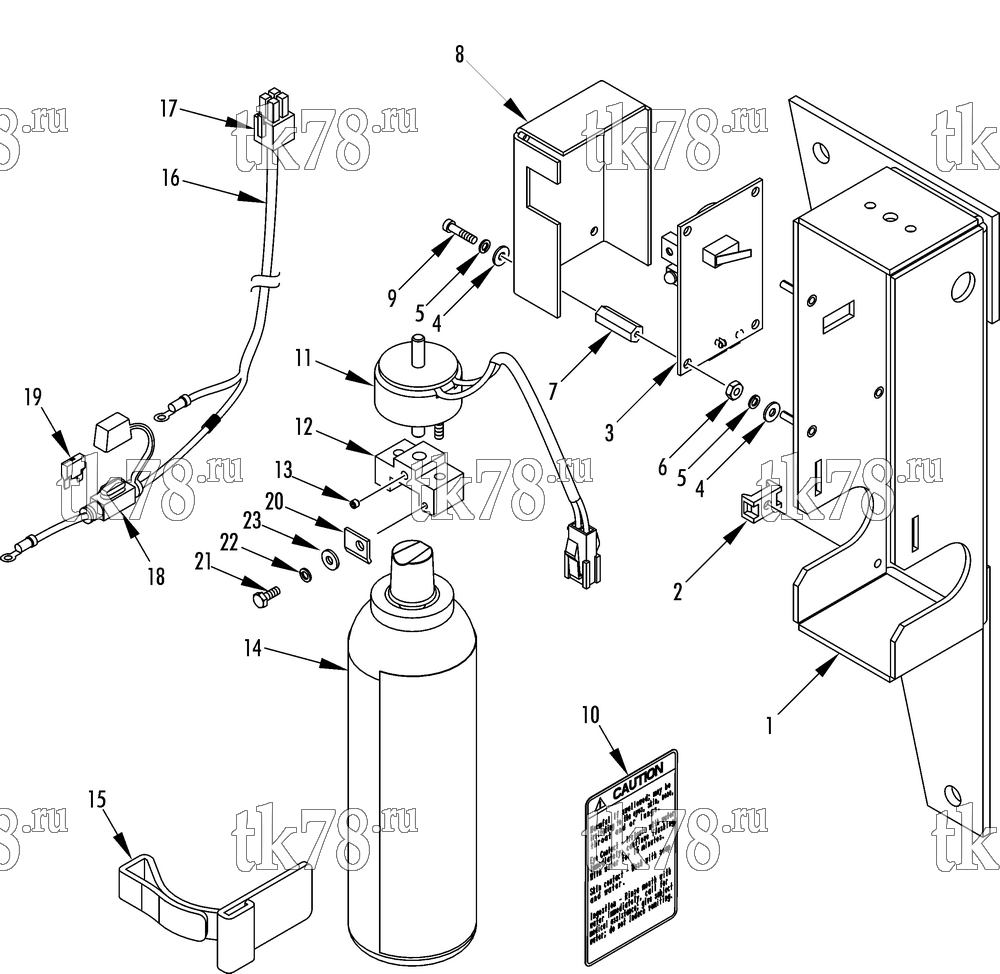

Установкa Thermo King T1-M218 схема ENVIROFRESH KIT (008967) – 246F7
Обновление от: 2/18/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8694 | BOX - Envirofresh | 1 | |
| 55-2977 | SCREW-HH 1/4-20 SS | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 2 | 99-3427 | MOUNT - cable tie | 1 | |
| 55-2988 | RIVET - mount | 1 | ||
| 55-2330 | WRAP - band | 1 | ||
| 3 | 41-7395 | BOARD - pc, spray control | 1 | |
| 4 | 55-2359 | FLATWASHER | 8 | |
| 5 | 55-2360 | LOCKWASHER | 8 | |
| 6 | 55-2361 | NUT - pc board | 4 | |
| 7 | 92-5850 | STANDOFF | 4 | |
| 8 | 92-5851 | COVER - pc board | 1 | |
| 9 | 55-3427 | SCREW - cover | 1 | |
| 10 | 92-5878 | NAMEPLATE - Caution | 1 | |
| 11 | 41-7935 | SOLENOID | 1 | |
| 12 | 92-5853 | PLUNGER - spray nozzle | 1 | |
| 13 | 55-1768 | SCREW - set | 1 | |
| 14 | 203-553 | BOTTLE - Envirofresh fragrance | 1 | |
| 15 | 51-1567 | GRIP - tie | 1 | |
| 16 | 41-7396 | HARNESS - Envirofresh | 1 | |
| 17 | 41-654 | CONNECTOR - 4-way | 1 | |
| 18 | 41-3074 | HOLDER - fuse | 1 | |
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 19 | 41-4551 | FUSE - mini (5 amp, 32V) | 1 | |
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 20 | 92-6242 | PLATE - nozzle support | 1 | |
| 21 | 55-3513 | SCREW - plate | 1 | |
| 22 | 55-3014 | LOCKWASHER | 1 | |
| 23 | 55-3013 | FLATWASHER | 1 |
