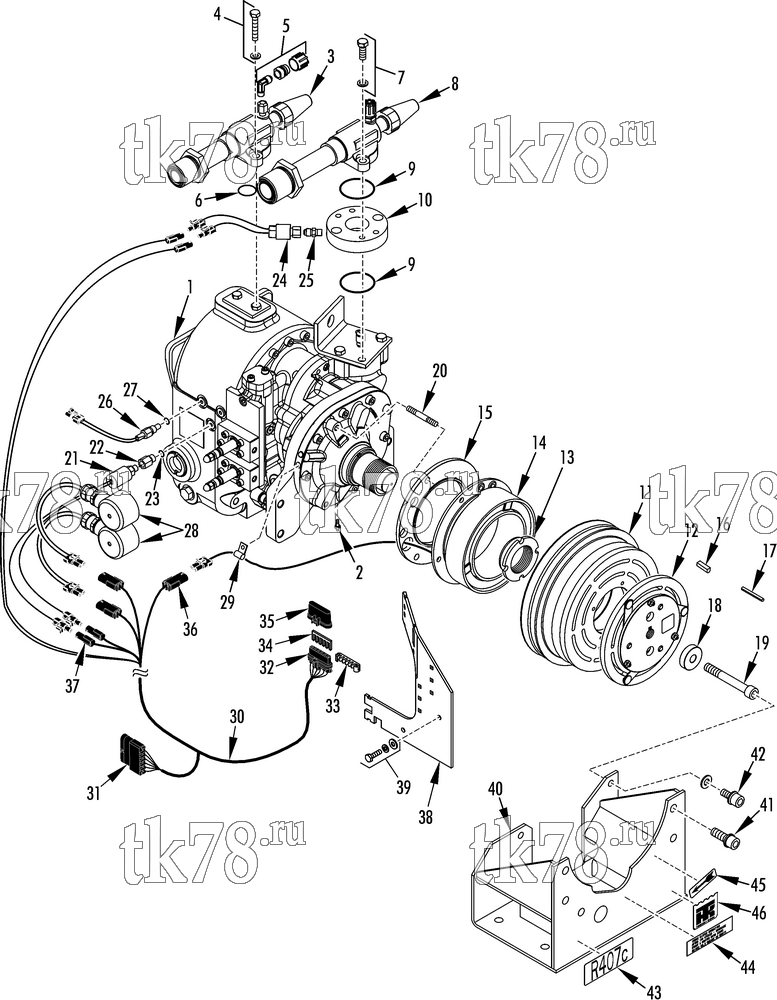

Установкa Thermo King T1-M205 схема COMPRESSOR GROUP (1E10663G06, KIT 702085) – 240H2
Обновление от: 10/20/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-970 | COMPRESSOR - screw QS391B (see 240H1) | 1 | |
| 2 | 55-2387 | FITTING - lubrication | 1 | |
| 3 | 66-5492 | VALVE - discharge (see 212D3) | 1 | |
| 4 | 55-9726 | SCREW - valve | 2 | |
| 55-4613 | FLATWASHER | 2 | ||
| 5 | 55-308 | ELBOW | 1 | |
| 33-768 | GASKET - cap | 1 | ||
| 55-1983 | CAP - elbow | 1 | ||
| 203-393 | SEALER - thread | A/R | ||
| 6 | 33-727 | O-RING - valve | 1 | |
| 7 | 55-529 | SCREW - valve | 2 | |
| 55-896 | FLATWASHER | 2 | ||
| 8 | 61-4908 | VALVE - suction (see 240F8) | 1 | |
| 9 | 33-230 | O-RING - valve/spacer (1.875 id) | 1 | |
|
10-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 380 ₽ |
|
| PP-33-230 | О-ринг сервисного клапана, X418/426/430/640 | 220 ₽ |
|
|
| 10 | 22-1178 | SPACER - suction valve | 1 | |
| 55-9731 | SCREW - spacer | 2 | ||
| 11 | 77-2642 | PULLEY (2-5V groove, 7.75 in od) | 1 | |
| 12 | 107-306 | KIT - clutch (see 172D7) | 1 | |
| 13 | 77-2643 | RETAINER - bearing | 1 | |
| 14 | 45-1965 | FIELD - clutch (24V) | 1 | |
| 33-564 | GROMMET - wire | 1 | ||
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 15 | 77-1083 | SPACER - clutch | 1 | |
| 16 | 55-9032 | KEY - shaft | 1 | |
|
10-55-9032 | Шпонка коленвала, X426LS/430LS | 590 ₽ |
|
| 17 | 55-9728 | PIN - spring | 1 | |
| 18 | 77-2644 | SPACER - hub & armature | 1 | |
| 19 | 55-9729 | SCREW - shaft | 1 | |
| 20 | 55-3451 | STUD - clutch | 3 | |
| 55-790 | LOCKWASHER | 3 | ||
| 55-789 | NUT | 3 | ||
| 21 | 41-4486 | SWITCH - hpco | 1 | |
| 22 | 55-9730 | ADAPTER - switch | 1 | |
| 23 | 33-3381 | O-RING - adapter | 1 | |
| 24 | 41-4147 | SWITCH - lpco | 1 | |
| 25 | 55-7213 | ADAPTER - switch | 1 | |
| 26 | 41-3827 | SENSOR - thermistor (for connector see 115D14) | 1 | |
| 27 | 33-3381 | O-RING - thermistor | 1 | |
| 28 | 41-5213 | COIL (24V, for connector see 115D14) | 2 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 2 | ||
| 29 | 55-456 | CLAMP (0.250 dia) | 1 | |
| 55-736 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 30 | 41-5209 | HARNESS - compressor | 1 | |
| 31 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 32 | 41-1789 | CONNECTOR - tower (6-pin) | 1 | |
| 33 | 41-1790 | LOCK - secondary (6-pin connector) | 1 | |
| 34 | 41-4280 | BUSBAR | 1 | |
| 35 | 41-1787 | COVER - connector | 1 | |
| 36 | 44-5835 | CONNECTOR (2-pin, see 115D14) | 3 | |
| 37 | 44-7327 | CONNECTOR - tower (1-pin, see 115D14) | 3 | |
| 38 | 92-5704 | BRACKET - mounting | 1 | |
| 39 | 55-2957 | SCREW - bracket | 2 | |
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 40 | 92-1309 | BRACKET - mounting | 1 | |
| 55-4931 | WASHER - special | 4 | ||
| 41 | 55-9726 | SCREW - bracket | 4 | |
| 55-6283 | LOCKWASHER | 4 | ||
| 42 | 55-9727 | SCREW - bracket | 4 | |
| 55-7072 | FLATWASHER | 4 | ||
| 55-1173 | LOCKWASHER | 4 | ||
| 43 | 41-4205 | NAMEPLATE - R407c | 1 | |
| 44 | 99-7517 | NAMEPLATE - Clutch Maintenance | 1 | |
| 45 | 99-9084 | NAMEPLATE - arrow | 1 | |
| 46 | 91-3247 | NAMEPLATE - TK logo | 1 |
