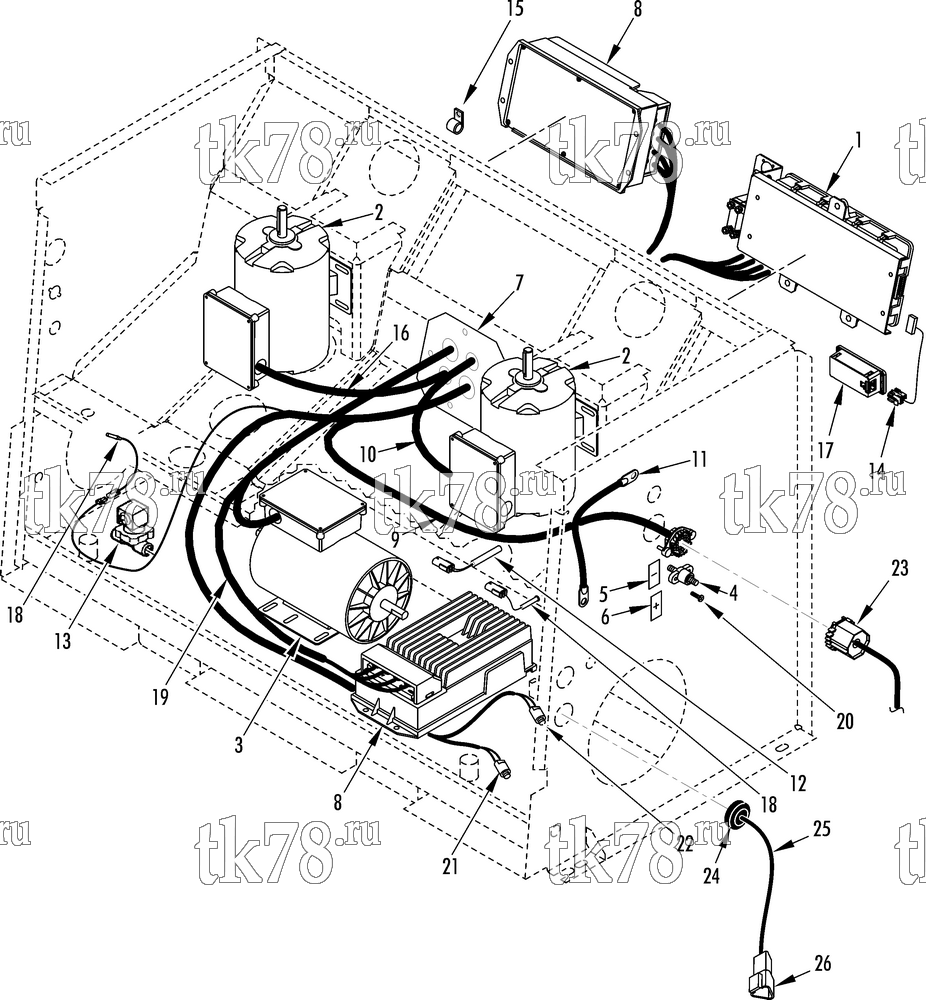

Установкa Thermo King T1-M177 схема ELECTRICAL COMPONENTS – 230H8
Обновление от: 1/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | MODULE - IntelligAIRE (see 172A2) | 1 | |
| 2 | 104-740 | MOTOR - condenser | 2 | |
| 3 | 104-741 | MOTOR - evaporator blower | 1 | |
| 4 | 51-1946 | STUD - terminal (black) | 1 | |
| 55-9550 | STUD - terminal (red) | 1 | ||
| 55-671 | NUT | 4 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER | 4 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 92-1290 | COVER - harness, block off (see main harness) | 1 | |
| 99-2280 | EXTRUSION - rubber (cut to 6.0 in) | A/R | ||
| 55-1587 | SCREW - cover | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 8 | 41-3590 | DRIVE - motor (see 187F2) | 2 | |
| 841-3590 | DRIVE - motor (reman) | 1 | ||
| 9 | NSS | HARNESS - main (IntelligAIRE, see main harness) | 1 | |
| 10 | 41-4191 | HARNESS - condenser motor (motor 1) | 1 | |
| 41-4921 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 11 | 41-5437 | HARNESS - battery cable (red) | 1 | |
| 55-3834 | SCREW - harness | 1 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-8568 | LOCKWASHER | 1 | ||
| 55-4954 | NUT | 1 | ||
| 41-4631 | HARNESS (2) | 1 | ||
| 41-4193 | HARNESS (34) | 1 | ||
| 41-4194 | HARNESS (35) | 1 | ||
| 41-4817 | CONNECTOR - liquid tite | 2 | ||
| 41-5359 | WASHER - sealing | 1 | ||
| 55-2635 | NUT - connector | 2 | ||
| 12 | 41-7706 | SENSOR - temperature | 1 | |
| 13 | 41-7599 | VALVE - solenoid (water, 24V) | 1 | |
| 14 | 41-4195 | HARNESS - unit display | 1 | |
| 41-4284 | CONNECTOR (6 terminal) | 1 | ||
| 41-4285 | LOCK - terminal | 2 | ||
| 41-4283 | CONNECTOR | 1 | ||
| 41-4899 | CONNECTOR | 1 | ||
| 15 | 55-9720 | CLAMP (0.187 dia) | 1 | |
| 51-357 | CLAMP (0.312 dia) | 3 | ||
| 55-9702 | CLAMP (0.625 dia) | 1 | ||
| 55-9721 | CLAMP (0.875 dia) | 1 | ||
| 55-9311 | CLAMP (1.000 dia) | 1 | ||
| 55-9548 | CLAMP (1.687 dia) | 1 | ||
| 55-1587 | SCREW - clamp | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 16 | 41-4190 | HARNESS - condenser motor (motor 2) | 1 | |
| 41-4921 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 17 | 41-7199 | MODULE - display | 1 | |
| 55-2997 | SCREW - module | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 18 | 41-7706 | SENSOR - temperature | 2 | |
| 19 | 41-8344 | HARNESS - evaporator motor | 1 | |
| 20 | 55-9700 | SCREW - stud | 4 | |
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT - hexstop | 4 | ||
| 21 | 41-7956 | TRANSDUCER - discharge | 1 | |
| 22 | 41-7958 | TRANSDUCER - suction | 1 | |
| 23 | 41-4909 | HARNESS - interface | 1 | |
| 24 | 33-2511 | GROMMET (5/16 id) | 2 | |
| 25 | 41-8442 | HARNESS - J1939 | 1 | |
| 26 | 44-9544 | RECEPTACLE - male (3-pin) | 1 | |
| 41-4817 | CONNECTOR - harness grip | 1 | ||
| 41-5359 | WASHER - sealing | 1 | ||
| 55-2635 | NUT - lock | 1 |
