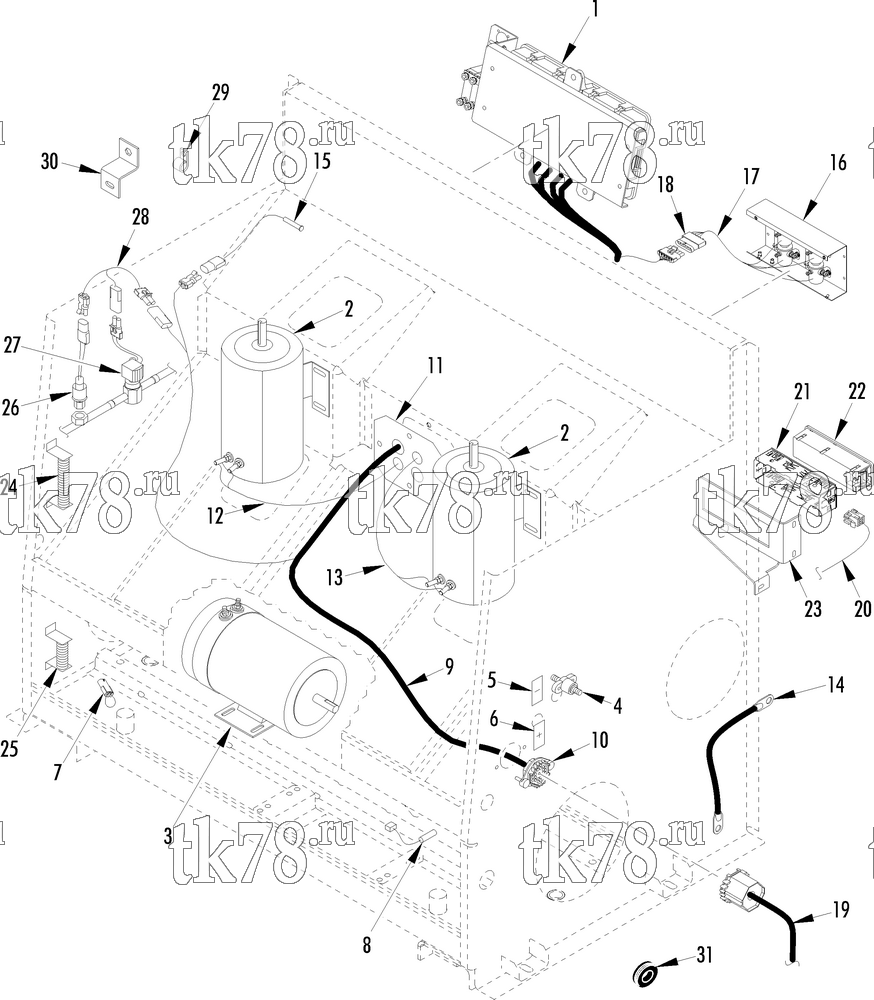

Установкa Thermo King T1-M171 схема ELECTRICAL COMPONENTS – 228C6
Обновление от: 8/22/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | BREAKER - circuit assembly (see 172A2) | 1 | |
| 2 | 104-476 | MOTOR - condenser (see 85G2) | 2 | |
| 3 | 104-323 | MOTOR - evaporator (see 76C1) | 1 | |
| 4 | 55-9551 | STUD - terminal (black) | 1 | |
| 55-9700 | SCREW - stud | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | LOCKNUT | 2 | ||
| 55-671 | NUT - cable | 2 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-3066 | LOCKWASHER | 2 | ||
| 5 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 44-8197 | CONNECTOR - jumper (water pressure switch) | 1 | |
| 8 | 41-7706 | SENSOR - temperature (see 154B13) | 1 | |
| 9 | 41-4920 | HARNESS - main (IntelligAIRE, see 173G9) | 1 | |
| 10 | 44-7829 | CONNECTOR - tower (22-pin, see 115D14) | 1 | |
| 44-7811 | LOCK - secondary | 1 | ||
| 11 | 92-2330 | PLATE - harness connectors | 1 | |
| 55-9307 | CLIP - harness | 4 | ||
| 12 | 41-4901 | HARNESS - condenser motor (1) | 1 | |
| 55-9135 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 13 | 41-4902 | HARNESS - condenser motor (2) | 1 | |
| 55-9034 | CONNECTOR | 1 | ||
| 41-4189 | GASKET - seal (connector) | 1 | ||
| 55-2636 | LOCKNUT | 1 | ||
| 14 | 41-4913 | HARNESS - cable (red) | 1 | |
| 41-4817 | CONNECTOR - cable (liquid tite) | 1 | ||
| 55-2635 | LOCKNUT - connector | 1 | ||
| 41-6729 | HARNESS - single wire (CH, 30 inch) | 1 | ||
| 41-6730 | HARNESS - single wire (CH, 38 inch) | 1 | ||
| 41-6731 | HARNESS - single wire (34A, 90 inch) | 1 | ||
| 41-6732 | HARNESS - single wire (CH, 28 inch) | 1 | ||
| 41-4761 | HARNESS - cable (black) | 1 | ||
| 41-4910 | HARNESS (35) | 1 | ||
| 41-4914 | HARNESS (34A) | 1 | ||
| 41-5437 | HARNESS - single wire (5 in lg) | 1 | ||
| 41-6733 | HARNESS - single wire (34, 23 in) | 1 | ||
| 41-6734 | HARNESS - single wire (34B, 82 in) | 1 | ||
| 41-6735 | HARNESS - single wire (34B, 82 in) | 1 | ||
| 41-6736 | HARNESS - single wire (35A, 11 in) | 1 | ||
| 55-3834 | SCREW - harness | 1 | ||
| 55-2958 | FLATWASHER | 1 | ||
| 55-4954 | NUT | 1 | ||
| 15 | 40-975 | KIT - temperature sensor (see 154B13) | 3 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 40-975 | SENOR - ungraded (18 in, NSS) | 1 | ||
|
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 16 | NSS | PANEL - solenoid (see 146C14) | 1 | |
| 17 | 41-4900 | HARNESS - brush, motors | 1 | |
| 18 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 19 | 41-4909 | HARNESS - interface (for connectors see 115D14) | 1 | |
| 20 | 41-4195 | HARNESS - unit display | 1 | |
| 41-4284 | CONNECTOR (6 terminal) | 1 | ||
| 41-4285 | LOCK - terminal | 1 | ||
| 41-4283 | CONNECTOR (6 terminal) | 1 | ||
| 21 | 41-7199 | MODULE - display | 1 | |
| 22 | 92-1216 | KEY - din panel mounting (before 3/05) | 1 | |
| 92-5199 | KEY - din panel mounting (2/05 & after) | 1 | ||
| 23 | 92-3002 | BRACKET - display | 1 | |
| 55-1587 | SCREW - bracket | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 24 | 44-7131 | RESISTOR - condenser motor (see 162G6) | 1 | |
| 91-5200 | PLATE - resistor | 1 | ||
| 25 | 44-6348 | RESISTOR - evaporator motor (see 162G7) | 1 | |
| 55-1587 | SCREW - resistor | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 26 | 41-2268 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-5853 | SWITCH - only | 1 | ||
| 27 | 66-8900 | VALVE - solenoid | 1 | |
| 66-8901 | COIL - valve | 1 | ||
| 28 | 41-4814 | HARNESS - hot gas control | 1 | |
| 44-5763 | DIODE | 1 | ||
| 29 | 55-2239 | CLAMP (0.375 dia) | 1 | |
| 55-9720 | CLAMP (.187 dia) | 1 | ||
| 51-151 | CLAMP (0.562 dia) | 2 | ||
| 55-9311 | CLAMP (1.000 dia) | 6 | ||
| 55-2991 | SCREW (10-32) | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-1587 | SCREW (1/4-20) | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 30 | 92-5407 | BRACKET - support | 1 | |
| 51-751 | SCREW - bracket | 1 | ||
| 31 | 33-810 | GROMMET (3/4 id) | 1 |
