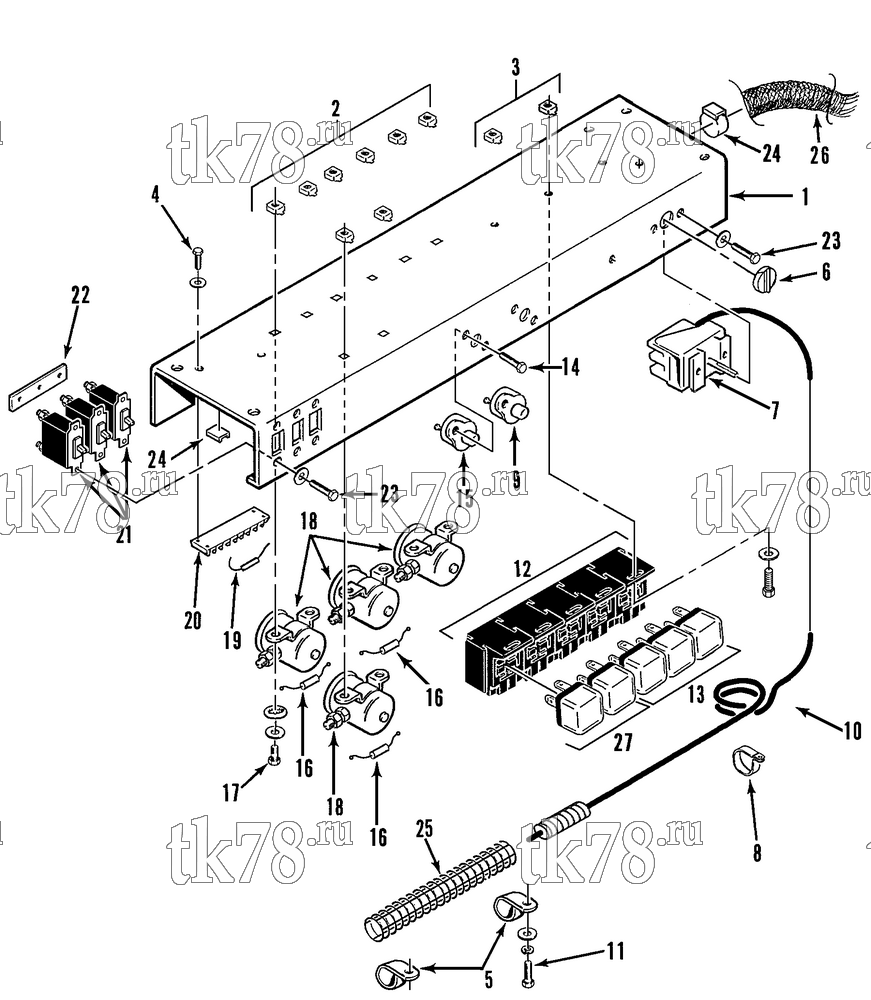

Установкa Thermo King T1-M17, M18, M19, M20, M20A, M20B схема CONTROL PANEL (T1-M17, M18, M19, M20 & M21) – 96A12
Обновление от: 3/24/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2670 | PANEL - control | 1 | |
| 99-7801 | NAMEPLATE - Switch Panel | 1 | ||
| 2 | 55-6826 | NUT - captive (1/4-20) | 8 | |
| 3 | 55-3493 | NUT - captive (10-32) | 2 | |
| 4 | 55-5903 | SCREW - terminal board | 2 | |
| 55-295 | NUT | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 5 | 55-3357 | CLAMP - retainer | 2 | |
| 6 | 44-1222 | KNOB - temperature control | 1 | |
| 7 | 44-6043 | THERMOSTAT - return air | 1 | |
| 8 | 55-546 | CLAMP - thermo bulb | 1 | |
| 9 | 44-7216 | BREAKER - circuit (10 amp) | 1 | |
| 10 | 55-3196 | SCREW - socket | 2 | |
| 55-1511 | LOCKWASHER | 2 | ||
| 55-431 | FLATWASHER | 2 | ||
| 11 | 55-1510 | SCREW - clamp | 3 | |
| 55-1511 | LOCKWASHER | 3 | ||
| 55-431 | FLATWASHER | 3 | ||
| 55-2752 | NUT | 3 | ||
| 12 | 44-5537 | SOCKET - relay | 6 | |
| 13 | 44-9112 | RELAY - mini | 4 | |
| 14 | 55-3196 | SCREW - breaker | 4 | |
| 55-1511 | LOCKWASHER | 4 | ||
| 55-431 | FLATWASHER | 4 | ||
| 55-2752 | NUT | 4 | ||
| 15 | 44-7217 | BREAKER - circuit (15 amp) | 1 | |
| 16 | 44-6007 | DIODE - solenoid | 3 | |
| 17 | 55-145 | SCREW - solenoid | 8 | |
| 55-419 | LOCKWASHER | 8 | ||
| 55-411 | FLATWASHER | 8 | ||
| 18 | 41-3987 | SOLENOID | 4 | |
| 19 | 44-3800 | DIODE - terminal board (assembly) | 3 | |
| 20 | 44-5057 | BOARD - terminal | 1 | |
| 91-809 | MARKSTRIP | 1 | ||
| 21 | 44-5494 | BREAKER - circuit (65 amp) | 3 | |
| 22 | 44-6044 | JUMPER - circuit breaker | 1 | |
| 23 | 55-1466 | SCREW - breaker/thermostat | 8 | |
| 55-3233 | LOCKWASHER | 8 | ||
| 55-1266 | FLATWASHER | 8 | ||
| 24 | 99-9648 | MOUNT - cable tie | 5 | |
| 25 | 99-6851 | RETAINER - bulb | 1 | |
| 26 | 44-7871 | HARNESS - main control (M17, M18, M19, M20) | 1 | |
| 44-7908 | HARNESS - main control (M21) | 1 |
