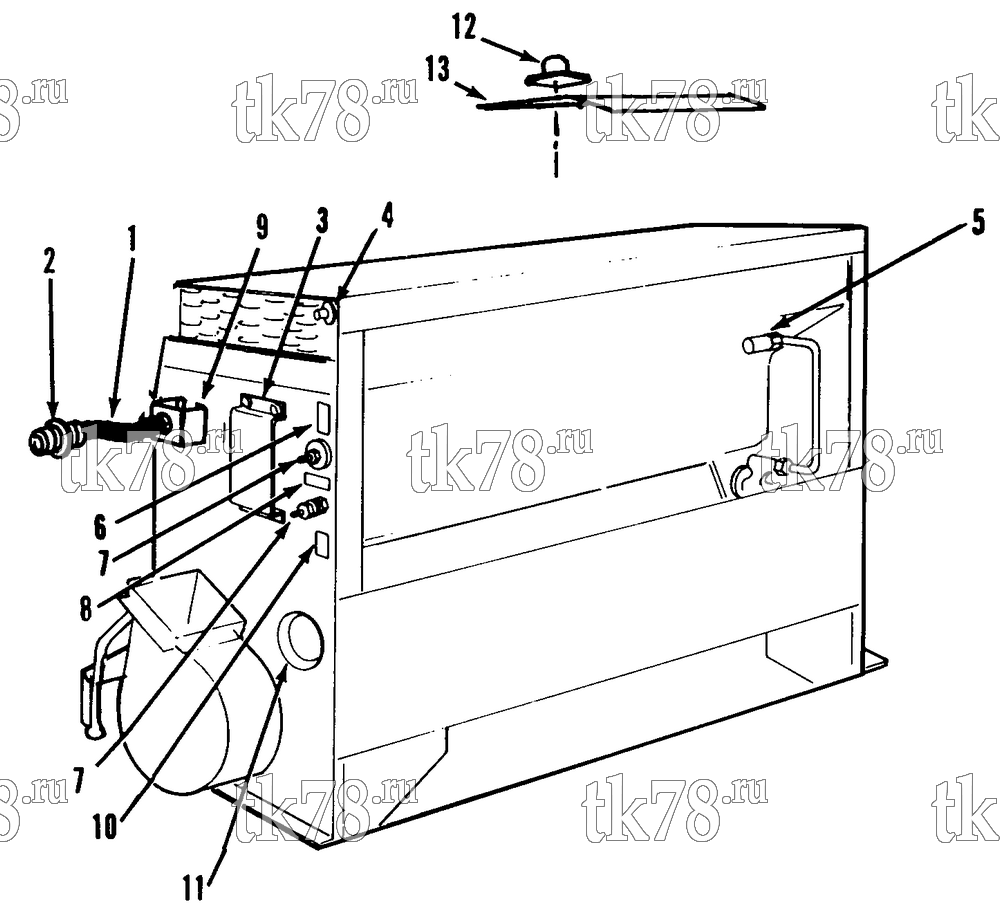

Установкa Thermo King T1-M17, M18, M19, M20, M20A, M20B схема CONTROL HARNESS, TERMINALS, THERMOSTAT FRESH AIR ADAPTER – 85G7
Обновление от: 1/14/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-7809 | HARNESS - control (M16, M24) | 1 | |
| 44-7871 | HARNESS - control (M17, M18, M19, M20) | 1 | ||
| 44-7908 | HARNESS - control (M21) | 1 | ||
| 2 | 44-7829 | CONNECTOR - tower (22-pin) | 1 | |
| 44-7811 | LOCK - connector | 2 | ||
| 44-7812 | PLUG - cavity (green) | 9 | ||
| 3 | 99-6856 | BRACKET - cable holddown | 1 | |
| 4 | 44-6005 | THERMOSTAT - ambient air | 1 | |
| 5 | 44-5833 | SWITCH - high speed condenser motor | 1 | |
| 6 | 99-4660 | NAMEPLATE - Positive | 1 | |
| 7 | 55-3167 | STUD - terminal | 2 | |
| 55-5901 | WASHER - shoulder (polyester) | 1 | ||
| 55-5902 | FLATWASHER (polyester) | 1 | ||
| 55-671 | NUT (brass) | 6 | ||
| 55-448 | FLATWASHER (brass) | 8 | ||
| 55-3066 | LOCKWASHER (brass) | 6 | ||
| 55-3672 | LOCKWASHER (bronze) | 1 | ||
| 8 | 99-2477 | NAMEPLATE - 24 Volt | 1 | |
| 9 | 91-714 | BRACKET - connector | 1 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 10 | 99-4661 | NAMEPLATE - Negative | 1 | |
| 11 | 99-7771 | DUCT - fresh air adapter | 1 | |
| 99-8018 | PLATE - fresh air adapter opening | 1 | ||
| 55-5640 | SCREW - plate | 4 | ||
| 12 | 44-5034 | THERMOSTAT | 1 | |
| 13 | 99-7808 | BRACKET - thermostat | 1 |
