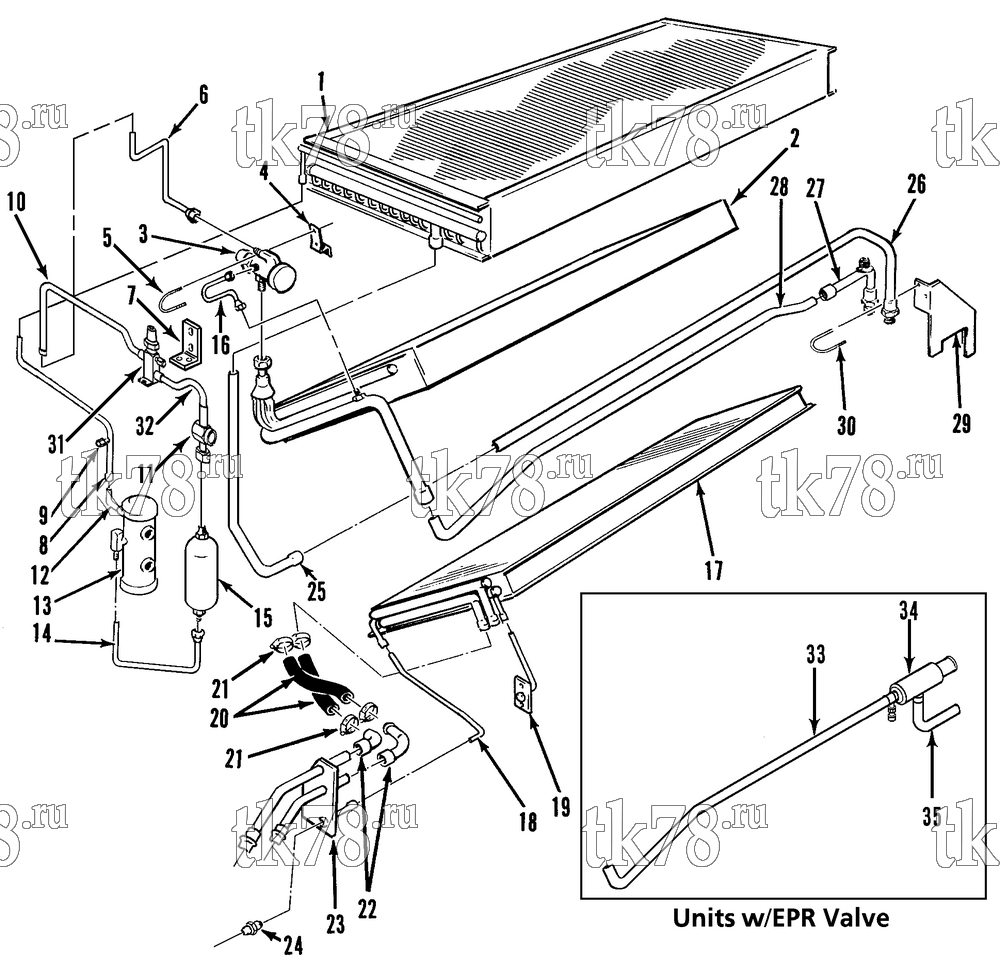

Установкa Thermo King T1-M17, M18, M19, M20, M20A, M20B схема REFRIGERATION COMPONENTS – 85E3
Обновление от: 8/5/08
| № | TK # | Описание | Кол-во Цена |
|---|---|---|---|
| 1 | 67-656 | COIL - condenser | 1 |
| 55-1587 | SCREW - coil | 8 | |
| 55-4953 | LOCKNUT | 8 | |
| 2 | 67-727 | COIL - evaporator | 1 |
| 55-2969 | SCREW - coil | 6 | |
| 55-2958 | FLATWASHER | 6 | |
| 55-4954 | NUT | 6 | |
| 3 | 66-7393 | VALVE - expansion (R22) | 1 |
| 66-4213 | ELEMENT - power | 1 | |
| 66-3592 | SCREEN - inlet | 1 | |
| 66-3577 | VALVE - expansion (R12) | 1 | |
| 66-4212 | ELEMENT - power | 1 | |
| 66-3592 | SCREEN - inlet | 1 | |
| 4 | 99-6877 | BRACKET - expansion valve | 1 |
| 55-3027 | SCREW - bracket | 2 | |
| 55-4560 | NUT | 2 | |
| 5 | 55-5211 | U-BOLT - valve | 1 |
| 55-4560 | LOCKNUT | 2 | |
| 6 | 66-5276 | TUBE | 1 |
| 7 | 91-715 | BRACKET - shutoff valve | 1 |
| 55-1587 | SCREW - bracket | 2 | |
| 55-2086 | FLATWASHER | 4 | |
| 55-4953 | NUT | 2 | |
| 8 | 66-3712 | TUBE - condenser to receiver | 1 |
| 55-3295 | FITTING - saddle | 1 | |
| 9 | 66-7392 | VALVE - relief | 1 |
| 10-66-7392 | Предохранительный клапан | 3 380 ₽ |
| 33-1015 | O-RING - valve | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 260 ₽ | |
| 10 | 66-4958 | TUBE - liquid | 1 |
| 11 | 66-2047 | INDICATOR - liquid | 1 |
| 12 | 55-3248 | ELBOW | 1 |
| 13 | 67-2325 | TANK - receiver (see 83B7) | 1 |
| 55-4955 | LOCKNUT - tank | 2 | |
| 55-2641 | FLATWASHER | 2 | |
| 99-7349 | BRACKET - tank | 2 | |
| 55-2977 | SCREW - bracket | 4 | |
| 55-2086 | FLATWASHER | 4 | |
| 55-4953 | NUT | 4 | |
| 14 | 66-3714 | TUBE - receiver to dehydrator | 1 |
| 33-1809 | GROMMET (1/2 id) | 1 | |
| 15 | 66-4857 | DEHYDRATOR | 1 |
| 55-2365 | HANGER - dehydrator | 2 | |
| 55-2957 | SCREW - hanger | 2 | |
| 55-3675 | SCREW - dehydrator | 2 | |
| 55-2086 | FLATWASHER | 4 | |
| 55-4953 | LOCKNUT | 4 | |
| 16 | 66-3715 | TUBE - equalizer | 1 |
| 17 | 67-657 | COIL - heater | 1 |
| 99-6848 | NUTSTRIP - coil | 4 | |
| 55-3010 | RIVET - strip | 8 | |
| 55-1587 | SCREW - coil | 6 | |
| 55-2086 | FLATWASHER | 6 | |
| 55-1800 | LOCKWASHER | 6 | |
| 33-316 | GROMMET (1 id) | 5 | |
| 33-489 | GROMMET (1-1/4 id) | 2 | |
| 18 | 66-3716 | TUBE - heater drain | 1 |
| 19 | 66-3717 | TUBE - air bleed | 1 |
| 11-2886 | VALVE - air bleed | 1 | |
| 55-5672 | CAP - valve | 1 | |
| 20 | 11-5964 | HOSE (12 in, silicone) | 1 |
| 11-5965 | HOSE (14 in, silicone) | 1 | |
| 21 | 55-5400 | CLAMP - hose | 4 |
| 22 | 66-3718 | TUBE - hose adapter | 2 |
| 23 | 67-661 | TUBE - heater inlet/outlet (M17, M18, M19, M20) | 1 |
| 67-882 | TUBE - heater inlet/outlet (M21) | 1 | |
| 67-659 | TUBE - heater inlet/outlet (M24) | 1 | |
| 99-7876 | NAMEPLATE - Water Inlet | 1 | |
| 33-1484 | GASKET - tube assembly | 1 | |
| 24 | 55-5128 | DRAIN COCK | 1 |
| 25 | 66-3719 | TUBE - coil inlet | 1 |
| 26 | 66-3720 | TUBE - discharge | 1 |
| 55-5355 | ADAPTER - tube | 1 | |
| 33-594 | O-RING | 1 | |
| 27 | 66-3721 | TUBE - suction | 1 |
| 55-4185 | ADAPTER - tube | 1 | |
| 33-544 | O-RING | 1 | |
| 55-621 | CAP (1/2 fl) | 1 | |
| 55-2070 | GASKET - flare (1/2) | 1 | |
| 33-489 | GROMMET (1-1/4 id) | 1 | |
| 28 | 66-3722 | TUBE - suction crossover | 1 |
| 29 | 99-6847 | BRACKET - suction/discharge | 1 |
| 55-2977 | SCREW - bracket | 4 | |
| 55-4953 | LOCKNUT | 4 | |
| 30 | 55-5122 | U-BOLT - suction | 1 |
| 55-4397 | U-BOLT - discharge | 1 | |
| 55-4953 | NUT - u-bolt | 4 | |
| 99-9019 | PLATE - suction tube clamping | 1 | |
| 31 | 66-4694 | VALVE - shutoff | 1 |
| 66-2170 | CAP - valve | 1 | |
| 55-3843 | SCREW - valve | 2 | |
| 55-2001 | FLATWASHER | 4 | |
| 55-4560 | NUT | 2 | |
| 32 | 66-4959 | TUBE - indicator to valve | 1 |
| 33 | 66-5762 | TUBE - epr to valve | 1 |
| 34 | 66-2122 | VALVE - epr | 1 |
| 35 | 66-5761 | TUBE - epr valve | 1 |
