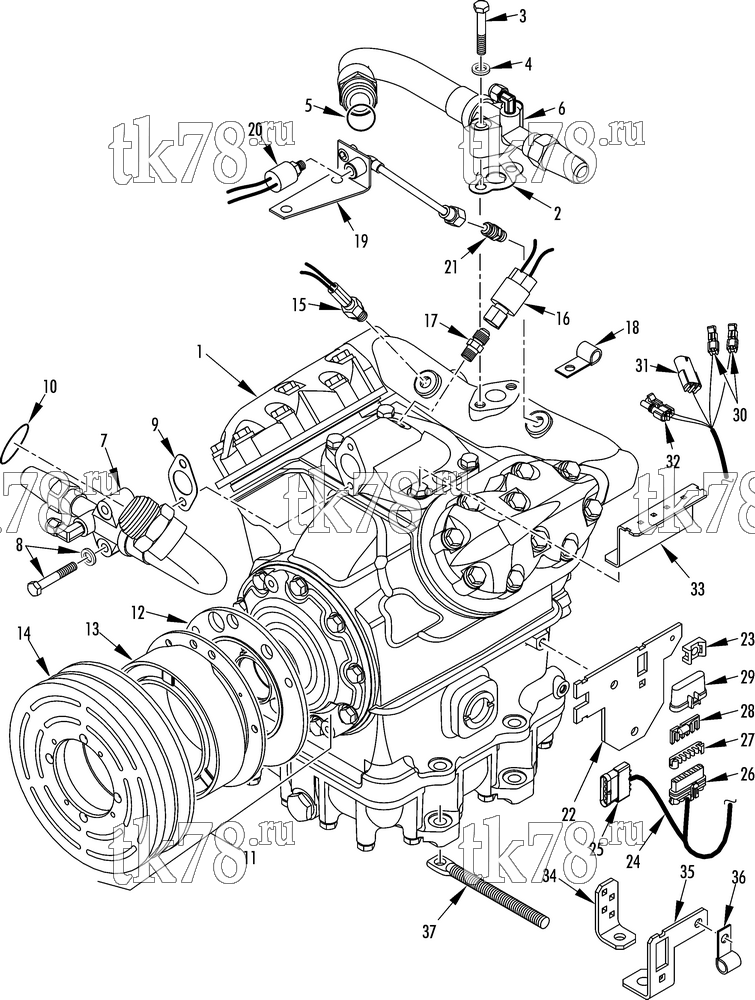

Установкa Thermo King T1-M147 схема COMPRESSOR GROUP (1E05611G07, KIT 720261) – 205B8
Обновление от: 1/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-916 | COMPRESSOR - X426 C5 (bus, see 230C5) | 1 | |
| 8102-916 | COMPRESSOR - X426 (remanufactured) | 1 | ||
| 2 | 33-2805 | GASKET - discharge valve | 3 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 3 | 55-6776 | SCREW - discharge valve | 2 | |
| 4 | 55-6804 | WASHER - sealing | 2 | |
| 5 | 33-1785 | O-RING | 1 | |
| 6 | 61-1717 | TUBE & VALVE - discharge (see 176C0) | 1 | |
| 7 | 61-1718 | TUBE & VALVE - suction (see 176C9) | 1 | |
| 8 | 55-201 | SCREW - suction valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 9 | 33-2541 | GASKET - suction valve | 2 | |
| 10 | 33-1777 | O-RING | 1 | |
| 11 | 107-192 | KIT - clutch drive repair (see 153E8) | 1 | |
| 12 | 77-1083 | PLATE | 1 | |
| 13 | 45-1965 | FIELD - clutch (24V, internally wired) | 1 | |
| 14 | 77-1672 | PULLEY (2-5V grooves, 7.75 in od) | 1 | |
| 15 | 41-3345 | SENSOR - assembly (for connectors see 115D14) | 1 | |
| 16 | 41-4558 | SWITCH - lpco (for connectors see 115D14) | 11 | |
| 41-4559 | SWITCH - only | 1 | ||
| 17 | 55-459 | COUPLING | 1 | |
| 33-768 | GASKET - coupling | 1 | ||
| 18 | 55-9298 | CLAMP - harness (0.187 dia) | 2 | |
| 55-3102 | CLAMP - harness (0.312 dia) | 1 | ||
| 19 | 91-8288 | BRACKET & TUBE | 1 | |
| 20 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 21 | 11-2886 | VALVE - pressure (see 119G12) | 1 | |
| 22 | 92-5945 | BRACKET - compressor harness (after 3/06) | 1 | |
| 55-3834 | SCREW - bracket | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 41-1787 | COVER - connector | 1 | ||
| 23 | 99-3281 | MOUNT - cable tie | 1 | |
| 55-2864 | RIVET - mount | 1 | ||
| 55-2641 | FLATWASHER | 1 | ||
| 55-4955 | NUT | 1 | ||
| 24 | 41-4810 | HARNESS - compressor | 1 | |
| 25 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 26 | 41-1789 | CONNECTOR - tower (6-pin) | 1 | |
| 27 | 41-1790 | LOCK - secondary (6-pin connector) | 1 | |
| 28 | 41-4280 | DIODE | 1 | |
| 29 | 41-1787 | COVER - connector | 1 | |
| 30 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 31 | 44-5845 | CONNECTOR (2 terminal) | 1 | |
| 32 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 33 | 92-5946 | BRACKET - compressor harness (after 3/06) | 1 | |
| 34 | 92-5596 | BRACKET - compressor (before 4/06) | 1 | |
| 35 | 92-1743 | BRACKET - compressor harness (before 4/06) | 1 | |
| 55-2961 | SCREW - bracket | 1 | ||
| 55-2641 | FLATWASHER | 1 | ||
| 55-4955 | NUT | 1 | ||
| 36 | 55-9701 | CLAMP - harness (before 4/06) | 2 | |
| 55-2957 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-2953 | NUT | 2 | ||
| 37 | 92-6965 | EYEBOLT | 2 | |
| 55-399 | WASHER - special (15/32) | 4 |
