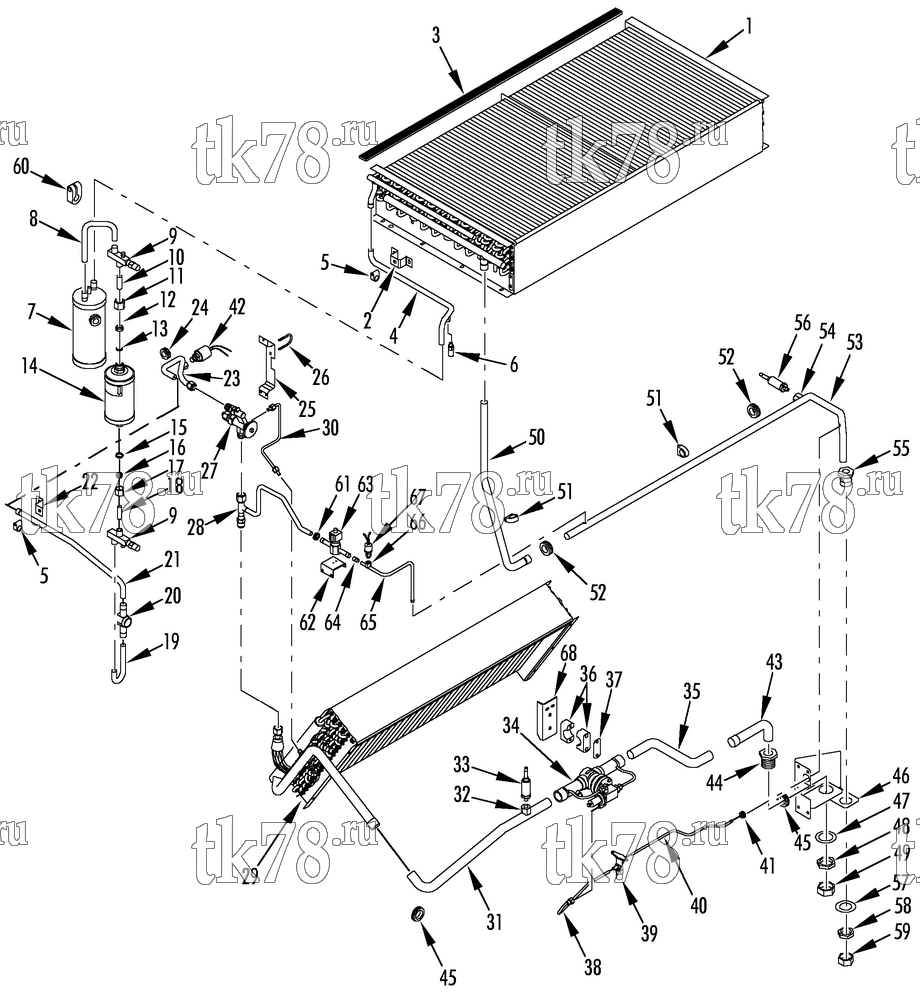

Установкa Thermo King T1-M139 схема REFRIGERATION COMPONENTS – 220H8
Обновление от: 1/15/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1940 | COIL - condenser | 1 | |
| 55-2957 | SCREW - coil | 11 | ||
| 55-1800 | LOCKWASHER | 11 | ||
| 55-2086 | FLATWASHER | 11 | ||
| 55-8711 | INSERT | 3 | ||
| 2 | 92-2948 | BRACKET - clamp | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 3 | 99-5966 | STRIP - sealing (50 ft) | A/R | |
| 4 | 61-2172 | TUBE - coil to receiver tank | 1 | |
| 5 | 91-758 | CLAMP - tube | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 6 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 7 | 61-225 | TANK - receiver (see 183F5) | 1 | |
| 8 | 61-2171 | TUBE - receiver tank to valve | 1 | |
| 9 | 66-7899 | VALVE - shutoff | 2 | |
| 55-2963 | SCREW - valve | 2 | ||
| 55-2959 | FLATWASHER | 2 | ||
| 55-3045 | LOCKWASHER | 2 | ||
| 10 | 66-7332 | TUBE - valve to dehydrator | 1 | |
| 11 | 55-6396 | NUT - shoulder | 1 | |
| 12 | 55-6356 | SHOULDER - o-ring | 1 | |
| 13 | 33-2115 | O-RING - dehydrator (5/8) | 1 | |
| 14 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 15 | 33-566 | O-RING - dehydrator (1/2) | 1 | |
| 16 | 55-6837 | SHOULDER - o-ring | 1 | |
| 17 | 55-6838 | NUT - shoulder | 1 | |
| 18 | 66-7666 | TUBE - dehydrator to valve | 1 | |
| 55-2182 | BUSHING - tube to valve | 1 | ||
| 19 | 61-2209 | TUBE - valve to sight glass | 1 | |
| 20 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 21 | 61-2210 | TUBE - indicator to bulkhead | 1 | |
| 22 | 92-2930 | BRACKET - support | 1 | |
| 55-2977 | SCREW - bracket | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 23 | 61-2173 | TUBE - bulkhead to expansion valve | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 24 | 33-810 | GROMMET | 1 | |
| 25 | 91-8284 | BRACKET - expansion valve | 1 | |
| 55-2991 | SCREW - bracket | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-4560 | NUT | 3 | ||
| 26 | 55-6788 | U-BOLT - expansion valve | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 27 | 66-5952 | VALVE - expansion | 1 | |
| 66-4213 | ELEMENT | 1 | ||
| 61-438 | SCREEN - inlet | 1 | ||
| 92-2016 | INSULATION - thermo bulb | A/R | ||
| 28 | 66-8902 | TUBE - solenoid valve | 1 | |
| 66-620 | TEE | 1 | ||
| 29 | 67-727 | COIL - evaporator (see 183G2 or 200B9) | 1 | |
| 30 | 66-8896 | TUBE - equalizer | 1 | |
| 31 | 61-3951 | TUBE - coil to epr valve | 1 | |
| 32 | 66-3570 | FITTING - saddle | 1 | |
| 33 | 41-7958 | TRANSDUCER - pressure, suction | 1 | |
| 34 | 66-5136 | VALVE - epr (R22, see 129C13) | 1 | |
| 55-3309 | BUSHING - EPR valve | 2 | ||
| 35 | 61-2205 | TUBE - epr valve to tube | 1 | |
| 36 | 55-6020 | CLAMP - suction tube | 2 | |
| 37 | 91-4613 | PLATE - clamp | 2 | |
| 55-3344 | SCREW - clamp | 4 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 38 | 61-2207 | TUBE - epr valve to hand valve | 1 | |
| 39 | 66-4102 | VALVE - shutoff | 1 | |
| 55-3843 | SCREW - valve | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 40 | 61-2206 | TUBE - valve to discharge tube | 1 | |
| 41 | 33-1692 | GROMMET (3/8 id, 3/16 groove) | 1 | |
| 42 | 44-6349 | SWITCH - condenser fan (for connectors see 115D14) | 1 | |
| 44-6427 | SWITCH - only | 1 | ||
| 43 | 61-1716 | TUBE - suction | 1 | |
| 44 | 55-7537 | ADAPTER - bulkhead | 1 | |
| 45 | 33-489 | GROMMET - suction tube | 2 | |
| 46 | 92-2931 | BRACKET - tube | 1 | |
| 47 | 33-1777 | O-RING - suction | 1 | |
| 48 | 55-5742 | LOCKWASHER | 1 | |
| 49 | 55-9231 | NUT - bulkhead | 1 | |
| 50 | 61-2918 | TUBE - coil inlet | 1 | |
| 51 | 55-7013 | CLAMP - tube | 2 | |
| 55-3095 | SCREW - clamp | 1 | ||
| 55-2086 | SCREW - clamp | 2 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 52 | 33-316 | GROMMET - tube | 2 | |
| 53 | 61-3952 | TUBE - discharge | 1 | |
| 54 | 66-4553 | FITTING - saddle | 1 | |
| 55 | 66-6840 | ADAPTER - bulkhead | 1 | |
| 33-2789 | WASHER - sealing (brass) | 1 | ||
| 56 | 41-7956 | TRANSDUCER - pressure, discharge | 1 | |
| 57 | 33-1785 | O-RING - discharge | 1 | |
| 58 | 55-5741 | LOCKWASHER | 1 | |
| 59 | 55-7111 | NUT - bulkhead | 1 | |
| 60 | 91-372 | CLAMP - tube | 1 | |
| 55-3462 | SCREW - clamp | 1 | ||
|
20-55-3462 | Болт | 600 ₽ |
|
| 61 | 33-428 | GROMMET (1/2 in id) | 2 | |
| 62 | 92-4727 | BRACKET - solenoid | 1 | |
| 55-3027 | SCREW - bracket | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-6554 | INSERT | 1 | ||
| 63 | 66-8900 | VALVE - solenoid | 1 | |
| 66-8901 | COIL - valve (for connectors see 115D14) | 1 | ||
| 91-8285 | SPACER - coil (bottom) | 1 | ||
| 91-8286 | SPACER - coil (top) | 1 | ||
| 55-4523 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 64 | 55-1804 | BUSHING | 1 | |
| 65 | 66-8899 | TUBE - discharge to bushing | 1 | |
| 11-7777 | FITTING - hpco (Schrader valve) | 1 | ||
| 67 | 41-2268 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-5853 | SWITCH - only | 1 | ||
| 68 | 92-5276 | BRACKET - EPR valve | 1 | |
| 55-3344 | SCREW - bracket | 2 | ||
|
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-1800 | LOCKWASHER | 2 |
