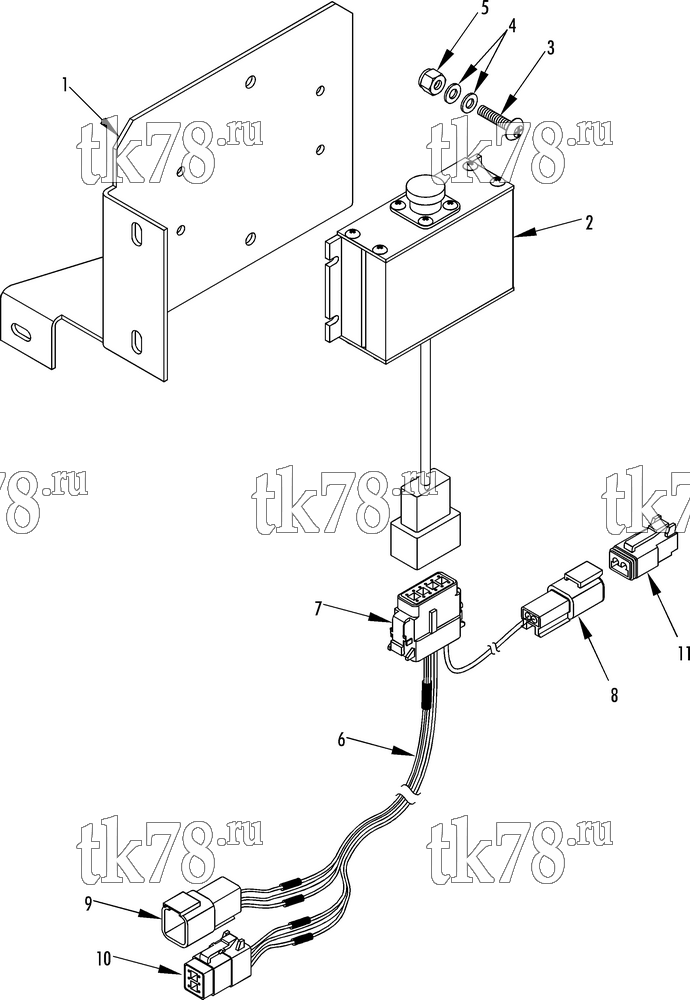

Установкa Thermo King T1-M139 схема GATEWAY MODULE KIT (800222) – 220H6
Обновление от: 10/3/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-6194 | BRACKET - Gateway module | 1 | |
| 2 | 41-7740 | MODULE - Gateway (J193) | 1 | |
| 3 | 51-2082 | SCREW - module | 4 | |
| 4 | 55-2201 | FLATWASHER | 8 | |
| 5 | 55-4223 | NUT | 4 | |
| 6 | 41-7741 | HARNESS - Gateway | 1 | |
| 7 | 41-7742 | CONNECTOR - plug (12 contactor) | 1 | |
| 41-7743 | LOCK (12 socket) | 1 | ||
| 8 | 41-7738 | CONNECTOR (2-pin) | 1 | |
| 41-7739 | WEDGE | 1 | ||
| 9 | 41-4281 | CONNECTOR - female (6-pin) | 1 | |
| 41-4282 | WEDGE | 1 | ||
| 10 | 41-4283 | CONNECTOR - male (6-pin) | 1 | |
| 41-4899 | WEDGE | 1 | ||
| 11 | 41-7744 | CONNECTOR - male (2-pin) | 1 |
