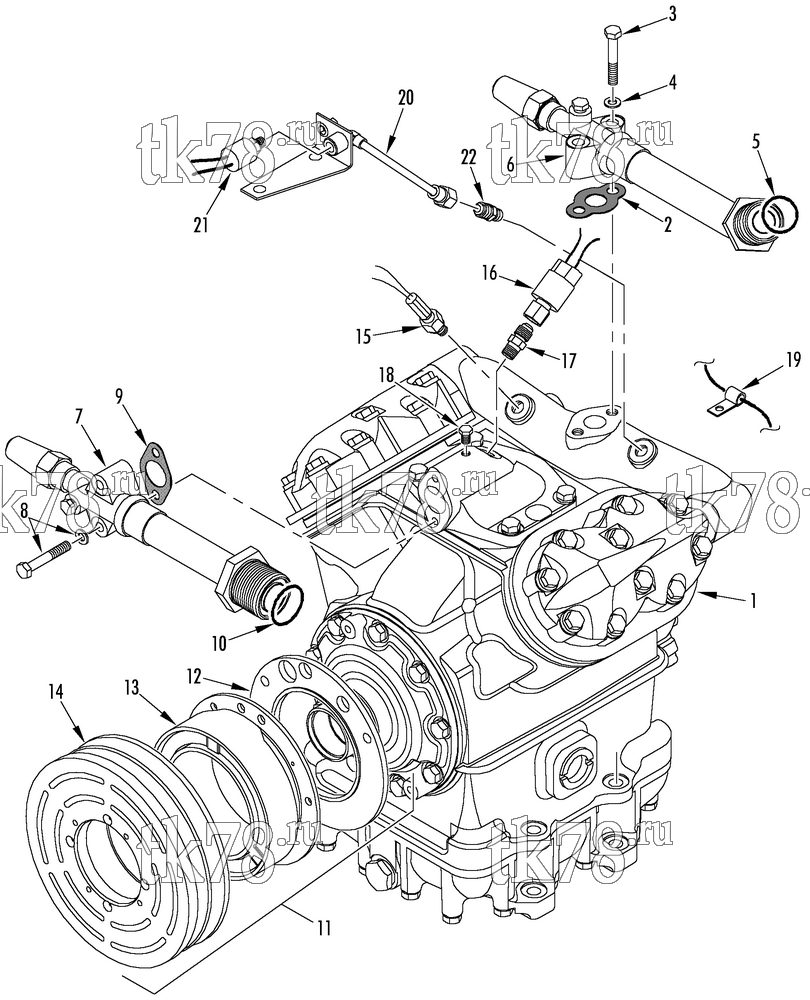

Установкa Thermo King T1-M129 схема COMPRESSOR GROUP (5D37227G42, KIT 700289) – 209D8
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-916 | COMPRESSOR - X426 C5 (bus, see 230C5) | 1 | |
| 8102-916 | COMPRESSOR - X426 (reman, dry) | 1 | ||
| 2 | 33-2805 | GASKET - discharge valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 3 | 55-6776 | SCREW - discharge valve | 2 | |
| 4 | 55-6804 | WASHER - sealing | 2 | |
| 5 | 33-594 | O-RING - discharge | 1 | |
| 6 | 66-9406 | TUBE & VALVE - discharge (see 151B5) | 1 | |
| 7 | 66-9404 | TUBE & VALVE - suction (see 151B4) | 1 | |
| 8 | 55-201 | SCREW - suction valve | 2 | |
| 55-895 | FLATWASHER | 2 | ||
| 9 | 33-2541 | GASKET - suction valve | 1 | |
| 9 | 33-544 | O-RING - suction | 1 | |
| 11 | NSS | CLUTCH - assembly | 1 | |
| 107-150 | KIT - clutch drive repair (see 153E7) | 1 | ||
| 12 | 77-1083 | PLATE | 1 | |
| 13 | 45-2031 | FIELD - clutch (24VDC, w/ 2-pin tower connectors) | 1 | |
| 14 | 77-2148 | PULLEY (2-5V grooves, 9.0 in od) | 1 | |
| 15 | 41-3345 | SENSOR (yellow band, for connectors see 115D14) | 1 | |
| 41-5394 | SENSOR - only | 1 | ||
| 16 | 41-2235 | SWITCH - lpco (for connectors see 115D14) | 1 | |
| 44-4258 | SWITCH - only | 1 | ||
| 17 | 55-459 | COUPLING | 1 | |
| 33-768 | GASKET - coupling | 1 | ||
| 18 | 55-433 | PLUG - pipe | 1 | |
| 19 | 55-5261 | CLAMP - harness (0.187 dia) | 2 | |
| 55-4383 | CLAMP - harness (0.312 dia) | 2 | ||
| 20 | 91-8288 | BRACKET & TUBE | 1 | |
| 21 | 41-2266 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 304-752 | SWITCH - only | 1 | ||
| 22 | 11-2886 | VALVE - pressure (see 119G12) | 1 |
