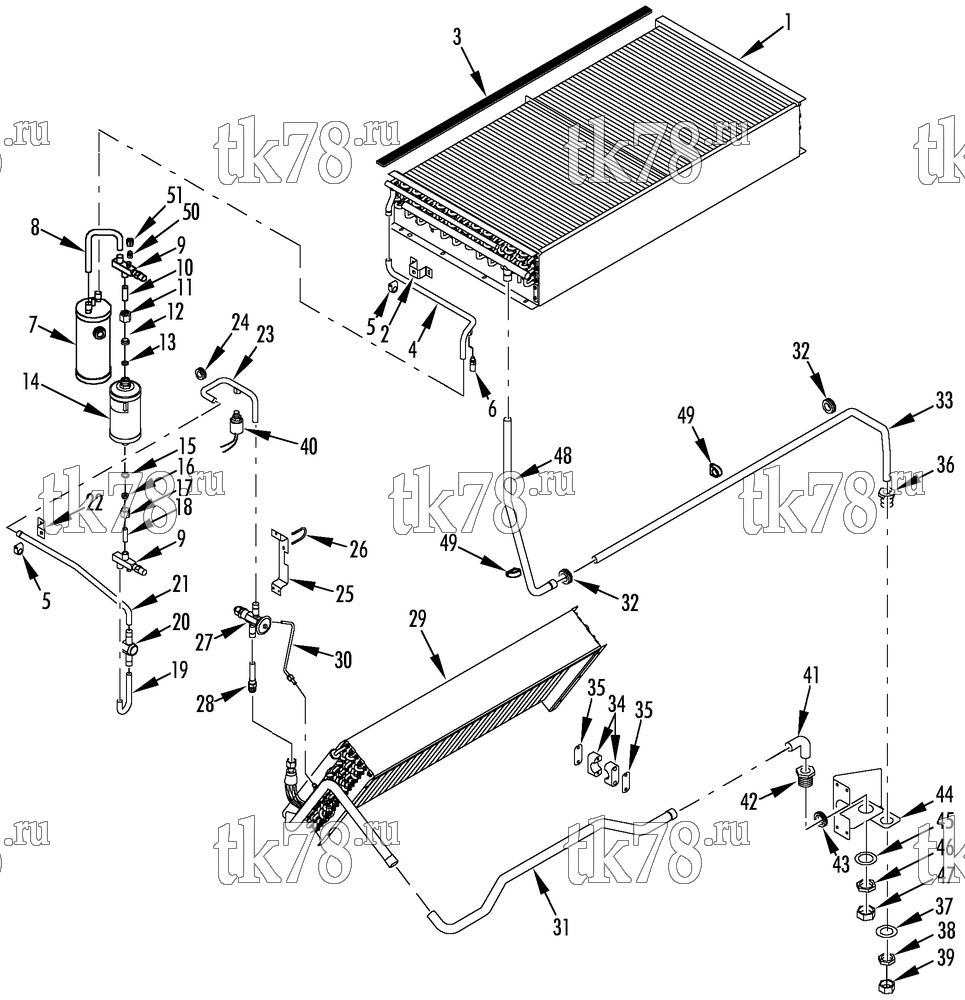

Установкa Thermo King T1-M106 схема REFRIGERATION COMPONENTS – 197A1
Обновление от: 1/10/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2082 | COIL - condenser | 1 | |
| 55-2957 | SCREW - coil | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-8711 | INSERT | 8 | ||
| 2 | 92-2948 | BRACKET - clamp | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 3 | 99-5966 | STRIP - sealing (50 ft) | A/R | |
| 4 | 61-2172 | TUBE - coil to receiver tank | 1 | |
| 5 | 91-758 | CLAMP - tube | 2 | |
| 55-3675 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 6 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 7 | 61-225 | TANK - receiver (see 183F5) | 1 | |
| 8 | 61-2171 | TUBE - receiver tank to valve | 1 | |
| 9 | 66-7899 | VALVE - shutoff | 2 | |
| 55-2963 | SCREW - valve | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-3045 | LOCKWASHER | 2 | ||
| 10 | 66-7332 | TUBE - valve to dehydrator | 1 | |
| 11 | 55-6396 | NUT - shoulder | 1 | |
| 12 | 55-6356 | SHOULDER - o-ring | 1 | |
| 13 | 33-2115 | O-RING - dehydrator (5/8) | 1 | |
| 14 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 15 | 33-566 | O-RING - dehydrator (1/2) | 1 | |
| 16 | 55-6837 | SHOULDER - o-ring | 1 | |
| 17 | 55-6838 | NUT - shoulder | 1 | |
| 18 | 66-7666 | TUBE - dehydrator to valve | 1 | |
| 55-2182 | BUSHING - tube to valve | 1 | ||
| 19 | 61-2209 | TUBE - valve to sight glass | 1 | |
| 20 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 21 | 61-2210 | TUBE - indicator to bulkhead | 1 | |
| 22 | 92-2930 | BRACKET - support | 1 | |
| 55-2977 | SCREW - bracket | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 23 | 61-2959 | TUBE - bulkhead to expansion valve | 1 | |
| 66-4139 | FITTING - saddle | 1 | ||
| 24 | 33-810 | GROMMET | 1 | |
| 25 | 91-8284 | BRACKET - expansion valve | 1 | |
| 55-2991 | SCREW - bracket | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-4560 | NUT | 3 | ||
| 26 | 55-6788 | U-BOLT - expansion valve | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 27 | 61-2960 | VALVE - expansion | 1 | |
| 66-4213 | ELEMENT | 1 | ||
| 61-438 | SCREEN - inlet | 1 | ||
| 92-2016 | INSULATION - thermo bulb | A/R | ||
| 28 | 61-2961 | TUBE - expansion valve to distributor | 1 | |
| 29 | 67-2083 | COIL - evaporator (see 193H5) | 1 | |
| 30 | 61-6554 | TUBE - equalizer | 1 | |
| 31 | 61-2707 | TUBE - coil to suction tube | 1 | |
| 55-3309 | BUSHING - EPR valve | 2 | ||
| 32 | 33-2023 | GROMMET - tube | 2 | |
| 33 | 61-2962 | TUBE - discharge | 1 | |
| 34 | 55-6554 | CLAMP - suction tube | 2 | |
| 35 | 91-2707 | PLATE - clamp | 2 | |
| 55-3344 | SCREW - clamp | 4 | ||
|
20-55-3344 | Болт | 520 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 36 | 55-7832 | ADAPTER - bulkhead | 1 | |
| 37 | 33-920 | O-RING - discharge | 1 | |
| 38 | 55-5999 | LOCKWASHER | 1 | |
| 39 | 55-9422 | NUT - bulkhead | 1 | |
| 40 | 41-5764 | SWITCH - condenser fan (for connectors see 115D14) | 1 | |
| 41-307 | SWITCH - only | 1 | ||
| 41 | 66-602 | TUBE - suction | 1 | |
| 42 | 55-7381 | ADAPTER - bulkhead | 1 | |
| 43 | 33-489 | GROMMET - suction tube | 1 | |
| 44 | 92-4372 | BRACKET - tube | 1 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 45 | 33-1777 | O-RING - suction | 1 | |
| 46 | 55-5742 | LOCKWASHER | 1 | |
| 47 | 55-9231 | NUT - bulkhead | 1 | |
| 48 | 61-2963 | TUBE - coil inlet | 1 | |
| 49 | 55-3234 | CLAMP - tube | 2 | |
| 55-1587 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 50 | 66-8086 | FITTING - refrigerant | 1 | |
| 51 | 66-7182 | CAP - fitting | 1 |
