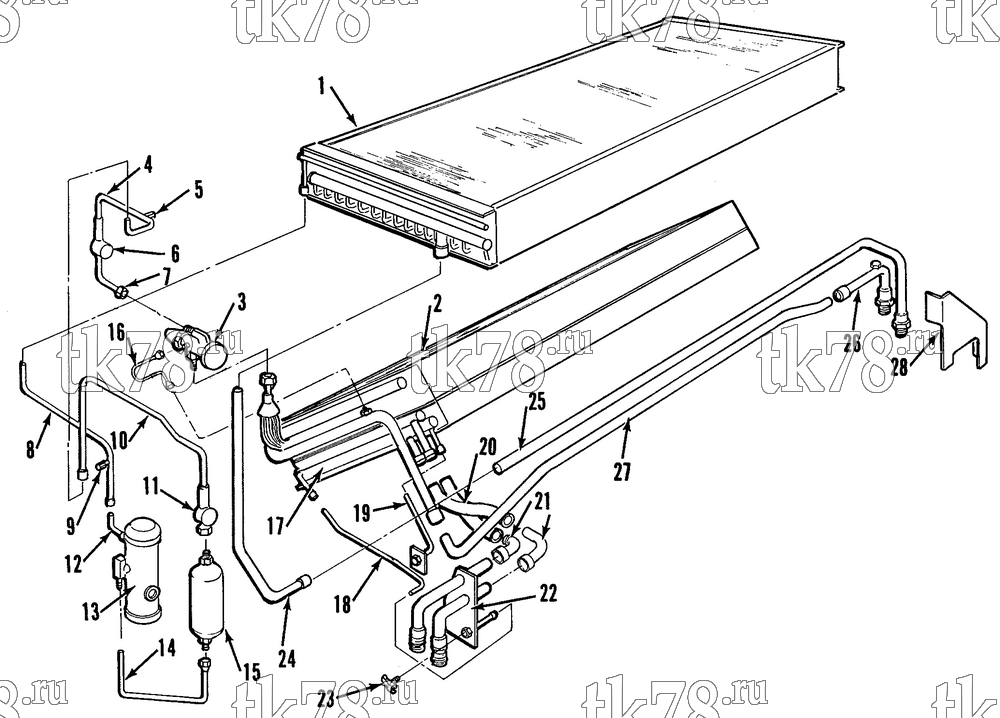

Установкa Thermo King T1-M1, M2, M3 схема REFRIGERATION COMPONENTS – 55G1
Обновление от: 3/8/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-656 | COIL - condenser | 1 | |
| 55-1587 | SCREW | 8 | ||
| 55-4953 | NUT | 8 | ||
| 2 | 67-727 | COIL - evaporator | 1 | |
| 3 | 66-7393 | VALVE - expansion | 1 | |
| 66-3592 | SCREEN - inlet | 1 | ||
| 66-4213 | ELEMENT - power | 1 | ||
| 99-6877 | BRACKET - expansion valve | 1 | ||
| 55-5211 | U-CLAMP | 1 | ||
| 55-4560 | NUT | 2 | ||
| 4 | 66-3709 | TUBE - sight glass | 1 | |
| 6 | 66-1188 | INDICATOR - liquid | 1 | |
| 7 | 66-3711 | TUBE | 1 | |
| 55-302 | NUT | 1 | ||
| 8 | 66-3712 | TUBE - condenser to receiver | 1 | |
| 55-3295 | FITTING | 1 | ||
| 9 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 10 | 66-3713 | TUBE | 1 | |
| 11 | 66-2047 | INDICATOR | 1 | |
| 12 | 55-3248 | ELBOW | 1 | |
| 13 | 67-837 | TANK - receiver | 1 | |
| 55-4953 | NUT | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 99-7349 | BRACKET - tank | 2 | ||
| 55-2977 | SCREW | 4 | ||
| 14 | 66-3714 | TUBE - receiver to dehydrator | 1 | |
| 15 | 66-4857 | DEHYDRATOR | 1 | |
| 55-2365 | HANGER | 2 | ||
| 55-3675 | SCREW - dehydrator | 2 | ||
| 55-2957 | SCREW - hanger | 2 | ||
| 55-4953 | NUT | 4 | ||
| 16 | 66-3715 | TUBE - equalizer | 1 | |
| 17 | 67-657 | COIL - heater | 1 | |
| 99-6848 | NUTSTRIP - coil | 4 | ||
| 55-3010 | RIVET | 8 | ||
| 55-1587 | SCREW - coil | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 33-316 | GROMMET | 2 | ||
| 18 | 66-3716 | TUBE - heater drain | 1 | |
| 66-2672 | ADAPTER | 1 | ||
| 19 | 66-3717 | TUBE - air bleed | 1 | |
| 11-2886 | VALVE - air bleed | 1 | ||
| 11-7777 | CORE | 1 | ||
| 55-5672 | CAP | 1 | ||
| 20 | 12-398 | HOSE - water (25 ft) | A/R | |
| 55-5400 | CLAMP - hose | 4 | ||
| 21 | 66-3718 | TUBE - adapter | 2 | |
| 22 | 67-659 | TUBE | 1 | |
| 33-1484 | GASKET - tube assembly | 1 | ||
| 23 | 55-5128 | DRAIN COCK | 1 | |
| 66-2672 | ADAPTER | 1 | ||
| 24 | 66-3719 | TUBE - coil inlet | 1 | |
| 25 | 66-3720 | TUBE - discharge | 1 | |
| 33-594 | O-RING (7/8 id) | 1 | ||
| 55-5355 | ADAPTER - tube | 1 | ||
| 26 | 66-3721 | TUBE - suction | 1 | |
| 55-4185 | ADAPTER - tube | 1 | ||
| 66-1843 | ADAPTER (1/2 flare) | 1 | ||
| 33-544 | O-RING (1-3/16 id) | 1 | ||
| 55-621 | NUT | 1 | ||
| 55-2070 | GASKET - flare | 1 | ||
| 33-489 | GROMMET | 1 | ||
| 55-2070 | GASKET - flare | 1 | ||
| 33-489 | GROMMET | 1 | ||
| 27 | 66-3722 | TUBE - crossover | 1 | |
| 28 | 99-6847 | BRACKET - suction & discharge | 1 | |
| 55-2977 | SCREW | 4 | ||
| 55-4953 | NUT | 4 | ||
| 55-5122 | U-BOLT - suction | 1 | ||
| 55-4397 | U-BOLT - discharge | 1 | ||
| 55-4953 | NUT - u-bolt | 4 |
