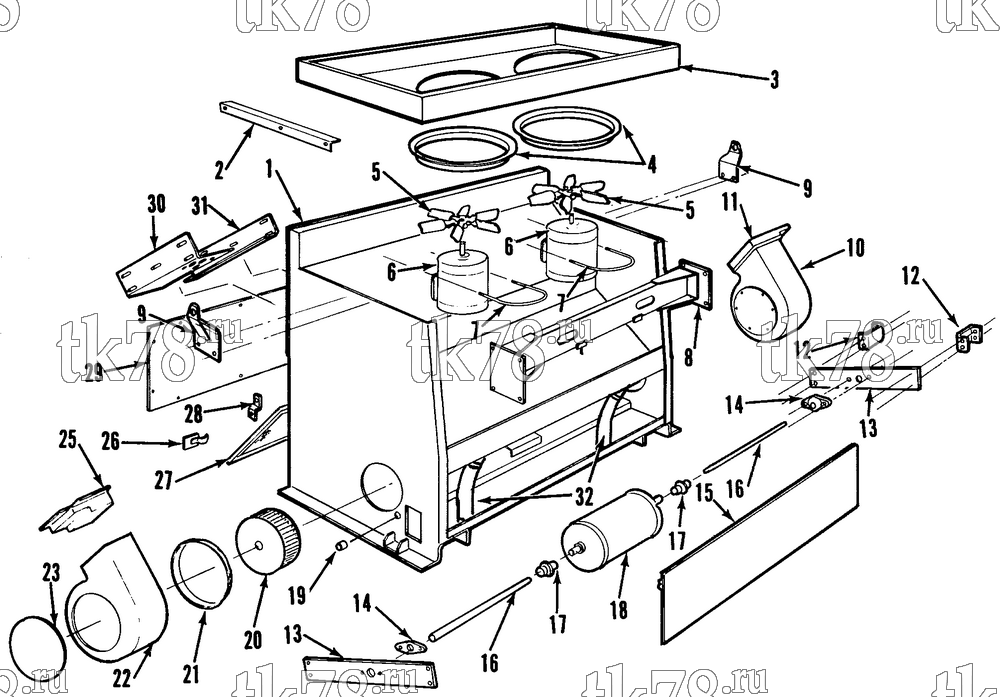

Установкa Thermo King T1-M1, M2, M3 схема STRUCTURAL COMPONENTS - MOTORS & FANS – 55F11
Обновление от: 1/17/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-2376 | FRAME - assembly | 1 | |
| 2 | 99-6860 | ANGLE - coil support | 2 | |
| 55-2683 | SCREW | 6 | ||
| 55-4955 | NUT | 6 | ||
| 3 | 98-3599 | PLENUM | 1 | |
| 99-6141 | NAMEPLATE - Caution Fan | 4 | ||
| 55-1587 | SCREW | 11 | ||
| 55-4953 | NUT | 11 | ||
| 4 | 98-2357 | ORIFICE | 2 | |
| 55-1587 | SCREW | 12 | ||
| 55-3045 | WASHER | 12 | ||
| 5 | 78-533 | FAN - condenser | 2 | |
| 6 | 104-344 | MOTOR (see note) | 2 | |
| 44-4435 | BRUSH (set of 4) | 1 | ||
| 77-1498 | BEARING | 1 | ||
| 77-1106 | BEARING (drive end) | 1 | ||
| 33-1087 | SEAL | 1 | ||
| 44-6004 | RESISTOR | 2 | ||
| 99-9084 | NAMEPLATE - arrow | 2 | ||
| 99-6861 | NUTSTRIP - motor | 4 | ||
| 55-3035 | RIVET - blind | 8 | ||
| 55-2969 | SCREW - motor | 8 | ||
| 55-2959 | LOCKWASHER | 8 | ||
| 55-4727 | WASHER - special | 8 | ||
| 7 | 99-6862 | U-BOLT | 2 | |
| 55-2641 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 4 | ||
| 8 | 98-2412 | BRACKET - motor | 1 | |
| 55-2683 | SCREW - bracket | 6 | ||
| 55-5721 | SCREW - button head | 2 | ||
| 55-2641 | FLATWASHER | 6 | ||
| 55-4931 | SPACER | 4 | ||
| 55-4955 | LOCKNUT | 8 | ||
| 9 | 91-7707 | BRACKET - lifting | 2 | |
| 10 | 98-2413 | HOUSING - blower (right) | 1 | |
| 99-6864 | INSULATOR - housing (inside) | 1 | ||
| 99-6865 | INSULATOR - housing (outside) | 1 | ||
| 99-6866 | INSULATOR - housing (peripheral) | 1 | ||
| 11 | 98-2414 | ADAPTER - outlet | 1 | |
| 55-3035 | RIVET - adapter | 4 | ||
| 99-6867 | SPACER - adapter | 1 | ||
| 55-2979 | SCREW - housing | 3 | ||
| 55-4953 | NUT | 3 | ||
| 12 | 99-6869 | CHANNEL - standoff | 4 | |
| 55-1587 | SCREW - channel | 8 | ||
| 55-4953 | NUT | 8 | ||
| 13 | 99-6869 | PLATE - bearing | 2 | |
| 55-1587 | SCREW | 8 | ||
| 55-4953 | NUT | 8 | ||
| 14 | 77-1221 | BEARING - flange | 2 | |
| 55-2683 | SCREW - bearing | 4 | ||
| 55-4931 | SPACER | 4 | ||
| 55-4955 | NUT | 4 | ||
| 15 | 98-2674 | PANEL - rear access | 1 | |
| 99-7779 | INSULATOR - panel | 1 | ||
| 33-1706 | GASKET - horizontal | 2 | ||
| 33-1707 | GASKET - vertical | 2 | ||
| 55-1587 | SCREW | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 16 | 77-1425 | SHAFT - blower | 2 | |
| 17 | 77-2589 | COUPLING - flexible | 2 | |
| 18 | 104-656 | MOTOR | 1 | |
| 44-4435 | BRUSH (set of 4) | 1 | ||
| 77-1106 | BEARING (drive end) | 1 | ||
| 77-1498 | BEARING | 1 | ||
| 44-6053 | RESISTOR | 1 | ||
| 99-9084 | NAMEPLATE - arrow | 1 | ||
| 99-6871 | NUTSTRIP - motor | 2 | ||
| 55-3035 | RIVET | 4 | ||
| 55-2969 | SCREW - motor | 4 | ||
| 55-3238 | LOCKWASHER | 4 | ||
| 55-2721 | FLATWASHER | 4 | ||
| 19 | 99-6872 | SPACER - housing | 6 | |
| 20 | 77-1219 | BLOWER (cw) | 1 | |
| 77-1220 | BLOWER (ccw) | 1 | ||
| 21 | 77-1834 | RING - inlet | 2 | |
| 55-2979 | SCREW - ring | 6 | ||
| 55-4953 | NUT | 6 | ||
| 22 | 98-2416 | HOUSING - blower (left) | 1 | |
| 99-6873 | INSULATOR - housing (inside) | 1 | ||
| 99-6874 | INSULATOR - housing | 1 | ||
| 99-6866 | INSULATOR - housing (peripheral) | 1 | ||
| 55-2979 | SCREW | 3 | ||
| 55-4953 | NUT | 3 | ||
| 23 | 99-9316 | PLATE - blower housing cover | 2 | |
| 99-6876 | INSULATOR - plate | 2 | ||
| 55-3555 | SCREW | 10 | ||
| 24 | 99-6867 | SPACER - adapter | 1 | |
| 25 | 98-2414 | ADAPTER - outlet | 1 | |
| 55-3035 | RIVET | 4 | ||
| 26 | 55-4422 | FASTENER - snap (filter) | 4 | |
| 55-2995 | SCREW - fastener | 4 | ||
| 55-4560 | NUT | 4 | ||
| 27 | 11-5458 | FILTER - air | 1 | |
| 28 | 99-6877 | BRACKET - expansion valve | 1 | |
| 55-5211 | U-CLAMP | 1 | ||
| 55-5015 | NUT | 2 | ||
| 29 | 98-2380 | PANEL - front | 1 | |
| 55-1587 | SCREW - panel | 11 | ||
| 55-1800 | LOCKWASHER | 11 | ||
| 55-2086 | FLATWASHER | 11 | ||
| 33-1487 | GASKET - panel | 1 | ||
| 99-2789 | NAMEPLATE - TK Logo | 1 | ||
| 30 | 98-2417 | BRACKET - coil (left) | 1 | |
| 31 | 98-2418 | BRACKET - coil (right) | 1 | |
| 55-5720 | SCREW - button head | 4 | ||
| 55-4012 | WASHER - special | 4 | ||
| 55-4954 | NUT | 4 | ||
| 55-3048 | SCREW - bracket (3/8) | 3 | ||
| 55-4954 | LOCKNUT (3/8) | 3 | ||
| 32 | 98-780 | HOSE - drain | 2 | |
| 55-2684 | CLAMP - hose | 4 |
