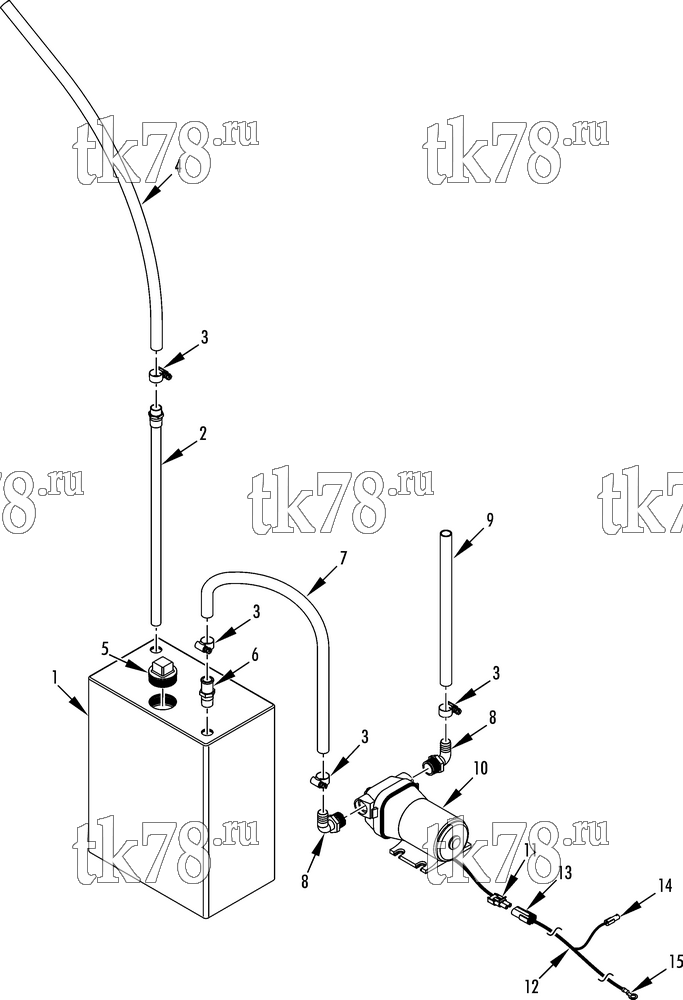

Установкa Thermo King T-Series Bus Recip Simulator Training Unit схема COOLING TRANSFER SYSTEM – 242A3
Обновление от: 2/24/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-1068 | TANK - water (3 gallon) | 1 | |
| 2 | 13-1069 | TUBE - pickup | 1 | |
| 55-6813 | ADAPTER | 1 | ||
| 3 | 55-2686 | CLAMP | 4 | |
| 4 | 13-1071 | HOSE - pvc (reinforced, 5/8 id x 48 in lg) | 1 | |
| 5 | 51-1987 | PLUG - pipe (pvc) | 1 | |
| 6 | 51-1249 | FITTING | 1 | |
| 7 | 13-1070 | HOSE - pvc (reinforced, 3/4 id x 48 in cut to 28 in) | A/R | |
| 8 | 51-1988 | ADAPTER - hose (90 degree) | 2 | |
| 9 | 13-1070 | HOSE - pvc (reinforced, 3/4 id x 48 in lg) | 1 | |
| 10 | 41-9256 | PUMP - water circulation | 1 | |
| 55-2977 | SCREW | 4 | ||
| 55-8610 | FLATWASHER | 4 | ||
| 11 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 12 | 41-9260 | HARNESS ASSY SINGLE 94 | 1 | |
| 13 | 44-5835 | CONNECTOR-SHROUD 2TERM | 1 | |
| 14 | 44-7330 | CONNECTOR-SHROUD 1TERM | 1 | |
| 15 | 44-2786 | TERMINAL-RING 16-14 3/8 BLU | 1 |
