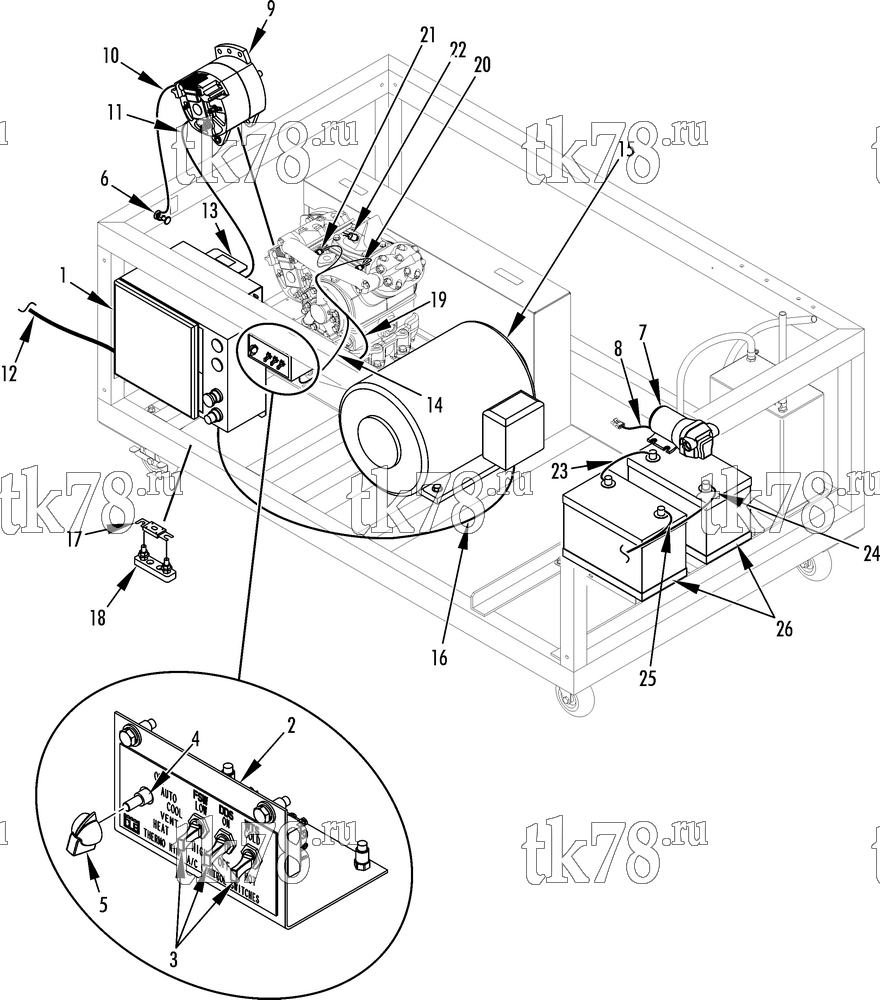

Установкa Thermo King T-Series Bus Recip Simulator Training Unit схема ELECTRICAL COMPONENTS – 242A2
Обновление от: 3/11/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-9254 | PANEL - control | 1 | |
| 55-2977 | SCREW (1/4-20) | 2 | ||
| 55-2969 | SCREW (5/16-18) | 2 | ||
| 55-2086 | FLATWASHER (1/4-20) | 2 | ||
| 55-2958 | FLATWASHER (5/16-18) | 2 | ||
| 55-4953 | NUT - lock (1/4-20) | 2 | ||
| 55-4954 | NUT - lock (5/16-18) | 2 | ||
| 2 | 41-9255 | PANEL - switch | 1 | |
| 92-8168 | NAMEPLATE - panel | 1 | ||
| 55-2957 | SCREW | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8711 | INSERT | 4 | ||
| 3 | 44-7792 | SWITCH (1pst) | 3 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 4 | 44-5998 | SWITCH - rotary selector | 1 | |
| 5 | 44-1222 | KNOB | 1 | |
| 6 | 55-301 | NUT - ground stud | 1 | |
| 55-3672 | LOCKWASHER - ground stud | 1 | ||
| 55-448 | FLATWASHER - ground stud | 2 | ||
| 7 | 41-9256 | PUMP - water (see 242A3) | 1 | |
| 8 | 41-9260 | HARNESS - pump (see 242A3) | 1 | |
| 44-2786 | TERMINAL - ring (3/8 blue, 14-16 ga) | 1 | ||
| 44-7330 | CONNECTOR - shroud (1-pin, see 115D14 for connectors) | 1 | ||
| 44-5835 | CONNECTOR - shroud (2-pin, see 115D14 for connectors) | 1 | ||
| 9 | 41-2791 | ALTERNATOR (20/27 VDC, see 241H0) | 1 | |
| 10 | 41-9258 | HARNESS - alternator to ground | 1 | |
| 11 | 41-9259 | HARNESS - alternator to fuse | 1 | |
| 12 | 41-9257 | HARNESS - power cord | 1 | |
| 41-4188 | CONNECTOR - liquid tite | 1 | ||
| 55-2636 | NUT - lock | 1 | ||
| 13 | 92-8167 | COVER - electric leads | 1 | |
| 14 | 41-9261 | HARNESS - unit to switch & compressor (see 115D14 for connectors) | 1 | |
| 44-7884 | CONNECTOR - shroud (22-pin) | 1 | ||
| 44-7872 | CONNECTOR - tower (6-pin) | 2 | ||
| 44-7811 | LOCK - secondary | 2 | ||
| 44-8294 | CONNECTOR - shroud (6-pin) | 1 | ||
| 44-7327 | CONNECTOR - tower (1-pin) | 1 | ||
| 15 | 104-787 | MOTOR - 20 hp | 1 | |
| 16 | 41-9262 | HARNESS motor to control panel | 1 | |
| 41-9263 | CONNECTOR - liquid tite | 2 | ||
| 55-2636 | NUT - lock | 2 | ||
| 41-4189 | WASHER - sealing | 2 | ||
| 98-6918 | CONDUIT (1.0 id) | A/R | ||
| 17 | 44-8709 | FUSE (130 amp 32V) | 1 | |
| 18 | 44-8708 | HOLDER - fuse | 1 | |
| 55-8842 | SCREW | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT - lock | 2 | ||
| 19 | 41-4810 | HARNESS - compressor (see 242A1) | 1 | |
| 44-5835 | CONNECTOR - shroud (2-pin, see 115D14 for connectors) | 1 | ||
| 44-8294 | CONNECTOR - shroud (6-pin, see 115D14 for connectors) | 1 | ||
| 44-7327 | CONNECTOR - tower (1-pin, see 115D14 for connectors) | 2 | ||
| 44-5838 | CONNECTOR - tower (2-pin, see 115D14 for connectors) | 1 | ||
| 41-1789 | CONNECTOR - tower (6-pin, see 115D14 for connectors) | 1 | ||
| 41-1790 | LOCK - secondary (6-pin connector) | 1 | ||
| 41-4280 | DIODE | 1 | ||
| 41-1787 | COVER - connector | 1 | ||
| 20 | 41-3345 | SENSOR - assembly (for connectors see 115D14) | 1 | |
| 21 | 41-4146 | SWITCH - hpco (see 242A1) | 1 | |
| 22 | 41-4558 | SWITCH - lpco (see 242A1) | 1 | |
| 23 | 41-9251 | HARNESS - battery (jumper, see 241H9) | 1 | |
| 24 | 41-9252 | HARNESS - battery (ground, see 241H9) | 1 | |
| 25 | 41-9253 | HARNESS - battery (to fuse, see 241H9) | 1 | |
| 26 | 203-333 | BATTERY - maintenance free (12V, see 241H9) | 2 |
