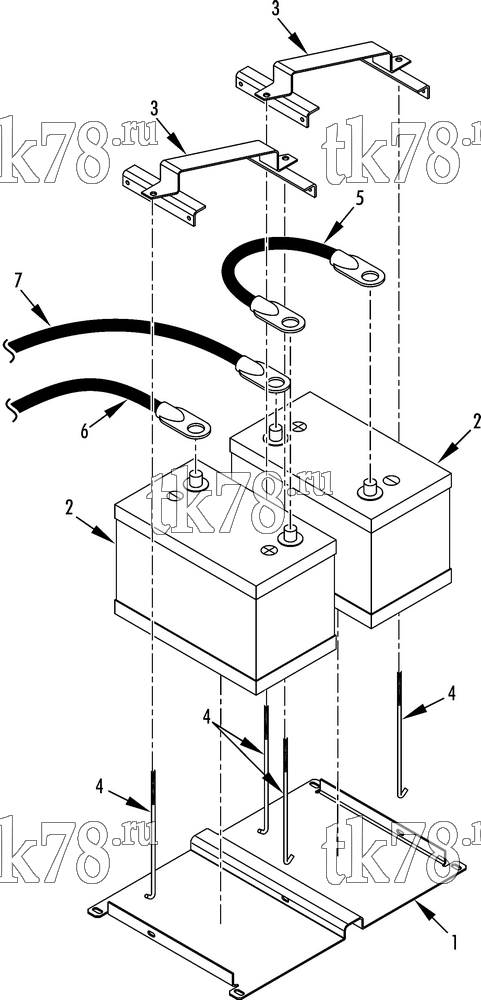

Установкa Thermo King T-Series Bus Recip Simulator Training Unit схема BATTERY GROUP – 241H9
Обновление от: 3/11/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8166 | SUPPORT - battery | 1 | |
| 55-2969 | SCREW - support | 6 | ||
| 55-2958 | FLATWASHER | 6 | ||
| 55-4954 | NUT - lock | 6 | ||
| 2 | 203-333 | BATTERY - maintenance free (12V) | 2 | |
| 3 | 99-9312 | BRACKET - battery | 2 | |
| 4 | 51-1986 | ROD - hold down | 4 | |
| 55-4953 | NUT - lock | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 5 | 41-9251 | HARNESS - battery (jumper) | 1 | |
| 41-5671 | HEAT SHRINK | 2 | ||
| 6 | 41-9252 | HARNESS - battery (ground) | 1 | |
| 41-5671 | HEAT SHRINK | 2 | ||
| 7 | 41-9253 | HARNESS - battery (to fuse) | 1 | |
| 41-5671 | HEAT SHRINK | 2 |
