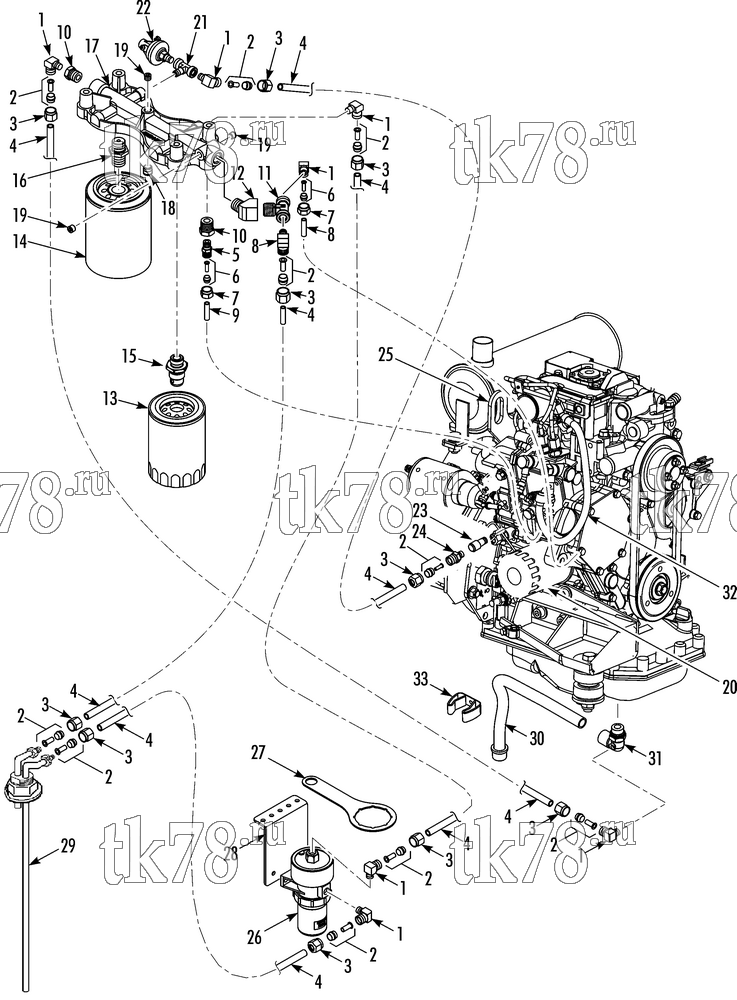

Установкa Thermo King T-DAIRY EMEIA схема FUEL & OIL FILTERS, HOSES & FITTINGS – 261F8
Обновление от: 3/14/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-4380 | ELBOW - hose fitting (3/8) | 6 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 2 | 10-242 | KIT - sleeve & eyelet (3/8) | 10 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 3 | 11-4941 | NUT (3/8) | 10 | |
| 4 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 5 | 11-6837 | FITTING - hose fitting (1/4) | 1 | |
| 6 | 10-243 | KIT - sleeve & eyelet (1/4) | 4 | |
| 7 | 11-4841 | NUT (1/4) | 4 | |
| 8 | 11-5320 | ELBOW - hose fitting (1/4) | 1 | |
| 9 | 11-9030 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 10 | 55-2539 | BUSHING | 2 | |
| 11 | 51-1479 | TEE (with restrictor) | 1 | |
| 12 | 55-1519 | ELBOW (45 degree) | 1 | |
| 13 | 11-9341 | FILTER - fuel (EMI 2000 hour) | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 14 | 11-9321 | FILTER - oil bypass (EMI 2000 hour) | 1 | |
|
11-9321 OEM | Фильтр масляный EMI 2000, MD/RD/KD/T-Series | 2 860 ₽ |
|
|
10-11-9321 | Фильтр масляный, MD/RD/KD/T-Series | 720 ₽ |
|
| 15 | 55-3168 | ADAPTER - fuel filter | 1 | |
| 16 | 55-3164 | ADAPTER - bypass oil filter | 1 | |
| 203-393 | SEALER - thread | A/R | ||
| 17 | 11-5941 | BRACKET - fuel filter | 1 | |
| 55-7343 | SCREW - bracket | 4 | ||
| 55-7069 | FLATWASHER | 8 | ||
| 55-7006 | NUT | 4 | ||
| 18 | 55-1004 | PLUG - pipe | 1 | |
| 19 | 55-433 | PLUG - pipe | 3 | |
| 203-393 | SEALER - thread | A/R | ||
| 20 | 11-6182 | FILTER - oil (full flow) | 1 | |
|
11-6182 OEM | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 2 820 ₽ |
|
|
US-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 1 200 ₽ |
|
|
10-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 630 ₽ |
|
| 21 | 51-1480 | TEE (with restrictor) | 1 | |
| 22 | 41-7064 | SWITCH - oil pressure | 1 | |
|
10-41-7064 | Сенсор давления масла, Yanmar 370 / 376 | 4 970 ₽ |
|
| PP-41-7064 | Сенсор давления масла, Yanmar 370 / 376 | 2 830 ₽ |
|
|
| 23 | 11-7473 | ADAPTER - oil hose | 1 | |
| 24 | 55-4515 | ADAPTER - 3/8 | 1 | |
| 25 | 92-9591 | EYE - lifting | 2 | |
| 26 | 41-7059 | PUMP - fuel (12V) | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 850 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 9 870 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 9 460 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 27 | 204-1166 | WRENCH - fuel bowl | 1 | |
| 28 | 92-5656 | BRACKET - fuel pump | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 29 | 11-9279 | TUBE - fuel pickup | 1 | |
| 30 | 11-7067 | HOSE - oil drain | 1 | |
|
10-11-7067 | Шланг сливной, Yanmar 2XX / 3XX | 3 470 ₽ |
|
| 31 | 51-2185 | ELBOW - oil hose | 1 | |
| 55-1042 | CAP - oil hose | 1 | ||
| 32 | 13-1195 | HOSE - fuel return | 1 | |
| 55-2069 | CLAMP - hose | 2 | ||
| 33 | 91-734 | CLIP - hose | 2 |
