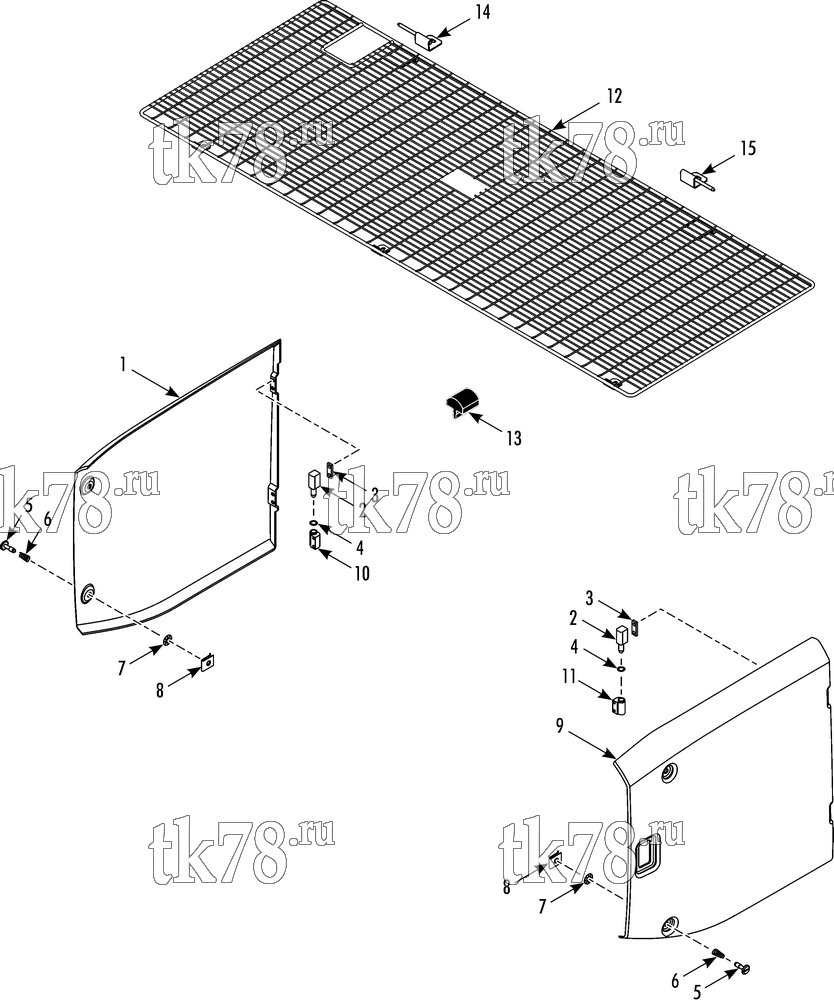

Установкa Thermo King T-DAIRY EMEIA схема DOORS & COVERS – 259F4
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8919 | DOOR - engine (curbside) | 1 | |
| 2 | 92-7930 | HINGE - door (with pin, 2 per door) | 4 | |
| 3 | 92-9611 | SPACER - door | 2 | |
| 55-7366 | SCREW - hinge | 8 | ||
| 55-7171 | LOCKWASHER | 8 | ||
| 55-7089 | FLATWASHER | 8 | ||
| 4 | 51-2190 | WASHER - hinge (nylon) | 4 | |
| 5 | 51-1928 | FASTENER - door | 4 | |
| 6 | 51-1927 | SPRING - fastener (door) | 4 | |
| 7 | 51-1117 | RETAINER - fastener | 4 | |
| 8 | 55-4318 | NUT - u | 4 | |
|
20-55-4318 | Крепеж | 1 730 ₽ |
|
| 9 | 98-8918 | DOOR - control box (roadside) | 1 | |
| 10 | 91-8725 | HINGE - right (engine door) | 2 | |
| 11 | 91-8726 | HINGE - left (control box door) | 2 | |
| 55-7407 | SCREW - hinge to frame | 8 | ||
| 55-7171 | LOCKWASHER | 8 | ||
| 55-7089 | FLATWASHER | 8 | ||
| 12 | 98-8937 | SCREEN - top (full cover) | 1 | |
| 55-8993 | SCREW - screen | 6 | ||
| 55-8782 | WASHER - special | 6 | ||
| 13 | 99-3098 | EXTRUSION - rubber | 1 | |
| 14 | 93-401 | HINGE - screen (curbside) | 1 | |
| 15 | 93-402 | HINGE - screen (roadside) | 1 |
