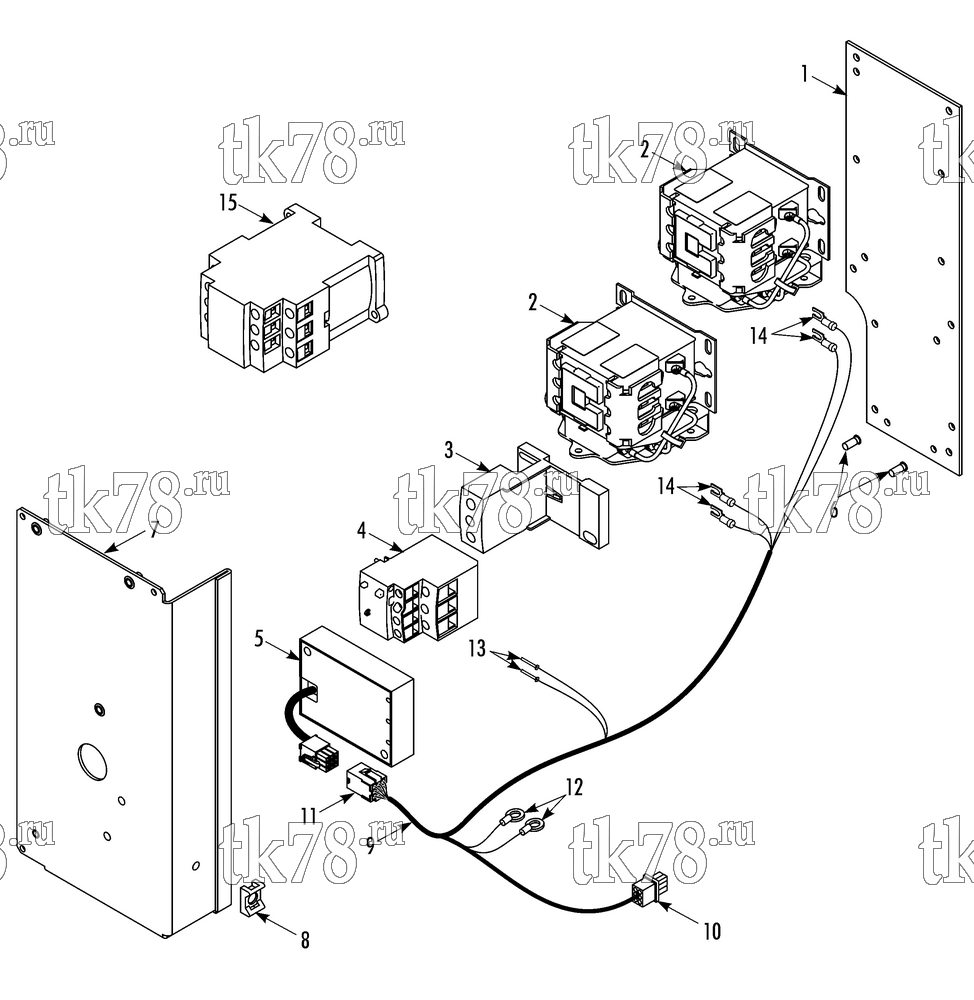

Установкa Thermo King T-DAIRY EMEIA схема HIGH VOLTAGE TRAY – 259F3
Обновление от: 6/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-9697 | TRAY - high voltage | 1 | |
| 2 | 41-9391 | CONTACTOR | 2 | |
| 3 | 41-6096 | ADAPTER - overload relay | 1 | |
| 4 | 41-6409 | RELAY - overload (220-230/3/50-60) | 1 | |
| 41-6410 | RELAY - overload (380-460/3/50-60) | 1 | ||
| 5 | 42-792 | SELECTOR - phase (before 12/12) | 1 | |
| 42-792 | SELECTOR - phase (12/12 & after) | 1 | ||
| 55-7862 | SCREW - components (10mm) | 1 | ||
| 55-9694 | SCREW - components (16mm) | 5 | ||
| 51-2160 | SCREW - components (30mm) | 2 | ||
| 55-9810 | NUT - components | 8 | ||
| 6 | 51-1879 | STUD - ground | 2 | |
| 51-717 | NUT | 2 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 7 | 92-9696 | BRACKET - shield | 1 | |
| 51-2131 | SCREW - bracket | 6 | ||
| 8 | 99-6093 | MOUNT - cable tie | 3 | |
| 51-1602 | RIVET - mount | 3 | ||
| 9 | 42-791 | HARNESS - 50 units | 1 | |
| 10 | 41-5745 | PLUG - 6-pin (phase selector) | 1 | |
| 33-4015 | GASKET - plug | 1 | ||
| 41-5719 | SOCKET - gold (18 ga) | 5 | ||
| 41-6256 | SEAL - wire | 5 | ||
| 11 | 41-7510 | RECEPTACLE - 9-pin | 1 | |
| 41-8739 | PIN - gold (18 ga) | 6 | ||
| 12 | 44-7245 | TERMINAL - ring (red) | 1 | |
| 41-8868 | TERMINAL - ring (blue) | 1 | ||
| 13 | 44-9888 | TERMINAL - pin | 2 | |
| 14 | 41-280 | TERMINAL - fork (red) | 2 | |
| 41-8869 | TERMINAL - fork (blue) | 2 | ||
| 15 | 41-5629 | CONTACTOR - heater (optional) | 1 | |
| 55-9763 | NUT - contactor | 2 |
