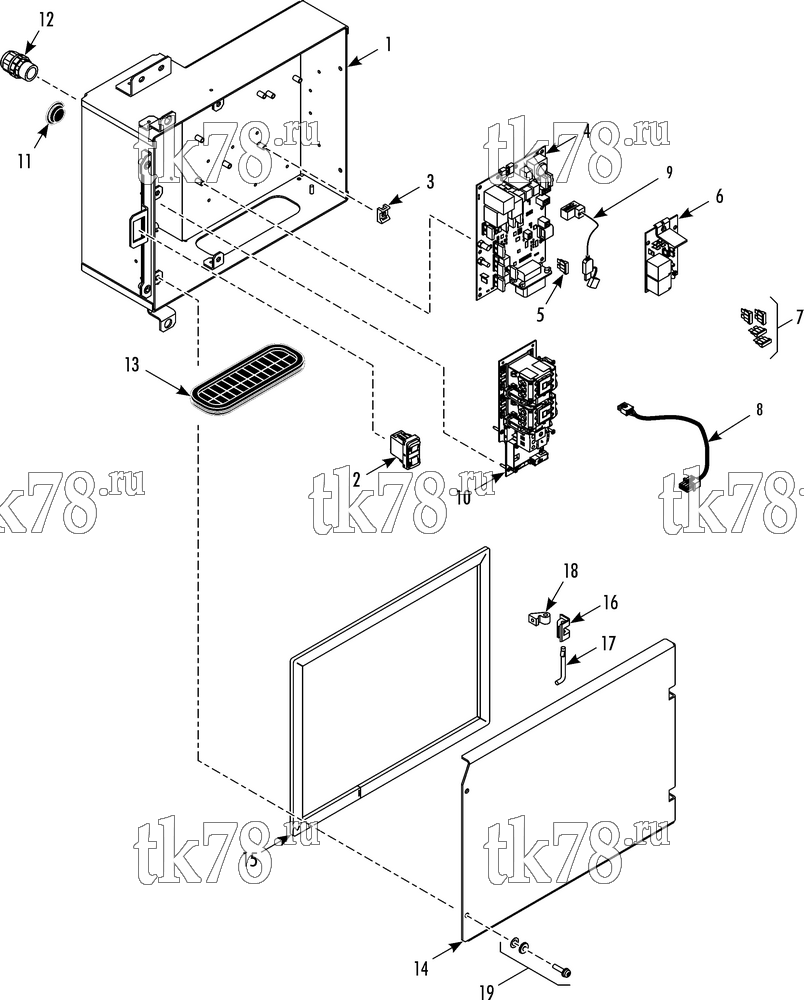

Установкa Thermo King T-DAIRY EMEIA схема CONTROL BOX – 259F1
Обновление от: 12/12/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8935 | BOX - control | 1 | |
| 2 | 41-8737 | SWITCH - on/off (rocker) | 1 | |
| 3 | 99-3281 | MOUNT - cable tie | 18 | |
| 55-5130 | RIVET - mount | 18 | ||
| 55-2331 | BANDWRAP (4.0 dia) | A/R | ||
| 55-2330 | BANDWRAP (1.75 dia) | A/R | ||
| 4 | 45-2391 | CONTROLLER | 1 | |
| 41-1771 | FUSE 30 amp) | 1 | ||
| 30-41-1771 | Предохранитель 32V 30А | 460 ₽ |
|
|
| 55-8851 | SCREW - controller | 9 | ||
| 55-7171 | LOCKWASHER | 9 | ||
| 55-7089 | FLATWASHER | 9 | ||
| 5 | 41-1771 | FUSE (30 amp) | 1 | |
| 30-41-1771 | Предохранитель 32V 30А | 460 ₽ |
|
|
| 6 | 42-401 | BOARD - relay | 1 | |
| 7 | 44-9359 | FUSE (7.5 amp) | 1 | |
| 44-9344 | FUSE (15 amp) | 3 | ||
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 8 | 41-8742 | HARNESS - HMI (see 247E6) | 1 | |
| 10-41-8742 | Проводка пульта управления, T-Series | 17 800 ₽ |
|
|
| 9 | 204-1926 | CABLE - USB EMC | 1 | |
| 10 | NSS | TRAY - high voltage (see 259F3) | 1 | |
| 55-8851 | SCREW - tray | 6 | ||
| 55-7171 | LOCKWASHER | 6 | ||
| 55-7089 | FLATWASHER | 6 | ||
| 11 | 55-2836 | PLUG - button (30 units) | 1 | |
| 12 | 51-2177 | CONNECTOR - harness grip | 2 | |
| 13 | 33-3936 | FOAM - wire harness | 1 | |
| 14 | 98-8936 | DOOR - control box | 1 | |
| 15 | 33-5042 | GASKET - door | 1 | |
| 16 | 91-9477 | HINGE - door | 2 | |
| 17 | 91-9479 | PIN - hinge | 2 | |
| 18 | 91-9478 | HINGE - control box | 2 | |
| 19 | 55-2995 | SCREW - door | 2 | |
| 55-2964 | LOCKWASHER | 2 | ||
| 55-8711 | INSERT - threaded | 2 |
