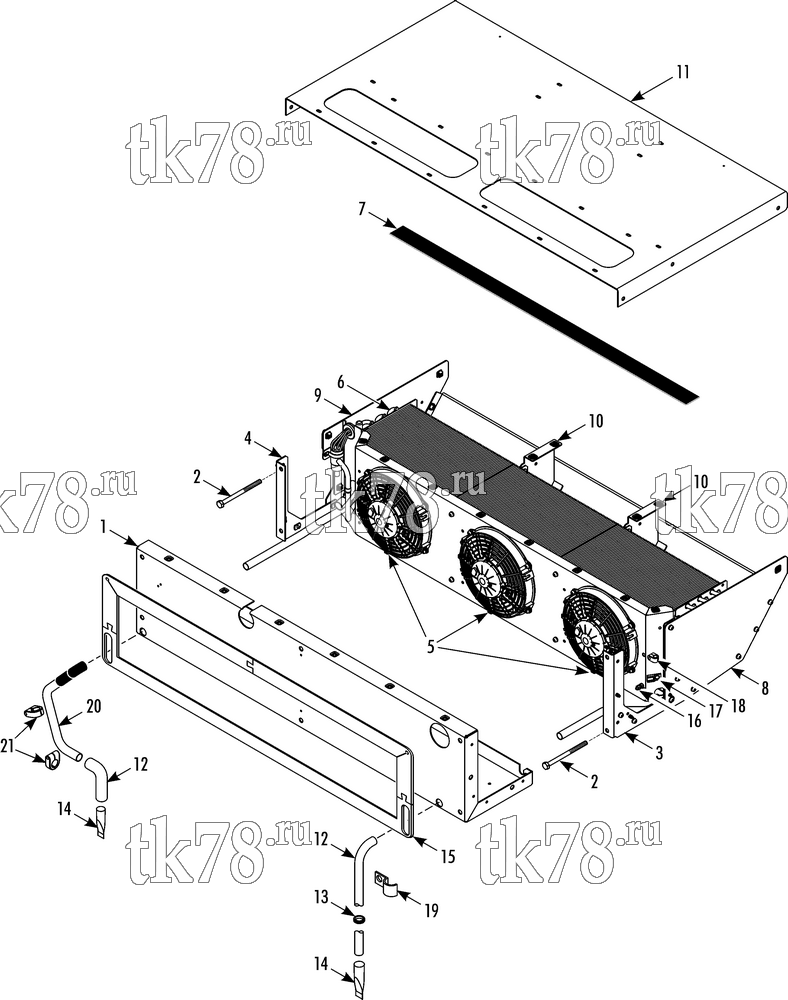

Установкa Thermo King T-DAIRY EMEIA схема EVAPORATOR COMPONENTS – 259E9
Обновление от: 2/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8932 | HOUSING - evaporator | 1 | |
| 2 | 51-111 | SCREW - housing | 6 | |
| 55-8536 | FLATWASHER | 6 | ||
| 55-7122 | WASHER (Belleville) | 6 | ||
| 55-7348 | NUT | 6 | ||
| 3 | 92-9594 | BRACKET - drain pan (left) | 1 | |
| 4 | 92-9595 | BRACKET - drain pan (right, expansion valve side) | 1 | |
| 5 | 78-1373 | FAN - evaporator | 3 | |
| 10-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 10 220 ₽ |
|
|
| P-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 10 220 ₽ |
|
|
| PP-54-60004-02 | Вентилятор испарителя 12V, Viento 200 | 4 460 ₽ |
|
|
|
PP-78-1373 | Вентилятор испарителя 12V, V-Series/C-Series | 4 460 ₽ |
|
| 51-718 | SCREW - fan | 12 | ||
| 55-7075 | FLATWASHER | 12 | ||
| 6 | 67-2720 | COIL - evaporator (see 259E5/267D7) | 1 | |
| 7 | 203-534 | TAPE - sealing | 1 | |
| 8 | 92-9596 | COVER - side (left) | 1 | |
| 9 | 92-9597 | COVER - side (right, expansion valve side) | 1 | |
| 10 | 92-9598 | SUPPORT - cover | 2 | |
| 11 | 98-8933 | COVER - top | 1 | |
| 51-718 | SCREW | A/R | ||
| 55-6997 | NUT - captive | A/R | ||
| 12 | 98-6722 | HOSE - drain | A/R | |
| 13 | 33-1283 | GROMMET - drain hose | 1 | |
| 14 | 66-1273 | VALVE - hose | 2 | |
| 15 | 33-4496 | GASKET - sill | 1 | |
| 16 | 55-9761 | SCREW - ground | 1 | |
| 55-9762 | NUT | 2 | ||
| 17 | 44-9906 | TAB - connector mount | 1 | |
| 55-3136 | RIVET - tab | 1 | ||
| 18 | 55-6388 | CLAMP - sensor | 2 | |
| 55-7372 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 19 | 99-9020 | CLAMP - drain hose | 7 | |
| 55-2681 | SCREW - clamp | 7 | ||
| 20 | 93-766 | TUBE - drain (engine side) | 1 | |
| 21 | 91-372 | CLAMP - tube | 2 | |
| 55-8993 | SCREW - clamp | 2 | ||
| 51-1441 | FLATWASHER | 2 |
