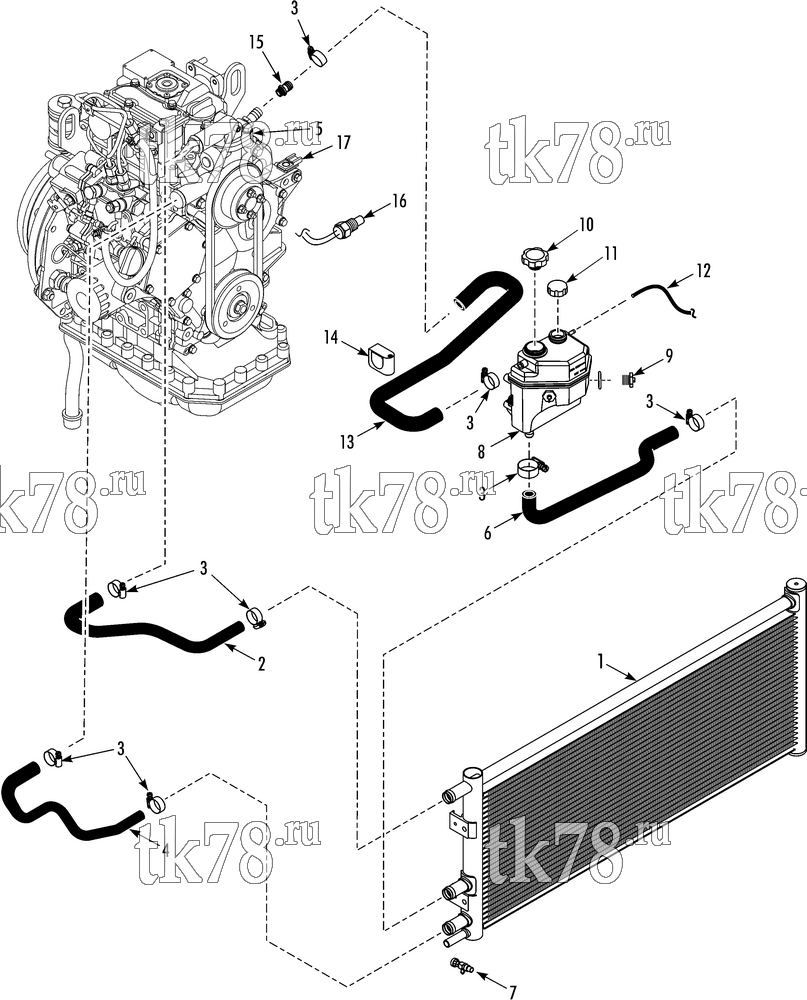

Установкa Thermo King T-DAIRY EMEIA схема ENGINE COOLING SYSTEM – 259D9
Обновление от: 8/7/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2850 | RADIATOR | 1 | |
| 55-6993 | SCREW - coil | 6 | ||
| 55-7342 | LOCKWASHER | 6 | ||
| 55-7085 | FLATWASHER | 3 | ||
| 55-7144 | WASHER - special | 3 | ||
| 2 | 13-1192 | HOSE - engine to radiator (upper) | 1 | |
| 3 | 55-2818 | CLAMP - hose | 8 | |
| 4 | 13-1193 | HOSE - radiator to engine (lower) | 1 | |
| 5 | 13-948 | PUMP - water (see 214B1) | 1 | |
|
10-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 30 290 ₽ |
|
|
PP-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 9 320 ₽ |
|
| 6 | 13-1194 | HOSE - coil to coolant tank | 1 | |
| 7 | 55-7134 | COCK - drain | 1 | |
| 8 | 13-1057 | TANK - coolant | 1 | |
|
10-13-1057 | Расширительный бачок, T-Series | 17 820 ₽ |
|
| 9 | 42-427 | SWITCH - coolant level | 1 | |
| 33-3007 | O-RING - switch | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 10 | 13-990 | CAP - tank (15 psi) | 1 | |
|
10-13-990 | Крышка расширительного бачка, T-Series | 1 490 ₽ |
|
| 11 | 13-957 | CAP - overflow | 4 | |
| 55-7172 | SCREW - tank | 4 | ||
| 55-7478 | LOCKWASHER | 4 | ||
| 55-4638 | FLATWASHER | 4 | ||
| 12 | 98-8282 | HOSE - overflow | 1 | |
| 13 | 13-1189 | HOSE - bleed | 1 | |
| 14 | 91-3886 | CLAMP - hose | 2 | |
| 55-8993 | SCREW - clamp (50mm) | 1 | ||
| 55-7027 | SCREW - clamp (45mm) | 1 | ||
| 55-7354 | NUT | 1 | ||
| 15 | 55-4167 | FITTING - straight | 1 | |
| 16 | 41-6538 | SENSOR - engine coolant | 1 | |
|
10-41-6538 | Сенсор температуры двигателя, SLX/SB-XXX | 18 500 ₽ |
|
|
PP-41-6538 | Сенсор температуры двигателя, SLX/SB-XXX | 3 210 ₽ |
|
| 203-385 | SEALER - thread | A/R | ||
| 17 | 92-9589 | BRACKET - sensor connector | 1 | |
| 44-9906 | TAB - connector | 1 | ||
| 55-3136 | RIVET - tab | 1 | ||
| 55-7027 | SCREW - bracket | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-8893 | FLATWASHER | 1 |
