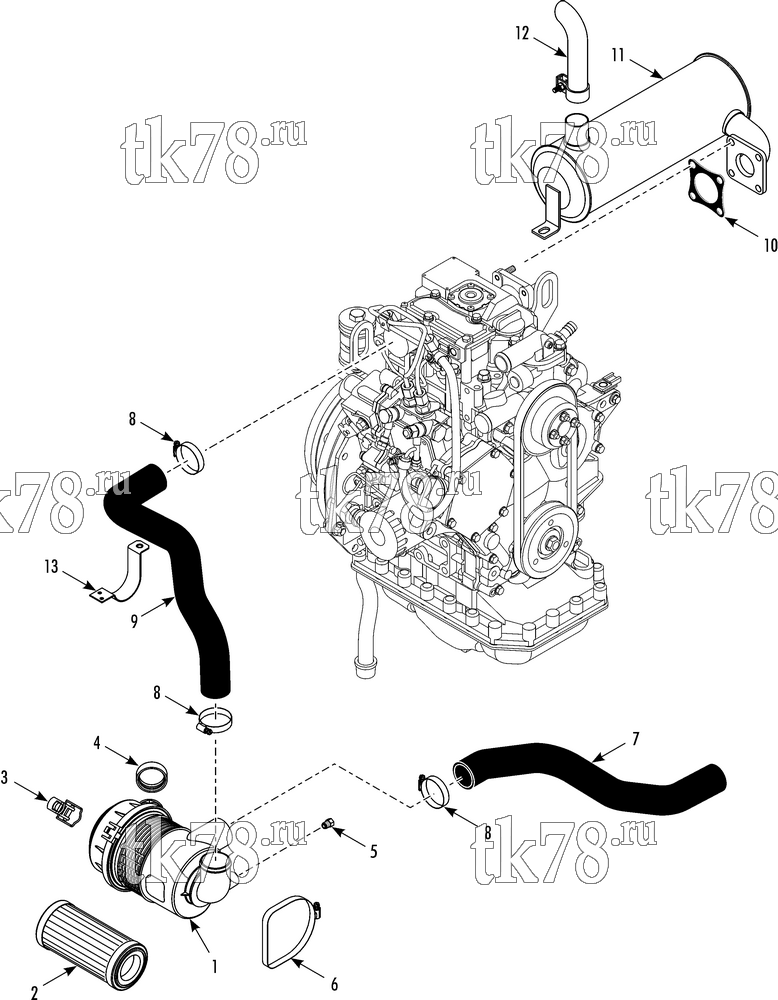

Установкa Thermo King T-DAIRY EMEIA схема AIR FILTER & MUFFLER GROUP – 259D8
Обновление от: 6/5/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9068 | FILTER - air cleaner (dry) | 1 | |
| 11-9068 OEM | Фильтр воздушный в сборе, MD/TS-Series | 10 020 ₽ |
|
|
| 2 | 11-9059 | ELEMENT - air cleaner | 1 | |
|
US-11-9059 | Фильтр воздушный, MD/T-Series | 2 410 ₽ |
|
|
10-11-9059 | Фильтр воздушный, MD/T-Series | 740 ₽ |
|
| 3 | 11-9091 | CLIP - base | 2 | |
| 4 | 11-9092 | EJECTOR - dust | 1 | |
| 5 | 55-3364 | PLUG | 1 | |
| 6 | 55-5921 | CLAMP - air cleaner | 1 | |
| 7 | 13-1191 | HOSE - air intake | 1 | |
| 8 | 55-4979 | CLAMP - hose | 3 | |
| 9 | 13-1190 | HOSE - air cleaner (filter to engine) | 1 | |
| 10 | 33-1907 | GASKET - muffler | 1 | |
|
10-33-1907 | Прокладка глушителя, Yanmar 388 / 395 | 1 070 ₽ |
|
| 11 | 12-1009 | MUFFLER | 1 | |
| 55-6184 | STUD - muffler to manifold | 4 | ||
| 55-6183 | LOCKWASHER | 4 | ||
| 55-6186 | NUT | 4 | ||
| 12 | 11-6291 | TUBE - exhaust | 1 | |
| 13 | 93-757 | CLAMP - hose | 1 | |
| 55-7035 | SCREW - clamp | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 51-1602 | RIVET - clamp | 2 |
