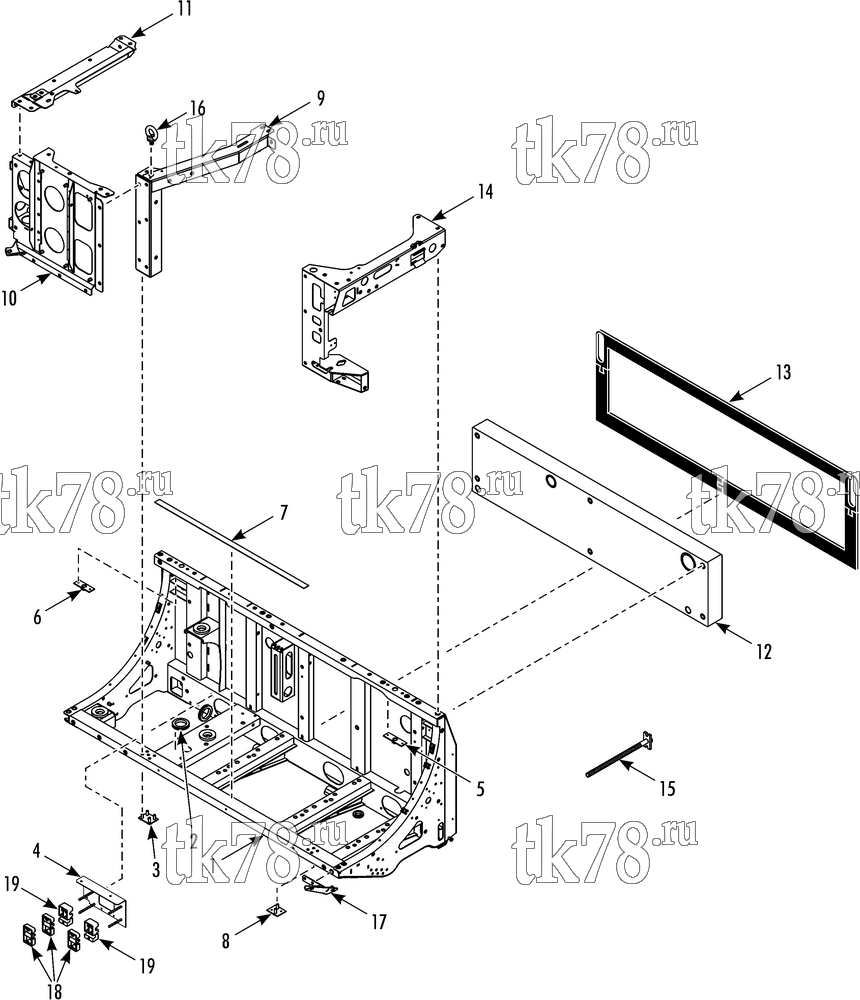

Установкa Thermo King T-DAIRY EMEIA схема CONDENSER FRAME GROUP – 259D5
Обновление от: 2/6/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8929 | FRAME - condenser | 1 | |
| 55-9084 | INSERT (M6) | 28 | ||
| 51-1880 | INSERT (M8) | 19 | ||
| 2 | 33-1371 | GROMMET (43mm id) | 2 | |
| 3 | 92-9248 | BOLTSTRIP | 1 | |
| 4 | 92-9583 | BRACKET - battery cable | 1 | |
| 55-7035 | SCREW - bracket | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 5 | 92-7642 | NUTSTRIP - unit lifting (control box side) | 1 | |
| 6 | 92-9581 | NUTSTRIP - unit lifting (engine side) | 1 | |
| 55-9495 | RIVET - nutstrip | 4 | ||
| 7 | 99-6968 | STRIP - sealing (condenser coil) | A/R | |
| 8 | 92-9584 | BOLTSTRIP | 1 | |
| 55-9495 | RIVET - boltstrip | 2 | ||
| 9 | 92-9585 | ARCH - support | 1 | |
| 10 | 92-9586 | BRACKET - front | 1 | |
| 11 | 92-9587 | BRACKET - fuel filter | 1 | |
| 55-7341 | SCREW - arch (20mm) | 2 | ||
| 55-6987 | SCREW - bracket & support (30mm) | 13 | ||
| 55-7727 | LOCKWASHER | 15 | ||
| 55-7069 | FLATWASHER | 15 | ||
| 55-7006 | NUT | 4 | ||
| 12 | 98-8930 | BULKHEAD | 1 | |
| 13 | 33-4496 | GASKET - sill | 1 | |
| 14 | 92-9599 | BRACKET - valve | 1 | |
| 55-6987 | SCREW - bracket | 5 | ||
| 55-7727 | LOCKWASHER | 5 | ||
| 55-7069 | FLATWASHER | 5 | ||
| 15 | 99-214 | T-BOLT | A/R | |
| 55-5234 | WASHER - special | 4 | ||
| 55-3686 | NUT | 4 | ||
| 16 | 51-2026 | BOLT - unit lifting | 3 | |
| 17 | 92-9588 | BRACKET - bottom | 1 | |
| 55-7828 | SCREW - bracket | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 18 | 55-9238 | CLAMP - fuel lines | 2 | |
| 19 | 55-9239 | CLAMP - fuel lines | 2 | |
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-1801 | NUT | 4 |
