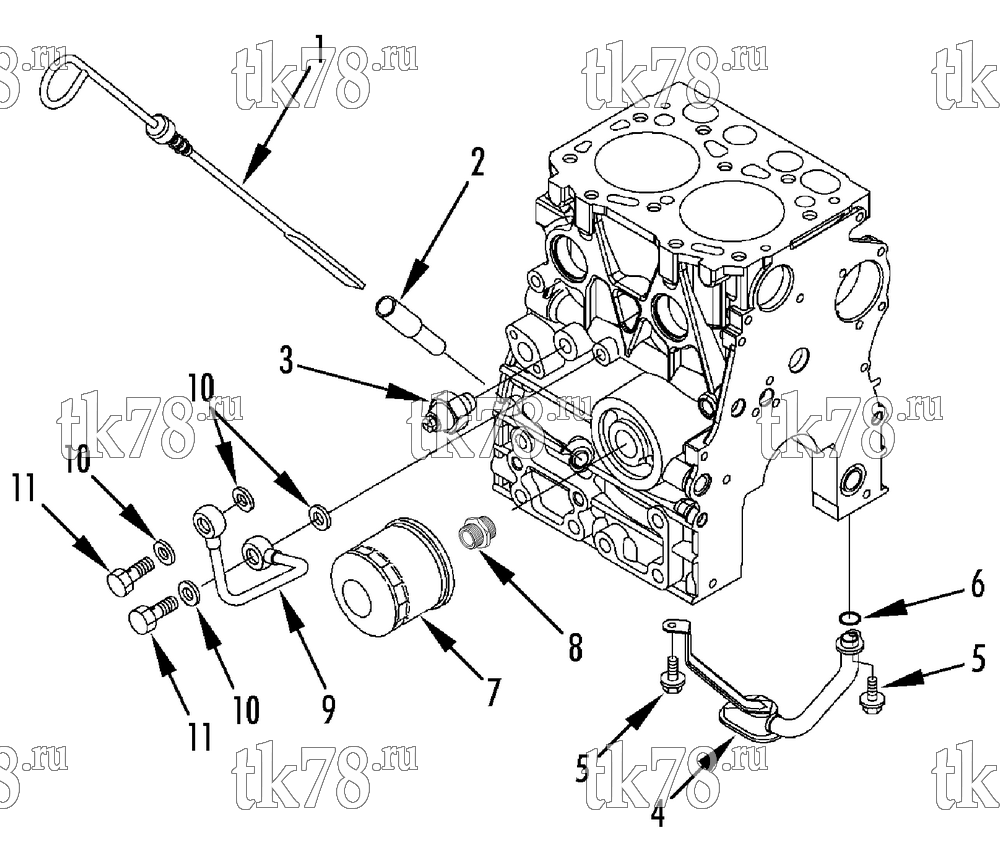

Установкa Thermo King T-DAIRY EMEIA схема OIL LUBRICATION SYSTEM – 209A5
Обновление от: 7/23/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-469 | DIPSTICK - oil | 1 | |
| 2 | 11-6683 | GUIDE - dipstick | 1 | |
| 3 | 41-6801 | SWITCH - oil pressure | 1 | |
| 20-41-6801 | Выключатель давления масла | 3 400 ₽ |
|
|
| 4 | 13-629 | PIPE - oil inlet | 1 | |
| 5 | 55-5822 | SCREW - pipe | 3 | |
| 6 | 33-4224 | O-RING - oil pipe | 1 | |
| 7 | 11-6182 | FILTER - oil | 1 | |
|
11-6182 OEM | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 2 820 ₽ |
|
|
US-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 1 200 ₽ |
|
|
10-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 630 ₽ |
|
| 8 | 51-2062 | STUD - oil filter | 1 | |
| 9 | 13-616 | PIPE - lubrication | 1 | |
| 10 | 55-4622 | SEAL - washer | 4 | |
| 11 | 51-606 | SCREW - banjo | 2 |
