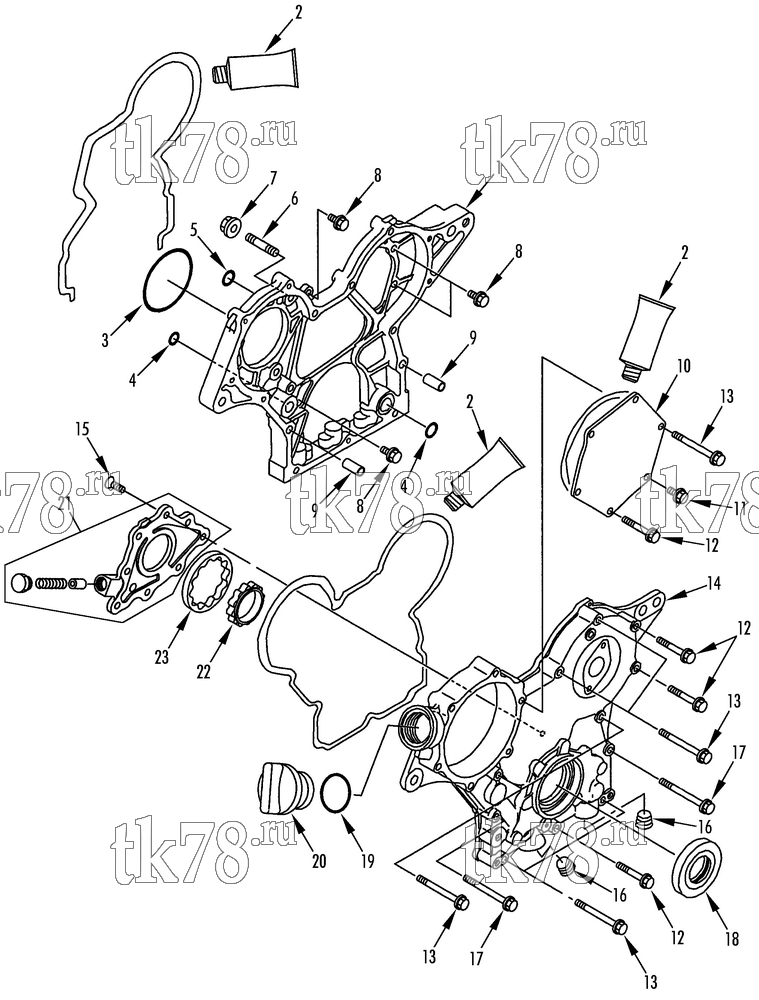

Установкa Thermo King T-DAIRY EMEIA схема OIL PUMP AND GEAR HOUSING GROUP (2TNV70 PTR) – 208F9
Обновление от: 2/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9638 | CASE - gear | 1 | |
| 2 | 203-348 | GASKET - liquid | A/R | |
| 3 | 33-1953 | O-RING - fuel injection pump | 1 | |
| 4 | 33-3512 | O-RING (12.3) | 2 | |
| 5 | 33-3820 | O-RING (17.0) | 3 | |
| 6 | 51-591 | STUD - fuel injection pump | 3 | |
| 7 | 51-594 | NUT | 3 | |
| 8 | 55-5786 | SCREW - gear case (M6 x 16) | 4 | |
| 9 | 55-5785 | PIN - alignment | 4 | |
| 10 | 11-9640 | COVER - pump timing | 1 | |
| 11 | 55-5798 | SCREW - cover (M6 x 12) | 1 | |
| 12 | 55-5788 | SCREW - cover & case (M6 x 40) | 4 | |
| 13 | 55-5766 | SCREW - cover & case (M6 x 60) | 7 | |
| 14 | 11-9705 | COVER - gear case (assembly) | 1 | |
| 15 | 51-592 | SCREW - oil pump (M6 x 16) | 8 | |
| 16 | 51-593 | PLUG (3/8) | 2 | |
| 17 | 55-5790 | SCREW - gear case (M6 x 65) | 2 | |
| 18 | 33-1727 | SEAL - oil | 1 | |
| 33-1727 OEM | Сальник коленвала передний | 3 020 ₽ |
|
|
| PP-33-1727 | Сальник коленвала передний | 990 ₽ |
|
|
| 19 | 11-5091 | COVER - filler | 1 | |
| 11-5091 OEM | Крышка маслозаливной горловины, Yanmar 353 / 366 / 374 / 388 / 395 / 482 / 486 / 486V | 3 500 ₽ |
|
|
| 20 | 33-1954 | O-RING - oil filler (32) | 1 | |
| 21 | 11-9639 | COVER - pump (assembly) | 1 | |
| 22 | 11-9703 | ROTOR - inner (replace as a set w/ item 23) | 1 | |
| 23 | 11-9704 | ROTOR - outer (replace as a set w/ item 22) | 1 | |
| 30-281 | GASKET SET (see 209A0) | 1 |
