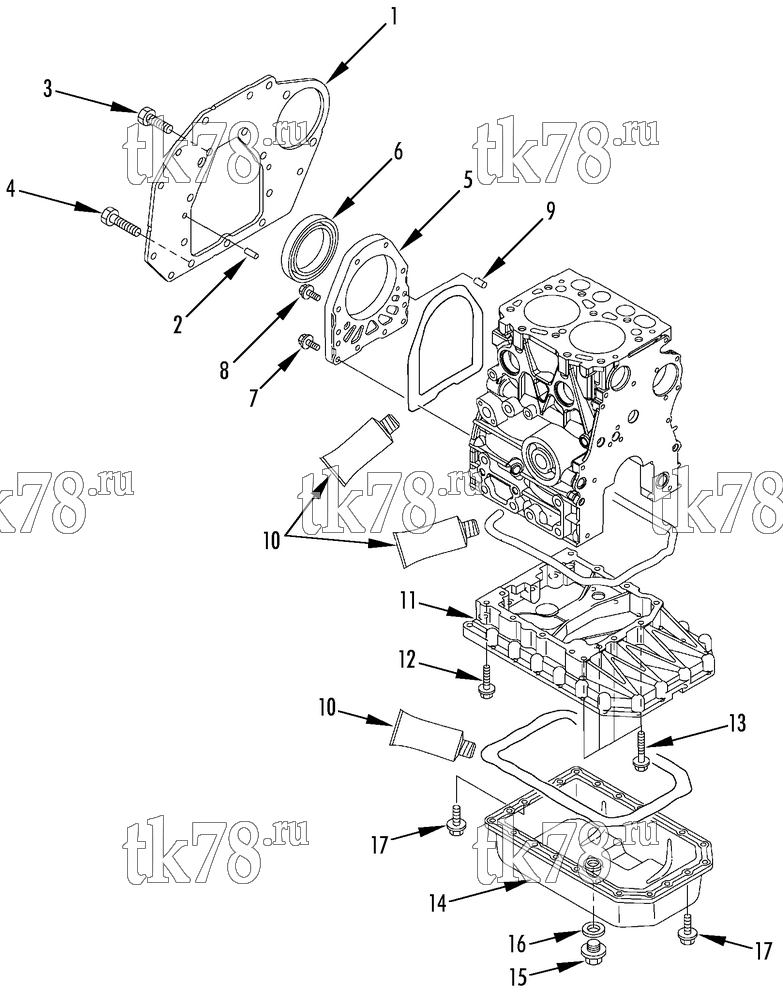

Установкa Thermo King T-DAIRY EMEIA схема MOUNTING FLANGE & OIL SUMP (2TNV70 PTR) – 208F0
Обновление от: 2/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9641 | FLANGE - mounting | 1 | |
| 2 | 55-5816 | PIN - dowel (8 x 16) | 2 | |
| 3 | 55-5848 | SCREW - flange (M10 x 20) | 7 | |
| 4 | 55-6537 | SCREW - flange (M10 x 25) | 3 | |
| 5 | 11-6032 | HOUSING - oil seal (assembly) | 1 | |
| 6 | 33-1506 | SEAL - oil | 1 | |
|
10-33-1506 | Сальник коленвала задний, Yanmar, кроме 4XX / 370 / 376 | 4 830 ₽ |
|
|
PP-33-1506 | Сальник коленвала задний, Yanmar, кроме 4XX / 370 / 376 | 3 690 ₽ |
|
| 7 | 55-5860 | SCREW - case | 4 | |
| 8 | 55-5849 | SCREW - case | 6 | |
| 9 | 55-5795 | PIN - dowel | 2 | |
| 10 | 203-348 | GASKET - liquid | A/R | |
| 11 | 13-847 | SUMP - oil | 1 | |
| 12 | 55-5988 | SCREW - sump (M8 x 45) | 10 | |
| 13 | 55-5766 | SCREW - sump (M8 x 60) | 4 | |
| 14 | 13-464 | COVER - oil sump (TriPac) | 1 | |
| 15 | 13-620 | PLUG - oil drain | 1 | |
| 16 | 33-4221 | WASHER - seal | 1 | |
| 17 | 55-8854 | SCREW - cover (M8 x 12) | 22 | |
| 30-281 | GASKET SET (see 209A0) | 1 |
