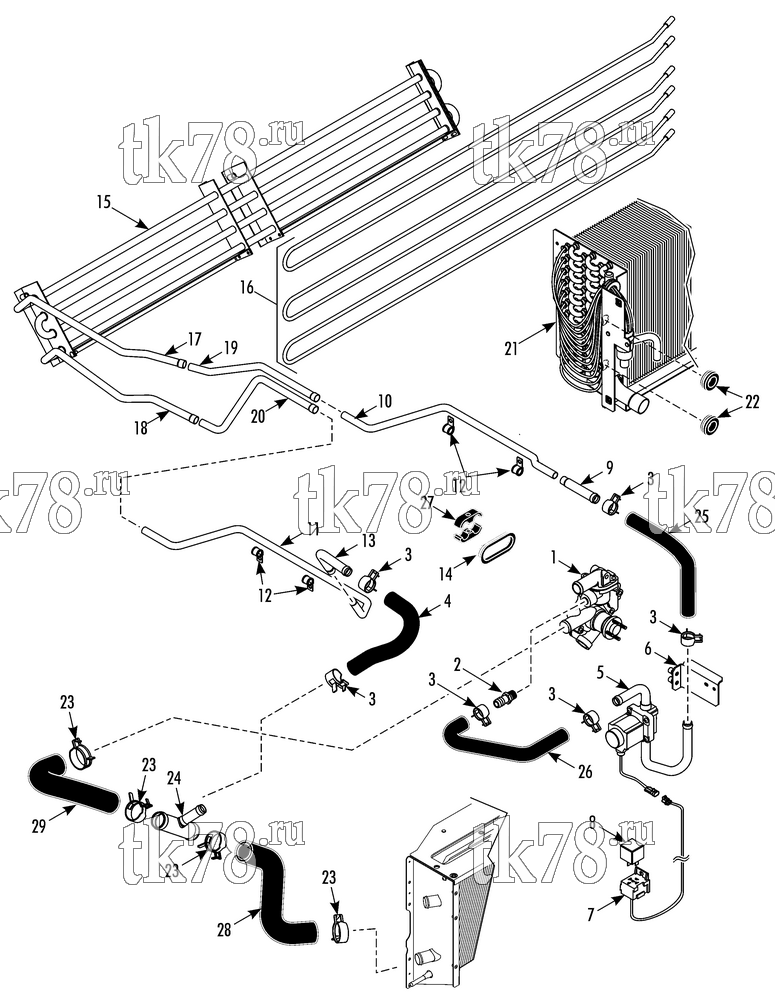

Установкa Thermo King T-800R TSA & EMEIA схема WATER HEAT GROUP w/ Micro Channel coil (Optional, EMEIA only) – 261A6
Обновление от: 8/29/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-984 | PUMP - water (see 213H6) | 1 | |
| 2 | 55-4167 | FITTING - straight | 1 | |
| 3 | 51-1989 | CLAMP - hose (24mm, constant tension) | 6 | |
| 4 | 13-1280 | HOSE - tube to tee | 1 | |
| 5 | 61-6174 | VALVE - water | 1 | |
| 42-649 | COIL - valve (12VDC) | 1 | ||
| 55-1384 | SCREW - valve | 2 | ||
| 55-5761 | LOCKWASHER | 2 | ||
| 55-406 | FLATWASHER | 2 | ||
| 6 | 92-9532 | BRACKET - valve | 1 | |
| 55-4606 | SCREW - bracket | 2 | ||
| 55-7478 | LOCKWASHER | 2 | ||
| 55-4638 | FLATWASHER | 2 | ||
| 7 | 42-377 | HARNESS - water solenoid | 1 | |
| 44-5537 | SOCKET - relay | 1 | ||
| 8 | 41-893 | RELAY (12VDC) | 1 | |
| 55-7407 | SCREW - relay | 1 | ||
| 55-7033 | FLATWASHER | 1 | ||
| 55-7034 | NUT | 1 | ||
| 9 | 13-1182 | TUBE - connector | 1 | |
| 10 | 13-1180 | TUBE - heat (in, first joint) | 1 | |
| 11 | 13-1181 | TUBE - heat (return, joint to joint) | 1 | |
| 12 | 55-3065 | CLAMP - tube | 4 | |
| 13 | 13-1183 | TUBE - connector | 1 | |
| 14 | 33-1275 | GROMMET | 1 | |
| 15 | 67-2705 | COIL - heater | 1 | |
| 16 | 45-1374 | HEATER (750W 230V, see 238D6) | 3 | |
| 17 | 13-1176 | TUBE - heat (joint to heater coil) | 1 | |
| 18 | 13-1177 | TUBE - heat (jeater coil to joint) | 1 | |
| 19 | 13-1178 | TUBE - heat (in, second joint) | 1 | |
| 20 | 13-1179 | TUBE - heat (return, joint to joint) | 1 | |
| 21 | 67-2730 | COIL - evaporator (see 242G5) | 1 | |
| 22 | 33-507 | GROMMET | 2 | |
| 23 | 51-1739 | CLAMP - hose (36mm) | 4 | |
| 24 | 13-1145 | TEE | 1 | |
| 25 | 13-1281 | HOSE - valve to tube | 1 | |
| 26 | 13-1282 | HOSE - pump to valve | 1 | |
| 27 | 55-8299 | CLAMP - tube | 1 | |
| 55-7074 | SCREW - clamp | 1 | ||
| 55-4499 | NUT | 1 | ||
| 28 | 13-1185 | HOSE - radiator to tee | 1 | |
| 29 | 13-1186 | HOSE - tee to pump | 1 |
