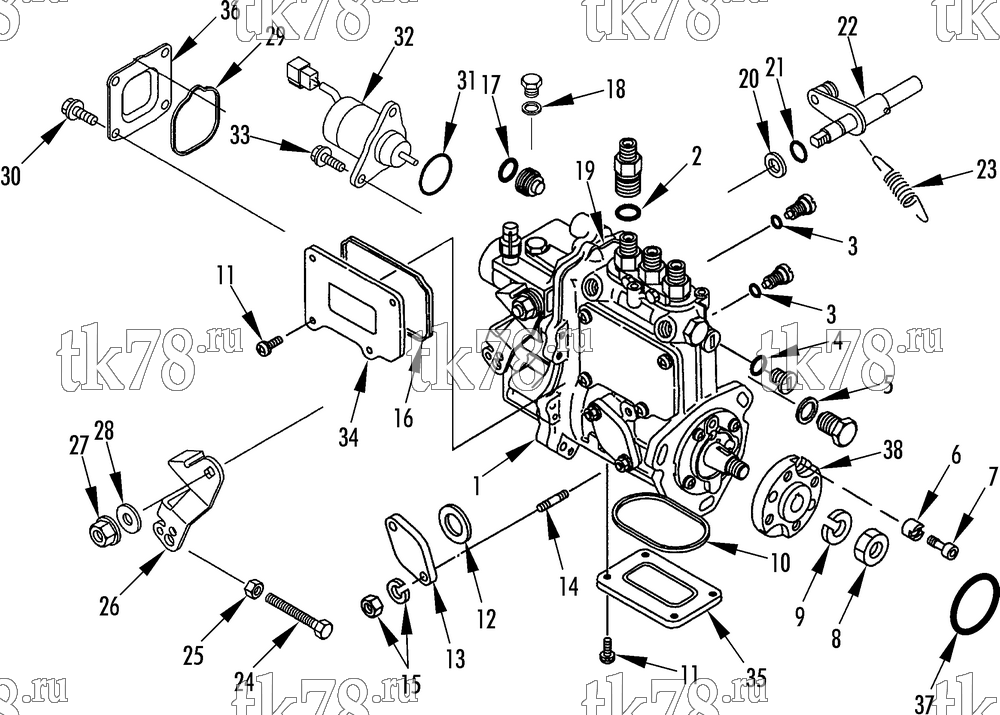

Установкa Thermo King T-800 TSA схема FUEL INJECTION PUMP (TK 370N) – 236H7
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 101-373 | PUMP - fuel injection | 1 | |
| 2 | 33-4212 | O-RING - delivery | 3 | |
| 3 | 33-1753 | O-RING (S6) | 4 | |
| 4 | 33-3690 | WASHER - seal | 1 | |
| 5 | 33-1970 | O-RING | 1 | |
| 6 | 11-9685 | COLLAR - fix | 1 | |
| 7 | 51-609 | SCREW - collar | 1 | |
| 8 | 55-6254 | NUT - shaft | 1 | |
| 9 | 55-8863 | LOCKWASHER | 1 | |
| 10 | 33-4440 | GASKET - bottom cover | 1 | |
| 11 | 51-269 | SCREW - cover | 8 | |
| 12 | 33-3942 | GASKET - cover | 1 | |
| 13 | 11-6780 | COVER | 1 | |
| 14 | 55-6367 | STUD - cover | 2 | |
| 15 | 55-4750 | NUT | 2 | |
| 55-4608 | LOCKWASHER | 2 | ||
| 16 | 33-3829 | GASKET - front cover | 1 | |
| 17 | 33-4213 | O-RING | 1 | |
| 18 | 33-3833 | WASHER - seal | 1 | |
| 19 | 33-3831 | GASKET - case | 1 | |
| 20 | 51-611 | SHIM | 1 | |
| 21 | 33-1752 | O-RING | 1 | |
| 22 | 11-9686 | SHAFT - control | 1 | |
| 23 | 13-430 | SPRING - governor | 1 | |
| 24 | 51-612 | SCREW - idle limit | 1 | |
| 25 | 55-5846 | LOCKNUT | 1 | |
| 26 | 13-1032 | LEVER - control | 1 | |
| 27 | 55-5810 | NUT - lever | 1 | |
| 28 | 51-610 | SHIM | 1 | |
| 29 | 33-3832 | GASKET - cover | 1 | |
| 30 | 55-5822 | SCREW - cover | 4 | |
| 31 | 33-2230 | O-RING | 1 | |
|
10-33-2230 | Уплотнительное кольцо соленоида отсечки топлива | 490 ₽ |
|
| 32 | 42-100 | SOLENOID - stop | 1 | |
|
10-42-100 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 6 970 ₽ |
|
| PP-42-100 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 4 870 ₽ |
|
|
|
PP-41-6383 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 3 190 ₽ |
|
| 33 | 55-8448 | SCREW - solenoid | 2 | |
| 34 | 11-9711 | COVER - tappet | 1 | |
| 35 | 11-9712 | COVER - bottom | 1 | |
| 36 | 11-9710 | COVER - case | 1 | |
| 37 | 33-1953 | O-RING - fuel injection pump | 1 | |
| 38 | 13-422 | FLANGE - pump | 1 |
