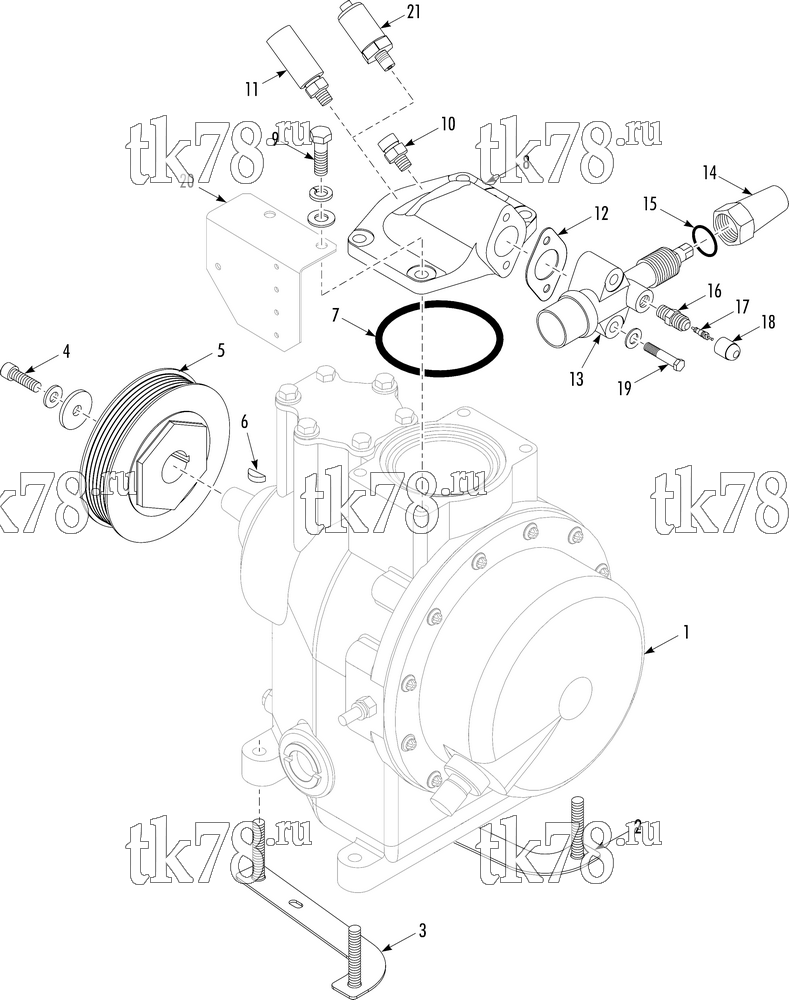

Установкa Thermo King T-800 TSA схема COMPRESSOR GROUP – 235H4
Обновление от: 8/13/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-946 | COMPRESSOR - scroll (T-600/800, see 236F6) | 1 | |
| 102-951 | COMPRESSOR - scroll (T-1000, see 236F0) | 1 | ||
| 203-516 | OIL - compressor (1 liter) | A/R | ||
| 2 | 92-7549 | BOLTSTRIP - compressor | 1 | |
| 3 | 92-7550 | BOLTSTRIP - compressor | 1 | |
| 55-7344 | NUT - compressor | 4 | ||
| 55-7122 | WASHER - Belleville | 4 | ||
| 55-5667 | WASHER - special | 4 | ||
| 4 | 55-1769 | SCREW - pulley | 1 | |
| 55-4923 | WASHER - special | 1 | ||
| 55-8423 | WASHER - Belleville | 1 | ||
| 5 | 77-2950 | PULLEY - compressor (T-600/800) | 1 | |
| 77-2956 | PULLEY - compressor (T-1000) | 1 | ||
| 6 | 55-5371 | KEY - pulley | 1 | |
| 7 | 33-1221 | O-RING - adapter | 1 | |
|
10-33-1221 | О-ринг под клапан - регулятор давления | 280 ₽ |
|
| 8 | 66-1896 | ADAPTER - suction valve (two 1/8 npt ports) | 1 | |
| 66-9941 | ADAPTER - suction valve (one 1/8 npt port) | 1 | ||
| 9 | 55-129 | SCREW - adapter | 4 | |
| 55-375 | LOCKWASHER | 4 | ||
| 55-402 | FLATWASHER | 4 | ||
| 10 | 66-8928 | ADAPTER - o-ring seal | 1 | |
| 33-1461 | O-RING (5/16 id) | 1 | ||
| 66-9387 | CAP | 1 | ||
| 11 | 41-5246 | SWITCH - lpco | 1 | |
| 12 | 33-2541 | GASKET - flange | 1 | |
| 13 | 66-3576 | VALVE - suction | 1 | |
| 14 | 66-3015 | CAP - valve (brass, incl gasket) | 1 | |
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
| 15 | 33-350 | GASKET - cap | 1 | |
| 16 | 11-2886 | VALVE - access | 1 | |
| 17 | 11-7777 | CORE - valve | 1 | |
| 18 | 55-5672 | CAP - valve | 1 | |
| 19 | 55-8650 | SCREW - valve | 2 | |
| 55-2363 | LOCKWASHER | 2 | ||
| 55-895 | FLATWASHER | 2 | ||
| 20 | 92-7577 | BRACKET - harness | 1 | |
| 21 | 41-7963 | TRANSDUCER - suction (ETV & SR-3, 200 psi) | 1 | |
|
42-1312 OEM | Трансдюсер, SL-400/SL-400e/SLX/SLXe/T-Series | 29 680 ₽ |
|
|
10-42-1312 | Трансдюсер, SL-400/SL-400e/SLX/SLXe/T-Series | 10 060 ₽ |
|
