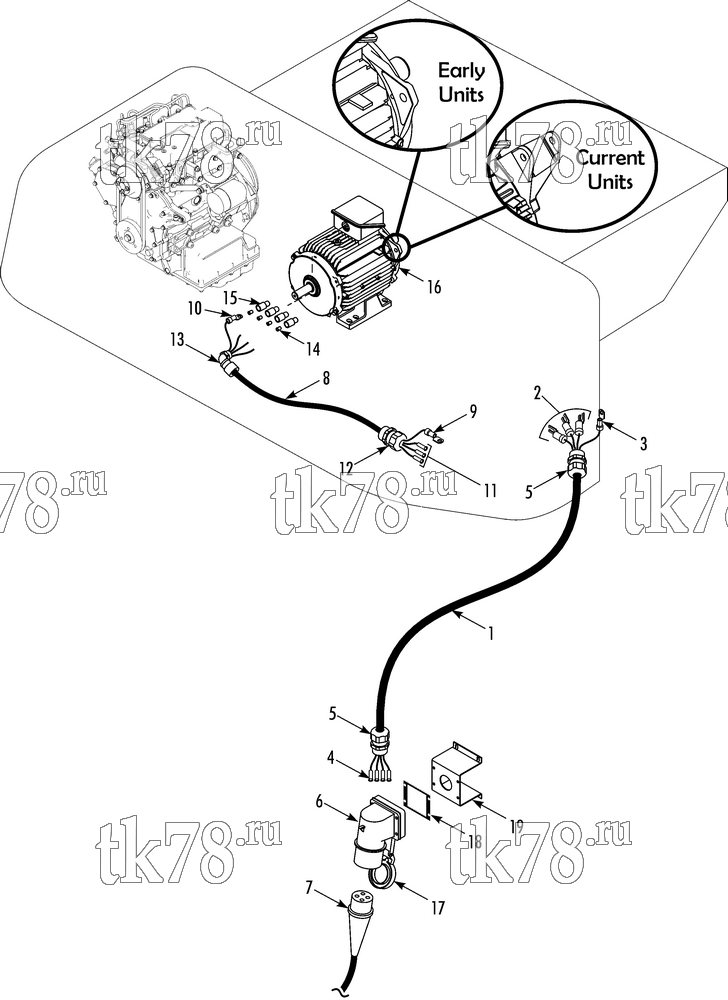

Установкa Thermo King T-680S TSA схема POWER RECEPTACLE & MOTOR HARNESS EMEIA – 240C5
Обновление от: 8/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8745 | HARNESS - power (EMEIA, 4100 mm) | 1 | |
| 42-641 | HARNESS - power (EMEIA, 6100 mm) | 1 | ||
| 2 | 41-4407 | TERMINAL - fork (#8 yellow) | 3 | |
| 3 | 44-2792 | TERMINAL - ring (#8 yellow) | 1 | |
| 4 | 44-9891 | TERMINAL - pin (10 ga) | 4 | |
| 5 | 51-1852 | CONNECTOR - harness grip | 2 | |
| 55-2636 | NUT - lock | 2 | ||
| 41-4189 | WASHER - sealing | 2 | ||
| 6 | 41-8746 | RECEPTACLE - power (220/3/50 30 amp, 3 pole + E + N) | 1 | |
| 41-8762 | RECEPTACLE - power (380/3/50 32 amp, 3 pole + E + N) | 1 | ||
| 44-6971 | RECEPTACLE - power (230/3/50 32 amp, 3 pole + E) | 1 | ||
| 44-6875 | RECEPTACLE - power (380/3/50 32 amp, 3 pole + E) | 1 | ||
| 7 | 44-7576 | PLUG - power (230/3/50 32 amp, 3 pole + E, mates with 44-6971) | 1 | |
| 44-6685 | PLUG - power (380/3/50 32 amp, 3 pole + E, mates with 44-6875) | 1 | ||
| 41-782 | PLUG - power (220/3/50 30 amp, 3 pole + E + N), mates w/ 41-8746) | 1 | ||
| 41-520 | PLUG - power (380/3/50 30 amp, 3 pole + E + N), mates w/ 41-8762) | 1 | ||
| 8 | 42-903 | HARNESS - motor | 1 | |
| 9 | 44-2792 | TERMINAL - ring (#8 yellow) | 1 | |
| 10 | 44-2793 | TERMINAL - ring (1/4 yellow) | 1 | |
| 11 | 44-9891 | TERMINAL - pin (10 ga) | 3 | |
| 12 | 51-1852 | CONNECTOR - harness grip | 1 | |
| 13 | 51-1853 | CONNECTOR - harness grip (90 degree) | 1 | |
| 55-2636 | NUT - lock | 2 | ||
| 41-4189 | WASHER - sealing | 2 | ||
| 14 | 41-1105 | SLEEVE - crimp | A/R | |
| 15 | 44-6646 | CAP - sleeve | A/R | |
| 16 | 104-801 | MOTOR (early units, 7.2 hp) | 1 | |
| 104-801 | MOTOR (current units 7.2 hp) | 1 | ||
| 104-786 | MOTOR (early units, 12 hp) | 1 | ||
| 104-791 | MOTOR (current units 12 hp) | 1 | ||
| 17 | 99-9052 | COVER - receptacle | 1 | |
| 18 | 33-1697 | GASKET - receptacle | 2 | |
| 19 | 92-1169 | BRACKET - receptacle | 1 | |
| 55-9695 | SCREW - receptacle to bracket | 4 | ||
| 55-9763 | NUT | 4 |
