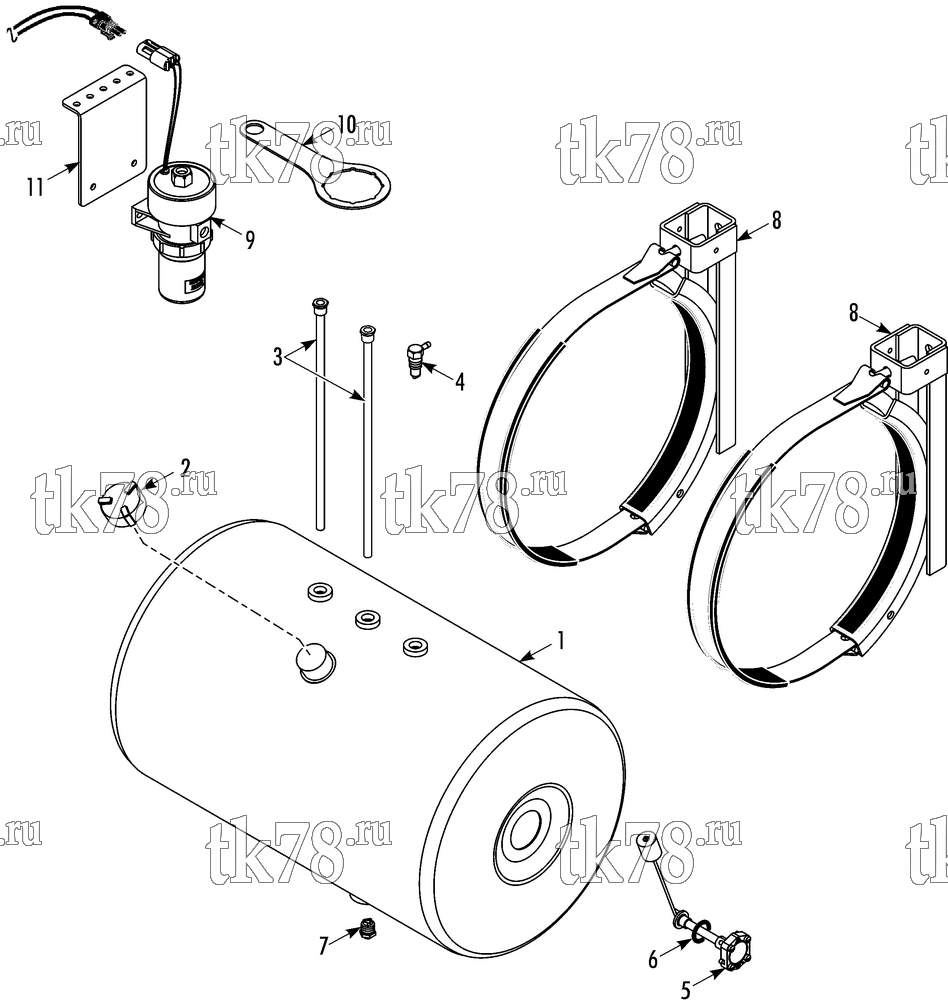

Установкa Thermo King T-680S TSA схема FUEL TANK & PUMP GROUP – 235F4
Обновление от: 8/21/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-927 | TANK - fuel (30 gal 18 dia) | 1 | |
| 2 | 11-7984 | CAP - fuel tank | 1 | |
| 3 | 11-5331 | TUBE - fuel | 2 | |
| 4 | 55-5617 | VENT - check | 1 | |
| 5 | 11-2593 | GAUGE - fuel | 1 | |
| 11-5450 | DIAL - fuel gauge | 1 | ||
|
10-11-5450 | Датчик уровня топлива | 4 800 ₽ |
|
| 6 | 33-4818 | O-RING - gauge to tank | 1 | |
| 7 | 11-9134 | DRAIN - ball check | 1 | |
| 8 | 98-8077 | BAND - fuel tank | 2 | |
| 55-3686 | NUT | 2 | ||
| 55-5431 | FLATWASHER | 2 | ||
| 9 | 41-7059 | PUMP - fuel | 1 | |
|
30-66840-00 OEM | Топливный насос подкачки | 22 850 ₽ |
|
|
US-41-7059 | Топливный насос подкачки | 19 340 ₽ |
|
| P-30-01108-12 | Топливный насос подкачки, HP | 9 870 ₽ |
|
|
|
10-41-7059-HP | Топливный насос подкачки, HP | 9 460 ₽ |
|
| 10-376 | KIT - filter (diesel) | 1 | ||
| 10-378 | KIT - bowl & gasket | 1 | ||
| 33-4256 | GASKET - bowl to body | 1 | ||
| 10 | 204-1166 | WRENCH - fuel bowl | 1 | |
| 11 | 92-5656 | BRACKET - fuel pump | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-4953 | NUT | 2 |
