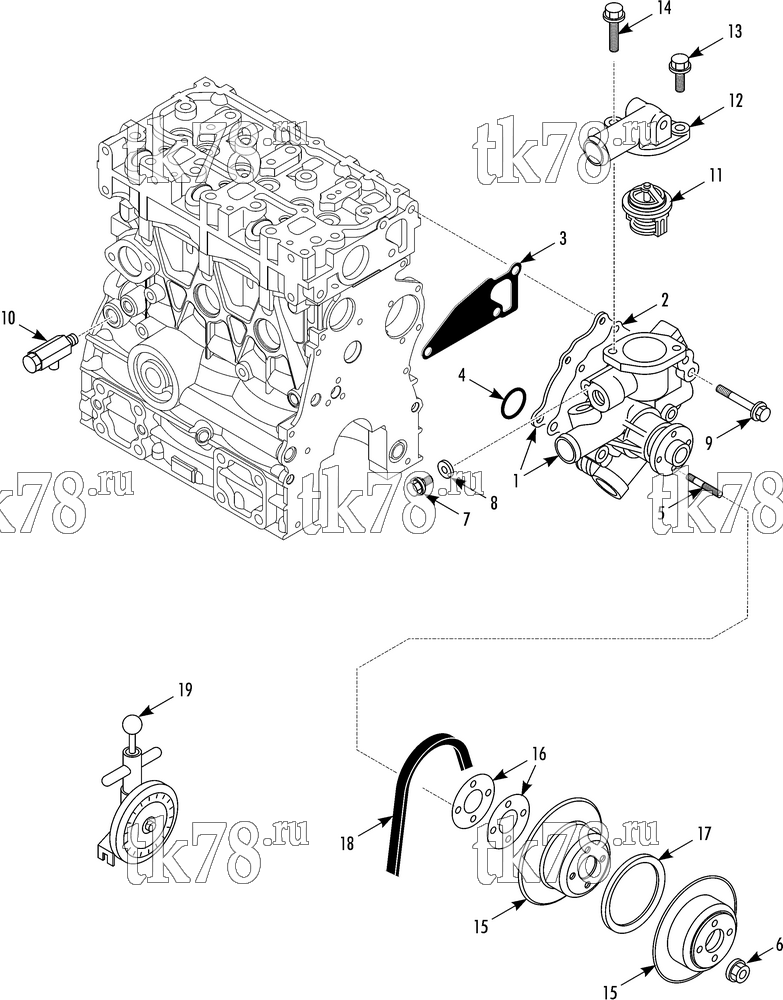

Установкa Thermo King T-680S TSA схема WATER PUMP (TK 370/370N) – 213H6
Обновление от: 6/20/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-948 | PUMP - water (w/gasket) | 1 | |
|
10-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 30 290 ₽ |
|
|
PP-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 9 320 ₽ |
|
| 2 | 33-4159 | GASKET - water pump | 1 | |
| 51-623 | SCREW - cover | 4 | ||
| 3 | 33-4211 | GASKET - water pump | 1 | |
| 4 | 33-3827 | O-RING - pump | 1 | |
| 5 | 51-608 | STUD - pulley | 4 | |
| 6 | 55-5792 | NUT (M6) | 4 | |
| 7 | 55-8854 | SCREW (M8 x 12) | 1 | |
| 8 | 33-1524 | GASKET - round | 1 | |
| 9 | 55-6193 | SCREW - pump | 3 | |
| 10 | 11-8677 | COCK - coolant drain | 1 | |
| 11 | 13-954 | THERMOSTAT (151 F / 71 C, gasket is incorporated w/ thermostat) | 1 | |
|
13-954 OEM | Термостат, Yanmar 370 / 376, TS-500/T-Series | 8 350 ₽ |
|
|
10-13-954 | Термостат, Yanmar 370 / 376, TS-500/T-Series | 4 140 ₽ |
|
| 12 | 13-418 | COVER - thermostat | 1 | |
| 51-1190 | PLUG (1/8) | 1 | ||
| 13 | 55-6188 | SCREW - cover (M8 x 20) | 1 | |
| 14 | 55-8857 | SCREW - cover (M8 x 30) | 1 | |
| 15 | 77-2757 | V-PULLEY | 1 | |
| 16 | 77-2752 | SHIM - pulley (0.5 mm) | A/R | |
| 77-1427 | SHIM - pulley (1.0 mm) | A/R | ||
| 17 | 77-2758 | SPACER - pulley | 1 | |
| 18 | 78-1492 | BELT - water pump | 1 | |
| 10-78-1492 | Ремень водяного насоса, Yanmar TK 370, T-600/800 | 2 820 ₽ |
|
|
|
PP-78-1492 | Ремень водяного насоса, Yanmar TK 370, T-600/800 | 980 ₽ |
|
| 19 | 204-427 | TOOL - belt tension gauge | 1 | |
| 30-278 | GASKET SET (see 214A1) | 1 | ||
|
10-30-278 | Набор прокладок, Yanmar 370 | 48 000 ₽ |
|
