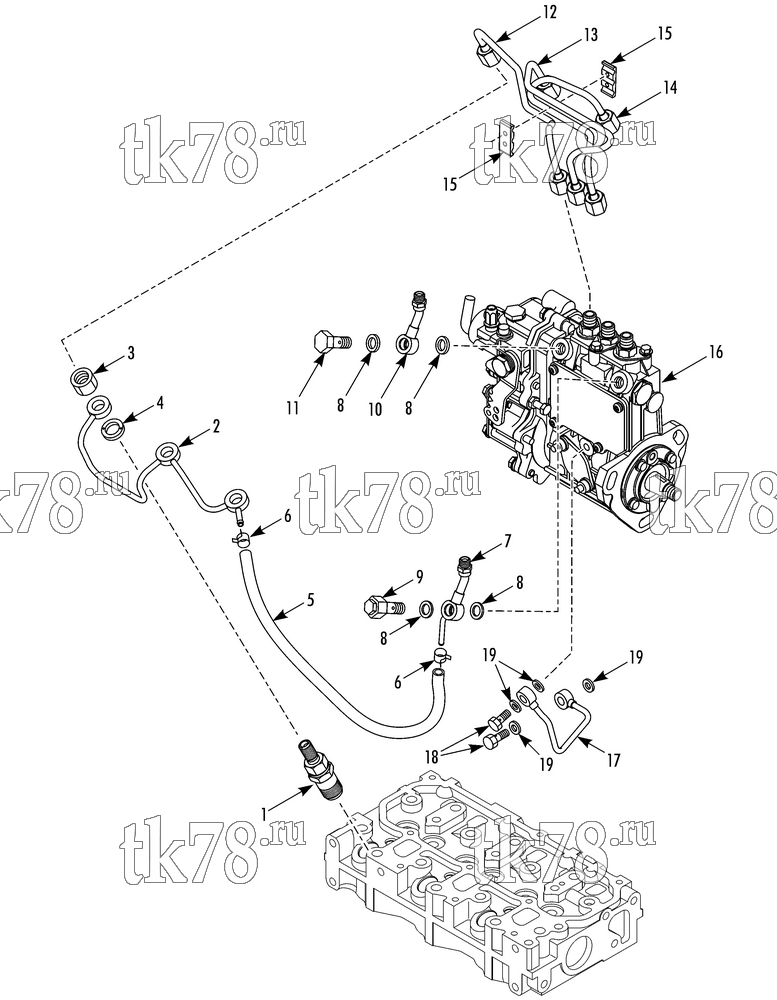

Установкa Thermo King T-680R TSA схема FUEL INJECTION VALVE (3TNV74) – 267B6
Обновление от: 2/28/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-1391 | VALVE - injection (see 267B7) | 3 | |
| 2 | 13-603 | TUBE - fuel return | 1 | |
| 3 | 11-6115 | NUT | 3 | |
| 4 | 33-3834 | GASKET - return | 3 | |
| 5 | 13-1381 | HOSE - fuel return | 1 | |
| 6 | 13-1382 | CLAMP | 2 | |
| 7 | 13-602 | JOINT - banjo | 1 | |
| 8 | 55-8620 | WASHER - seal | 4 | |
| 9 | 13-436 | SCREW - banjo (w/ check valve) | 1 | |
| 10 | 13-433 | JOINT - banjo | 1 | |
| 11 | 55-8447 | SCREW - banjo | 1 | |
| 12 | 13-1383 | PIPE - fuel injection | 1 | |
| 13 | 13-1384 | PIPE - fuel injection | 1 | |
| 14 | 13-1385 | PIPE - fuel injection | 1 | |
| 15 | 11-6109 | CLAMP - injection pipe | 1 | |
| 16 | 101-399 | PUMP - fuel injection (see 267B7, TK 370) | 1 | |
| 17 | 11-9682 | PIPE - oil | 1 | |
| 18 | 51-1158 | SCREW - banjo | 2 | |
| 19 | 55-4622 | WASHER | 4 | |
| 30-316 | GASKET SET (see 267B8) | 1 |
