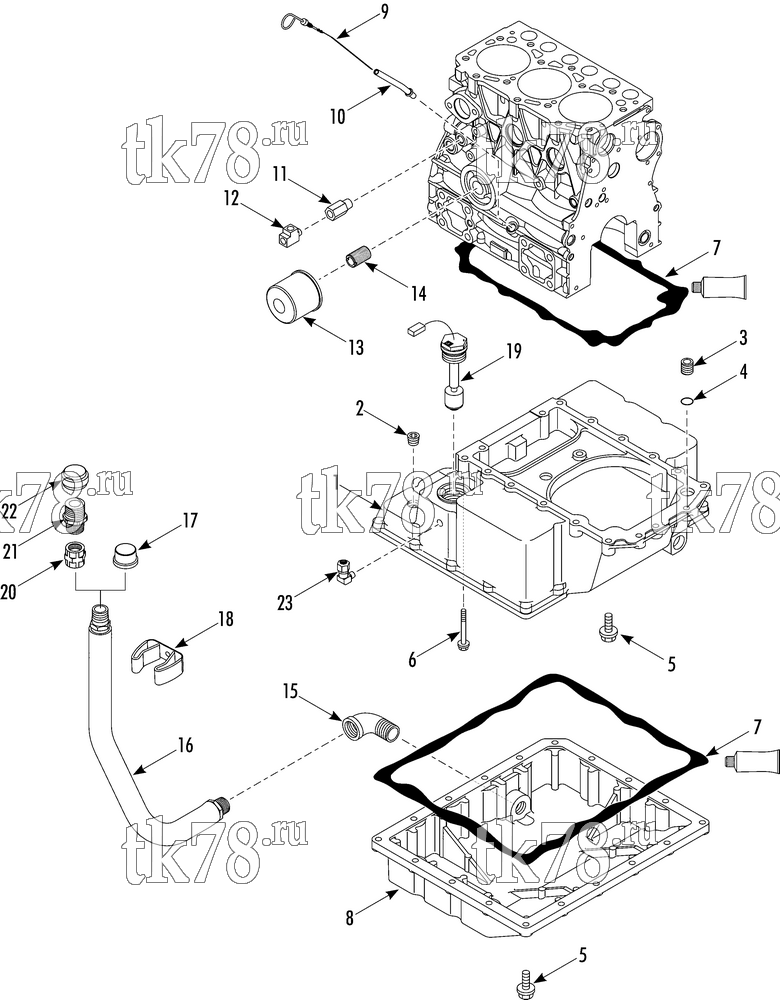

Установкa Thermo King T-680R TSA схема OIL SUMP (3TNV74) – 267B5
Обновление от: 2/28/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-554 | SUMP - oil | 1 | |
| 2 | 51-1190 | PLUG (1/8) | 1 | |
| 3 | 11-9642 | PIPE - knock | 1 | |
| 4 | 33-3821 | O-RING (16) | 1 | |
| 5 | 55-5765 | SCREW - sump (M8 x 25) | 30 | |
| 6 | 55-5766 | SCREW - sump (M8 x 60) | 4 | |
| 7 | 203-348 | GASKET - rtv | 1 | |
| 8 | 13-555 | COVER - oil sump | 1 | |
| 9 | 13-1030 | DIPSTICK | 1 | |
| 10 | 13-1031 | GUIDE - dipstick | 1 | |
| 11 | 55-8391 | ADAPTER - oil return | 1 | |
| 12 | 55-665 | TEE (see 233H0) | 1 | |
| 13 | 11-6182 | FILTER - oil | 1 | |
|
11-6182 OEM | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 2 820 ₽ |
|
|
US-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 1 200 ₽ |
|
|
10-11-6182 | Фильтр масляный, Yanmar кроме 4XX, MD/RD/KD/T-Series | 630 ₽ |
|
| 14 | 51-2366 | STUD - oil filter | 1 | |
| 15 | 55-6557 | ELBOW - drain hose | 1 | |
| 16 | 11-7067 | HOSE - oil drain (23 in) | 1 | |
|
10-11-7067 | Шланг сливной, Yanmar 2XX / 3XX | 3 470 ₽ |
|
| 17 | 55-1042 | CAP - oil hose | 1 | |
| 18 | 91-734 | CLIP - hose | 1 | |
| 19 | 41-4470 | SWITCH - oil level | 1 | |
|
41-4470 OEM | Датчик уровня масла, резьбовой | 12 990 ₽ |
|
|
10-41-4470 | Датчик уровня масла, резьбовой | 4 830 ₽ |
|
| 33-4160 | O-RING - switch | 1 | ||
| 20 | 51-1925 | COUPLING | 1 | |
| 21 | 13-1036 | VALVE - oil drain | 1 | |
| 22 | 13-1037 | CAP - oil drain | 1 | |
| 23 | 55-4515 | ELBOW (see 233H0) | 1 | |
| 30-316 | GASKET SET (see 214A1) | 1 |
