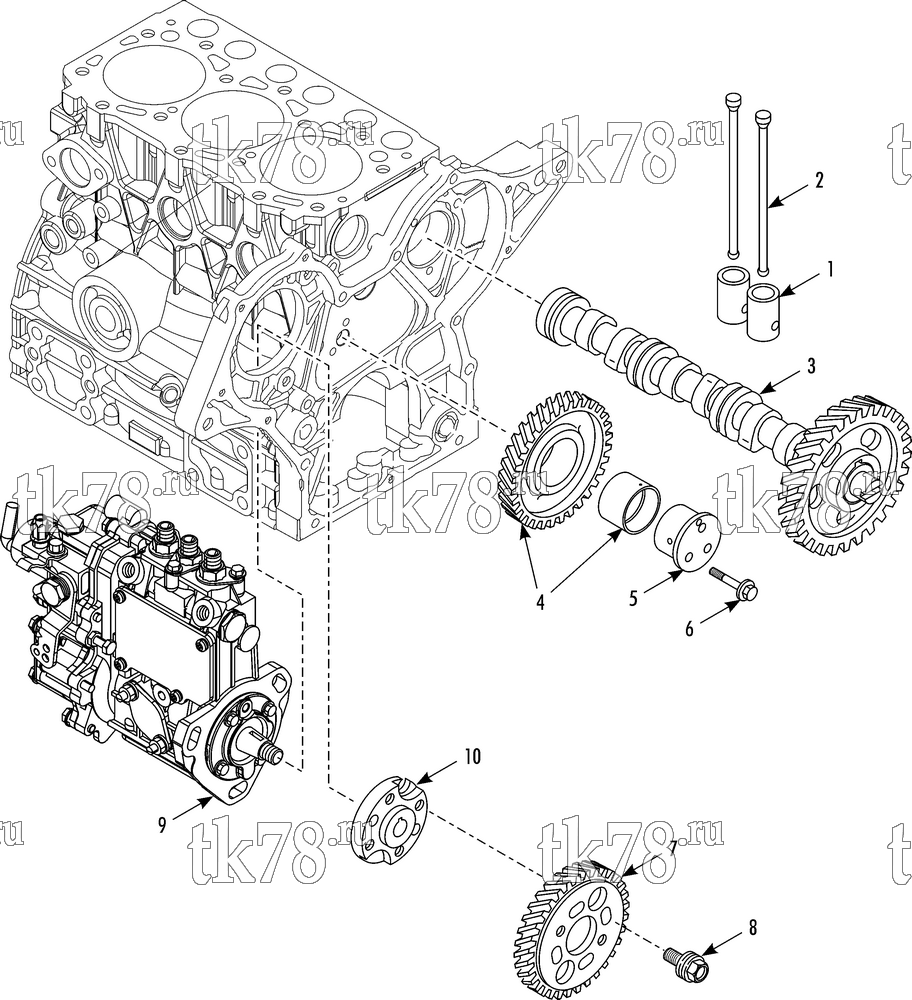

Установкa Thermo King T-680R TSA схема CAMSHAFT & DRIVING GEAR (3TNV74) – 267B4
Обновление от: 2/21/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-6590 | TAPPET | 6 | |
| 2 | 13-564 | ROD - push | 6 | |
| 3 | 13-1364 | CAMSHAFT - gear & plate | 1 | |
| 4 | 13-850 | GEAR ASSEMBLY - idle | 1 | |
| 5 | 11-9666 | SHAFT - idle gear | 1 | |
| 6 | 55-5770 | SCREW - idle shaft | 3 | |
| 7 | 11-9668 | GEAR - injection pump | 1 | |
| 8 | 55-9222 | SCREW - gear | 4 | |
| 9 | 101-399 | PUMP - fuel injection (see 267B7, 3TNV74) | 1 | |
| 10 | 13-422 | FLANGE - pump | 1 |
