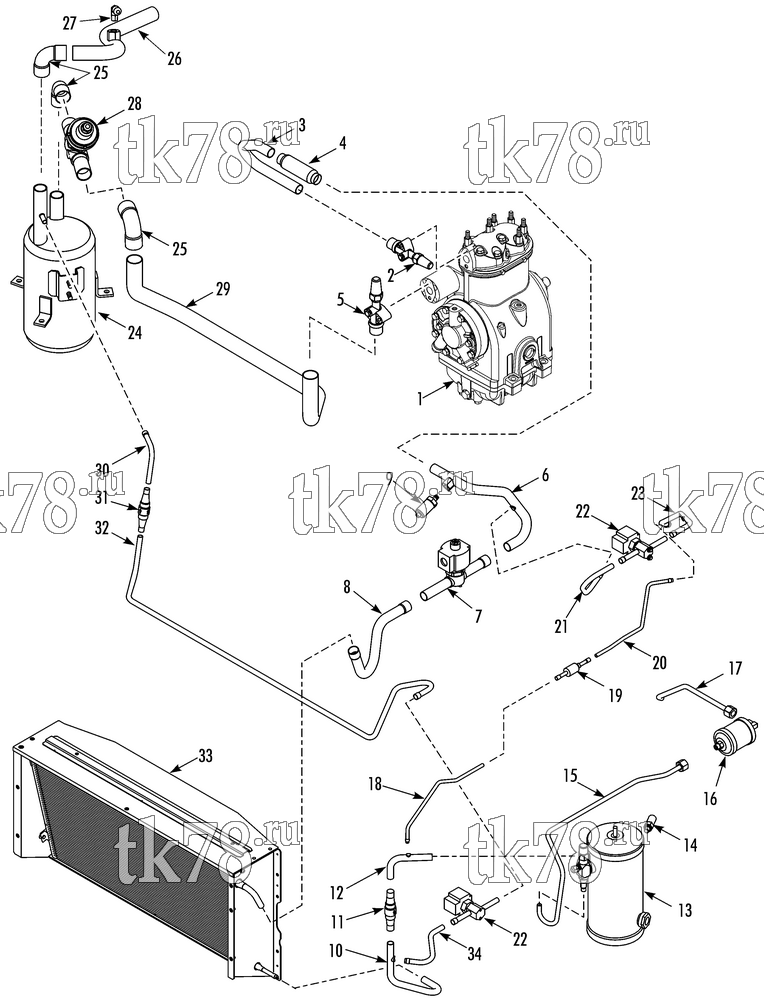

Установкa Thermo King T-680R TSA схема REFRIGERATION - CONDENSER (T-680R/880R) – 267A2
Обновление от: 3/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-1072 | COMPRESSOR - X214 (see 185H5) | 1 | |
| 2 | 66-129 | VALVE - discharge (see 242G9) | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 3 | 61-4798 | TUBE - valve to strainer | 1 | |
| 4 | 61-4682 | STRAINER - discharge | 1 | |
| 5 | 66-1916 | VALVE - suction | 1 | |
|
10-66-1916 | Клапан всасывающий (Suction) | 13 270 ₽ |
|
| 6 | 61-6171 | TUBE - strainer to condenser valve | 1 | |
| 7 | 61-4861 | VALVE - condenser inlet | 1 | |
| 92-9926 | BRACKET - valve | 1 | ||
| 8 | 61-6122 | TUBE - valve to condenser | 1 | |
| 9 | 41-7962 | TRANSDUCER - discharge | 1 | |
|
42-1312 OEM | Трансдюсер, SL-400/SL-400e/SLX/SLXe/T-Series | 29 680 ₽ |
|
|
10-42-1312 | Трансдюсер, SL-400/SL-400e/SLX/SLXe/T-Series | 10 060 ₽ |
|
| 10 | 61-6123 | TUBE - condenser to check valve | 1 | |
| 11 | 66-5722 | VALVE - check | 1 | |
| 12 | 61-5954 | TUBE - check valve to receiver tank | 1 | |
| 13 | 67-2706 | TANK - receiver (see 235H5) | 1 | |
| 14 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 15 | 61-5955 | TUBE - tank to dehydrator | 1 | |
| 16 | 61-800 | DEHYDRATOR (see 235H6) | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 4 650 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 600 ₽ |
|
| 17 | 61-6124 | TUBE - dehydrator to evaporator | 1 | |
| 18 | 61-5959 | TUBE - valve to receiver tank | 1 | |
| 19 | 66-8669 | VALVE - check | 1 | |
| 20 | 61-4707 | TUBE - valve to tube | 1 | |
| 21 | 61-6126 | TUBE - discharge tube to hot gas solenoid | 1 | |
| 22 | 66-6384 | VALVE - hot gas & purge (see 116G14) | 2 | |
| 10-66-6384 | Соленоид, MD/RD-II / SB-III/ SMX/SMX-II/V-Series | 13 550 ₽ |
|
|
| 23 | 61-6125 | TUBE - hot gas (valve to evaporator) | 1 | |
| 24 | 67-2808 | TANK - accumulator | 1 | |
| 55-5579 | SCREW - tank | 3 | ||
| 55-1173 | LOCKWASHER | 3 | ||
| 55-7072 | FLATWASHER | 3 | ||
| 25 | 55-3682 | ELBOW | 3 | |
| 26 | 61-4681 | TUBE - evaporator to elbow | 1 | |
| 66-3570 | FITTING - saddle | 1 | ||
| 27 | 11-5513 | VALVE - elbow | 1 | |
| 11-7777 | INSERT - valve | 1 | ||
| 55-1983 | CAP - valve | 1 | ||
| 28 | 61-4525 | VALVE - pressure regulator (electric) | 1 | |
| 40-1029 | KIT - valve repair | 1 | ||
| 29 | 61-6372 | TUBE - suction (valve to valve) | 1 | |
| 30 | 61-5718 | TUBE - accumulator to check valve | 1 | |
| 31 | 61-5725 | VALVE - check | 1 | |
| 32 | 61-5960 | TUBE - check valve to solenoid | 1 | |
| 33 | 67-2755 | COIL - condenser/radiator (see 259E8) | 1 |
