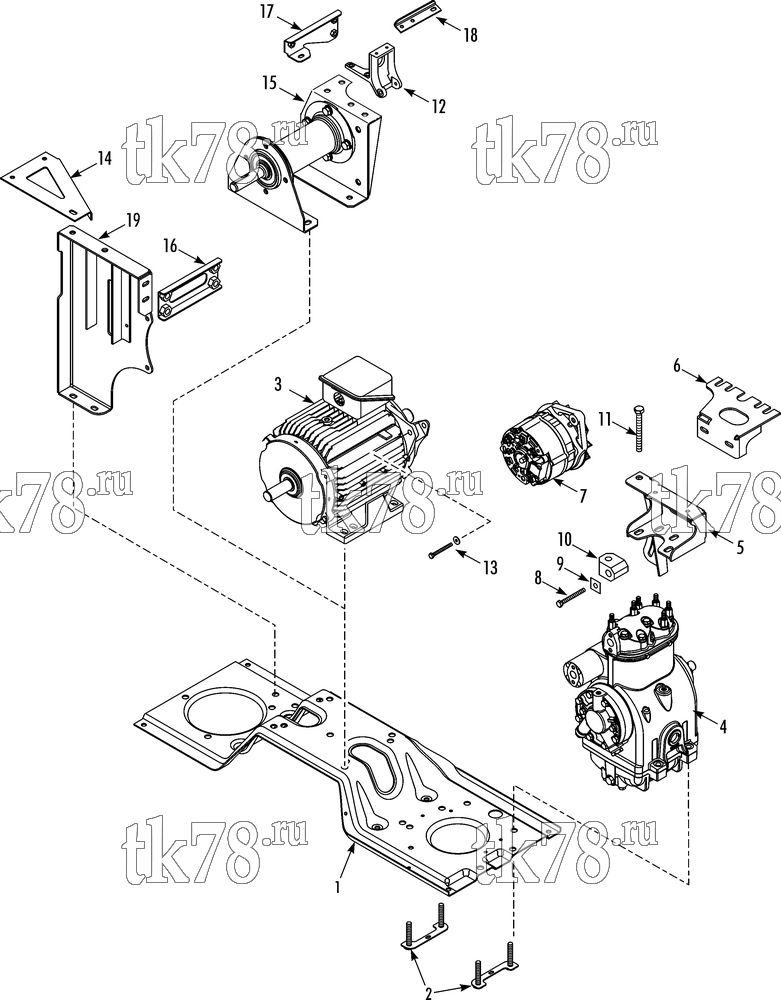

Установкa Thermo King T-680R TSA схема COMPRESSOR, MOTOR & ALTERNATOR MOUNTING – 261H7
Обновление от: 1/28/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8424 | TRAY - power | 1 | |
| 55-7355 | SCREW - tray | 8 | ||
| 55-8536 | FLATWASHER | 8 | ||
| 55-7347 | LOCKWASHER | 8 | ||
| 2 | 92-8124 | BOLTSTRIP - compressor | 2 | |
| 3 | 104-801 | MOTOR - 7.2 hp | 1 | |
| 55-7358 | SCREW - motor | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 4 | 102-1072 | COMPRESSOR - X214 (see 240H6) | 1 | |
| 55-7344 | NUT - compressor | 4 | ||
| 55-2200 | LOCKWASHER | 4 | ||
| 55-399 | WASHER - special | 4 | ||
| 5 | 92-9601 | BRACKET - compressor/alternator | 1 | |
| 55-8658 | NUT- compressor | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 6 | 92-7633 | BRACKET - compressor/frame | 1 | |
| 55-6987 | SCREW - bracket to bracket | 2 | ||
| 55-7341 | SCREW - bracket to frame | 2 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 7 | 45-2255 | ALTERNATOR (37 amp) | 1 | |
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 45-2498 | ALTERNATOR (37 amp) | 1 | ||
| 45-2257 | ALTERNATOR (65 amp, see 242H0) | 1 | ||
|
10-45-2590 | Генератор 65A, UT800/1200 | 13 870 ₽ |
|
|
10-41-6781 | Генератор 65A, SB-XXX/SMX/SMX-II/SL/SLe/SLX/SLXe SB-II/III | 13 840 ₽ |
|
| 8 | 51-1867 | SCREW - alternator adjust (M8 x 50) | 1 | |
| 55-7727 | LOCKWASHER (M8) | 1 | ||
| 55-7069 | FLATWASHER (M8) | 1 | ||
| 9 | 93-617 | GAUGE - angle adjust | 2 | |
| 10 | 77-3052 | BLOCK - adjust | 1 | |
| 11 | 55-8379 | SCREW - alternator adjust (M10 x 80) | 1 | |
| 55-7122 | WASHER (Belleville) | 2 | ||
| 12 | 92-9607 | BRACKET - alternator/jackshaft | 1 | |
| 55-7006 | NUT - bracket | 2 | ||
| 13 | 51-1867 | SCREW - alternator pivot (M10 x 40) | 1 | |
| 55-7347 | LOCKWASHER (M10) | 1 | ||
| 55-8536 | FLATWASHER (M10) | 1 | ||
| 14 | 92-9228 | BRACKET - arch support | 1 | |
| 55-7341 | SCREW - bracket | 3 | ||
| 55-7069 | FLATWASHER | 3 | ||
| 55-7727 | LOCKWASHER | 3 | ||
| 15 | 78-1695 | JACKSHAFT (see 235H7) | 1 | |
| 16 | 92-8490 | BRACKET - tension (50s) | 1 | |
| 17 | 92-7760 | BRACKET - tension (30s) | 1 | |
| 55-6764 | SCREW - bracket (M8 X 70) | 2 | ||
| 55-6215 | SCREW - bracket (M8 X 20) | 2 | ||
| 55-7072 | FLATWASHER | 4 | ||
| 55-1173 | LOCKWASHER | 4 | ||
| 18 | 92-8385 | BRACKET - support (30s) | 1 | |
| 19 | 93-625 | BRACKET - tension (see 250F5) | 1 |
