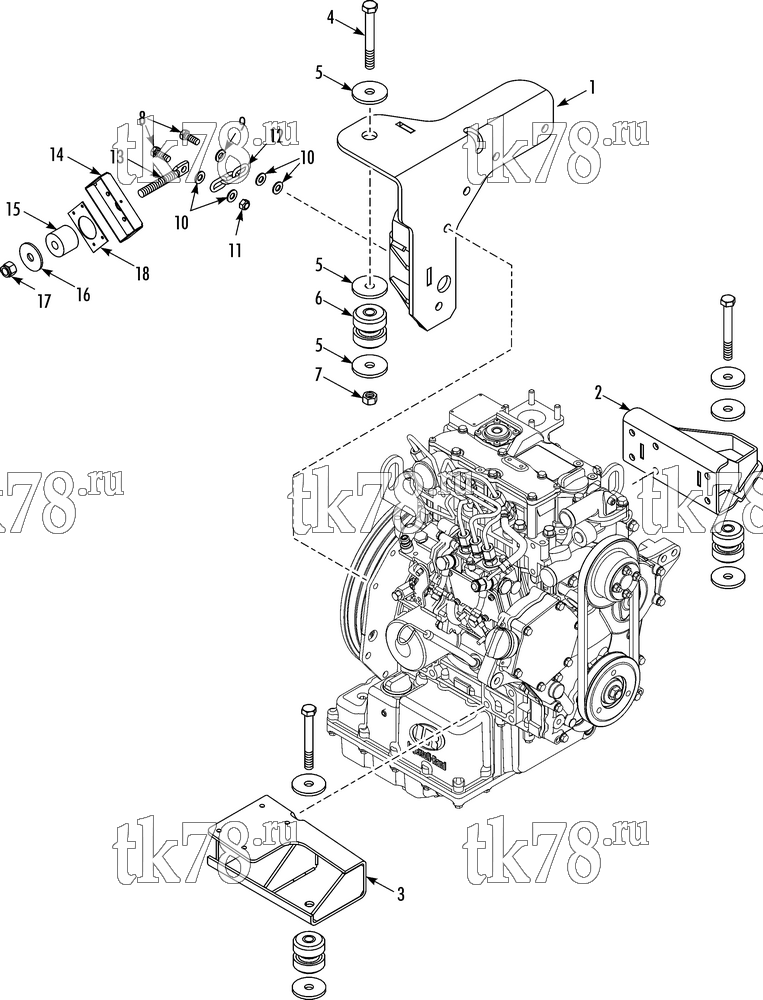

Установкa Thermo King T-680R TSA схема ENGINE MOUNTING GROUP (3TNV74) – 261H0
Обновление от: 12/21/125/4/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-8830 | BRACKET - engine (upper rear) | 1 | |
| 2 | 92-7529 | BRACKET - engine (compressor side) | 1 | |
| 3 | 92-7530 | BRACKET - engine (door side) | 1 | |
| 55-5957 | SCREW - plate & bracket (socket head) | 14 | ||
| 55-7122 | WASHER - belleville | 14 | ||
| 203-400 | SEALER - thread | A/R | ||
| 4 | 51-2438 | SCREW - mount | 3 | |
| 5 | 55-5871 | WASHER - special | 8 | |
| 6 | 93-577 | MOUNT - vibration (set of two) | 3 | |
|
10-93-577 | Опора двигателя, Yanmar 374, T-Series | 3 410 ₽ |
|
| 7 | 55-3686 | NUT | 3 | |
| 8 | 55-3048 | SCREW - chain | 3 | |
| 9 | 55-7122 | WASHER - belleville | 1 | |
| 10 | 55-2641 | FLATWASHER | 5 | |
| 11 | 55-8658 | NUT | 4 | |
| 12 | 11-8035 | CHAIN - 3 links | 1 | |
| 13 | 99-541 | BOLT - eye 1/2 in | 1 | |
| 14 | 92-8831 | BRACKET - snubber | 1 | |
| 15 | 92-7533 | SPACER - spring | 1 | |
| 16 | 55-3594 | WASHER - special | 1 | |
| 17 | 55-2640 | NUT | 1 | |
| 18 | 92-8832 | PLATE - bearing | 1 | |
| 55-9495 | RIVET - plate | 4 |
