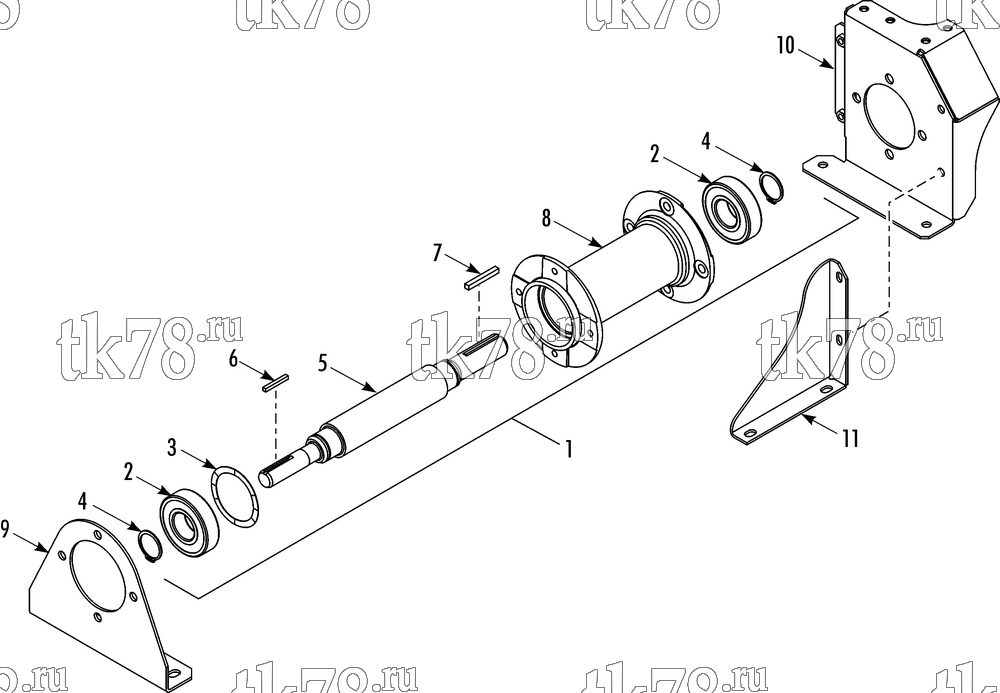

Установкa Thermo King T-680R TSA схема JACKSHAFT ASSEMBLY (2/13 & after) – 259E2
Обновление от: 1/29/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1695 | JACKSHAFT | 1 | |
| 2 | 77-2779 | BEARING | 2 | |
| 77-3125 OEM | Подшипник турбины конденсатора, SLX/SLXe | 3 960 ₽ |
|
|
| 77-2779 OEM | Подшипник промвала, SLe | 3 960 ₽ |
|
|
| PP-77-2779 | Подшипник промвала, SLe | 2 200 ₽ |
|
|
| 3 | 55-9958 | WASHER - wave | 1 | |
| 4 | 55-9957 | RING - external | 2 | |
| 5 | 77-2959 | SHAFT | 1 | |
| 6 | 55-3264 | KEY (1.25 in lg) | 1 | |
| 7 | 55-3263 | KEY (1.75 in lg) | 1 | |
| 8 | NSS | HOUSING | 1 | |
| 9 | 92-7844 | BRACKET - condenser side | 1 | |
| 10 | 92-9605 | BRACKET - evaporator side T-500R/DAIRY) | 1 | |
| 93-626 | BRACKET - evaporator side (T-6XX/8XX) | 1 | ||
| 55-6998 | SCREW - cover | 8 | ||
| 55-7347 | LOCKWASHER | 8 | ||
| 55-8536 | FLATWASHER | 8 | ||
| 11 | 92-9606 | SUPPORT - jackshaft | 1 | |
| 55-7341 | SCREW - support (M8) | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 55-7355 | SCREW - jackshaft (M10) | 4 | ||
| 55-7347 | LOCKWASHER | 4 | ||
| 55-8536 | FLATWASHER | 4 |
