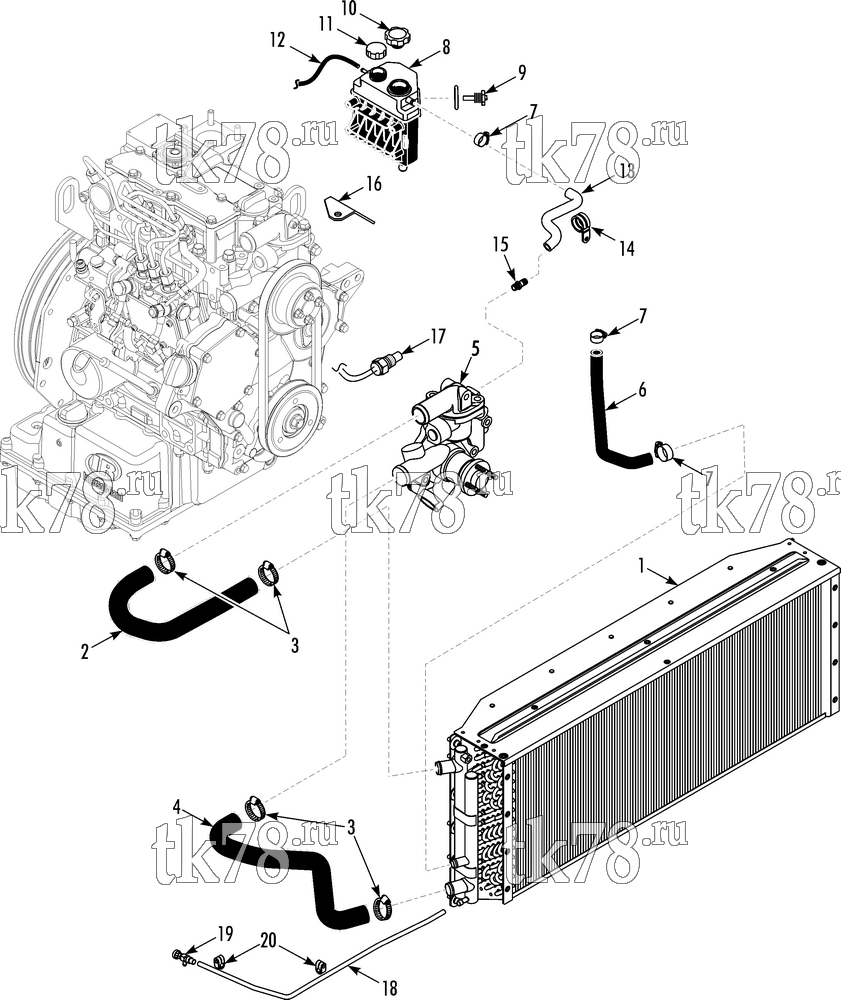

Установкa Thermo King T-600 M схема ENGINE COOLING SYSTEM T-570/600/800 – 256A9
Обновление от: 2/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2436 | COIL - condenser/radiator | 1 | |
|
10-67-2969 | Конденсатор, T-600/800 | 52 630 ₽ |
|
| PP-67-2969 | Конденсатор, T-600/800 | 32 700 ₽ |
|
|
| 51-1841 | SCREW - coil | 12 | ||
| 55-7727 | LOCKWASHER | 12 | ||
| 55-7144 | WASHER - special | 12 | ||
| 2 | 13-1004 | HOSE - engine to radiator (upper, EPDM) | 1 | |
| 13-1002 | HOSE - engine to radiator (upper, silicone) | 1 | ||
| 3 | 55-2818 | CLAMP - hose (EPDM) | 4 | |
| 55-3401 | CLAMP - hose (silicone) | 4 | ||
| 4 | 13-1005 | HOSE - engine to radiator (lower, EPDM) | 1 | |
| 13-1003 | HOSE - engine to radiator (lower, silicone) | 1 | ||
| 5 | 13-948 | PUMP - water (see 213H6) | 1 | |
|
10-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 30 290 ₽ |
|
|
PP-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 9 320 ₽ |
|
| 6 | 13-1008 | HOSE - coil to coolant tank (EPDM) | 1 | |
| 13-1007 | HOSE - coil to coolant tank (silicone) | 1 | ||
| 7 | 55-5002 | CLAMP - hose | 4 | |
| 8 | 13-1057 | TANK - coolant | 1 | |
|
10-13-1057 | Расширительный бачок, T-Series | 17 820 ₽ |
|
| 9 | 42-427 | SWITCH - coolant level | 1 | |
| 33-3007 | O-RING - switch | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 10 | 13-990 | CAP - tank (15 psi) | 1 | |
|
10-13-990 | Крышка расширительного бачка, T-Series | 1 490 ₽ |
|
| 11 | 13-957 | CAP - overflow | 4 | |
| 55-5955 | SCREW - tank | 4 | ||
| 55-7478 | LOCKWASHER | 4 | ||
| 55-4638 | FLATWASHER | 4 | ||
| 12 | 98-8282 | HOSE - overflow | 1 | |
| 13 | 13-1052 | HOSE - bleed (5/8 id EPDM) | 1 | |
| 13-1053 | HOSE - bleed (5/8 id silicone) | 1 | ||
| 14 | 55-4552 | CLAMP - hose | 1 | |
| 55-4606 | SCREW - clamp | 1 | ||
| 55-4638 | FLATWASHER | 1 | ||
| 55-7478 | LOCKWASHER | 1 | ||
| 15 | 55-4167 | FITTING - straight | 1 | |
| 16 | 92-7531 | BRACKET - sensor | 1 | |
| 17 | 41-6538 | SENSOR - engine coolant | 1 | |
|
10-41-6538 | Сенсор температуры двигателя, SLX/SB-XXX | 18 500 ₽ |
|
|
PP-41-6538 | Сенсор температуры двигателя, SLX/SB-XXX | 3 210 ₽ |
|
| 18 | 13-999 | TUBE - drain coolant | 1 | |
| 19 | 55-7134 | COCK - drain | 1 | |
| 66-2672 | ADAPTER - drain cock | 1 | ||
| 203-385 | SEALER - thread | A/R | ||
| 20 | 55-6388 | CLAMP - tube | 2 | |
| 55-2001 | SCREW - clamp | 2 | ||
| 55-5929 | SPACER | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 |
