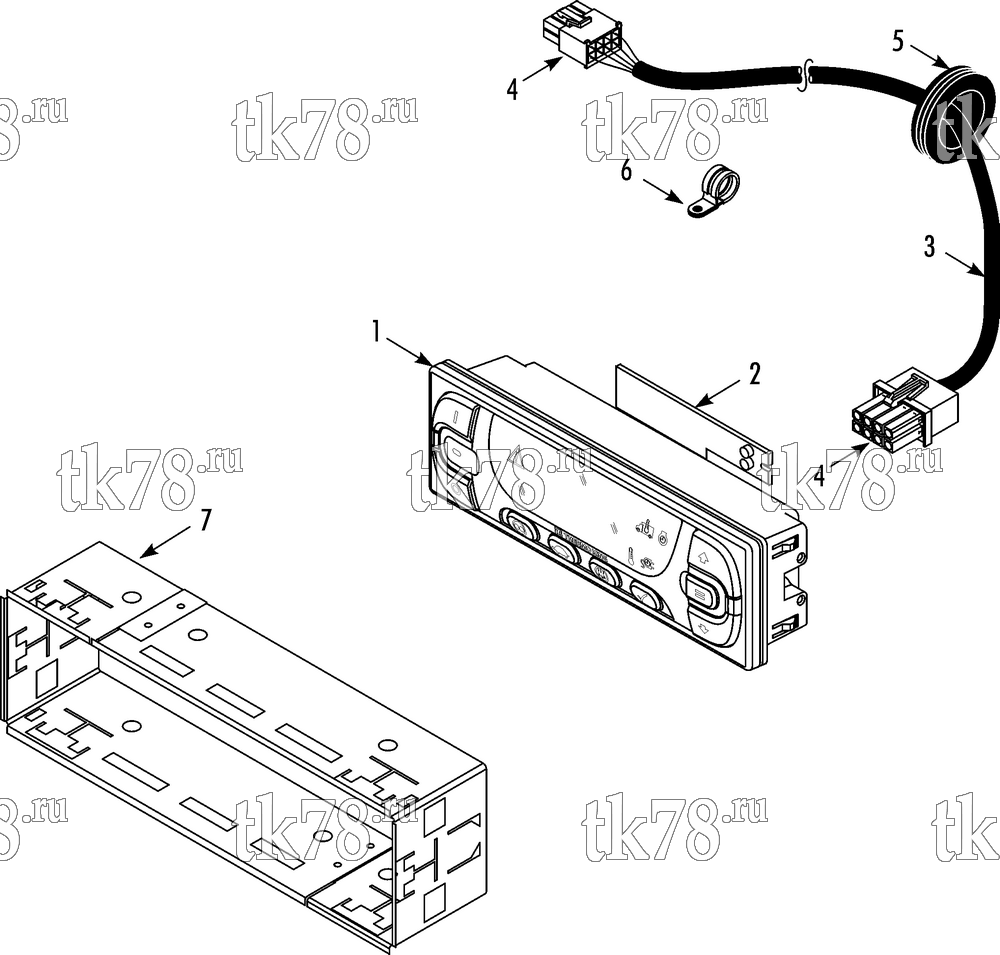

Установкa Thermo King T-600 M схема HMI CONTROLLER & HARNESS – 247E6
Обновление от: 6/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2376 | CONTROLLER - cab (standard, HMI) | 1 | |
|
45-2376 OEM | Пульт управления, T-Series | 75 680 ₽ |
|
| 2 | 92-8984 | COVER - harness | 1 | |
| 3 | 41-8742 | HARNESS - HMI controller (standard) | 1 | |
| 10-41-8742 | Проводка пульта управления, T-Series | 19 630 ₽ |
|
|
| 42-644 | HARNESS - HMI controller (standard, extended length) | 1 | ||
| 4 | 41-8870 | CONNECTOR - interface board (8-pin) | 2 | |
| 5 | 33-2110 | GROMMET (1.0 in) | 1 | |
| 6 | 55-3484 | CLAMP - harness | 5 | |
| 55-5640 | SCREW - clamp | 5 | ||
| 55-2001 | FLATWASHER | 5 | ||
| 7 | 92-5199 | BRACKET - din | 1 | |
| 91-4308 | BRACKET - controller | 2 | ||
| 55-5636 | SCREW - bracket | 4 | ||
| 55-2201 | FLATWASHER | 4 |
