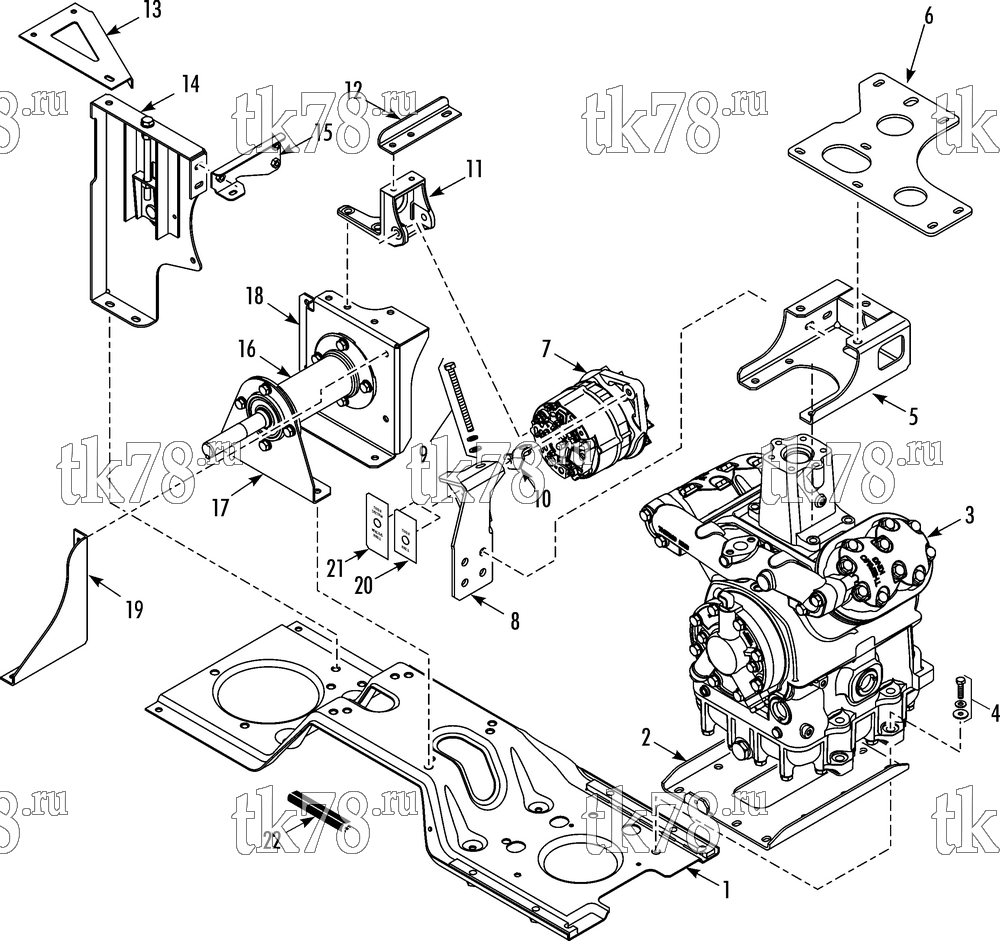

Установкa Thermo King T-1200R SPECTRUM EMEIA схема COMPRESSOR & JACKSHAFT MOUNTING (T-1000R/1200R 30s) – 241G2
Обновление от: 8/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8502 | TRAY - power | 1 | |
| 55-7004 | SCREW - tray | 8 | ||
| 55-7072 | FLATWASHER | 8 | ||
| 55-1173 | LOCKWASHER | 8 | ||
| 2 | 92-8379 | BRACKET - compressor | 1 | |
| 55-4680 | SCREW - bracket | 6 | ||
| 55-7478 | LOCKWASHER | 6 | ||
| 55-4638 | FLATWASHER | 6 | ||
| 3 | 8102-911 | COMPRESSOR - X426 LS C5 T-1000R/1000M (dry new exchange, see 226C5) | 1 | |
| 8102-900 | COMPRESSOR - X430 LS C5 (T-1200R new exchange, see 240C3) | 1 | ||
| 4 | 55-5427 | SCREW - compressor | 4 | |
| 55-2200 | LOCKWASHER | 4 | ||
| 55-399 | WASHER - special | 4 | ||
| 5 | 92-8380 | BRACKET - compressor/alternator | 1 | |
| 55-9106 | SCREW - bracket | 4 | ||
| 55-896 | FLATWASHER | 4 | ||
| 6 | 92-8381 | BRACKET - compressor/frame | 1 | |
| 55-5022 | SCREW - bracket (M8 x 20) | 5 | ||
| 55-5424 | SCREW - bracket (M8 x 25) | 2 | ||
| 55-7069 | FLATWASHER | 7 | ||
| 55-7727 | LOCKWASHER | 7 | ||
| 55-5871 | WASHER - special | 2 | ||
| 7 | 45-2255 | ALTERNATOR (37 amp) | 1 | |
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 45-2259 | ALTERNATOR (120 amp) | 1 | ||
|
10-41-6782 | Генератор 120A, SB-XXX/SB-III/SMX/SMX-II/SL/SLe | 14 230 ₽ |
|
| 51-1959 | SCREW - alternator adjust (M8 x 25, full thread) | 1 | ||
| 55-7727 | LOCKWASHER (M8) | 1 | ||
| 55-5871 | WASHER - special | 1 | ||
| 55-8751 | SCREW - alternator pivot (M10 x 90) | 1 | ||
| 55-7072 | FLATWASHER (M10) | 2 | ||
| 55-7005 | NUT (M10) | 1 | ||
| 8 | 92-8382 | BRACKET - alternator | 1 | |
| 55-5424 | SCREW - bracket | 4 | ||
| 55-7727 | LOCKWASHER | 4 | ||
| 55-7069 | FLATWASHER | 4 | ||
| 9 | 51-2027 | SCREW - alternator adjust (M10 x 90, full thread) | 1 | |
| 55-7072 | FLATWASHER | 1 | ||
| 55-1173 | LOCKWASHER | 1 | ||
| 10 | 92-8383 | BRACKET - alternator (adjusting) | 1 | |
| 11 | 92-8384 | BRACKET - alternator (pivot, casting) | 1 | |
| 12 | 92-8385 | BRACKET - alternator to frame | 1 | |
| 55-5579 | SCREW - bracket | 2 | ||
| 55-7072 | FLATWASHER | 2 | ||
| 55-1173 | LOCKWASHER | 2 | ||
| 13 | 92-9228 | BRACKET - arch support | 1 | |
| 55-5022 | SCREW - bracket | 3 | ||
| 55-7069 | FLATWASHER | 3 | ||
| 55-7727 | LOCKWASHER | 3 | ||
| 14 | 92-9513 | BRACKET - tension | 1 | |
| 55-5579 | SCREW - bracket to tray | 3 | ||
| 55-5424 | SCREW - bracket to jackshaft | 2 | ||
| 55-1173 | LOCKWASHER | 5 | ||
| 55-7072 | FLATWASHER | 5 | ||
| 55-7144 | WASHER - special | 3 | ||
| 15 | 92-7760 | BRACKET - tension | 1 | |
| 55-5022 | SCREW - bracket (M8 X 20) | 3 | ||
| 55-6764 | SCREW - bracket (M8 X 70) | 2 | ||
| 55-7072 | FLATWASHER (M8) | 5 | ||
| 55-7727 | LOCKWASHER (M8) | 3 | ||
| 16 | 78-1697 | JACKSHAFT (see 236B6) | 1 | |
| 55-7072 | SCREW - jackshaft to bracket (M10 X 20) | 4 | ||
| 55-5579 | SCREW - jackshaft to bracket (M10 X 25) | 4 | ||
| 55-7072 | FLATWASHER (M10) | 8 | ||
| 55-1173 | LOCKWASHER (M10) | 8 | ||
| 17 | 92-7843 | BRACKET - jackshaft (cond end) | 1 | |
| 18 | 92-8386 | BRACKET - jackshaft (evap end) | 1 | |
| 19 | 92-8387 | BRACKET - support | 1 | |
| 55-1173 | LOCKWASHER (M10) | 6 | ||
| 55-7072 | FLATWASHER (M10) | 6 |
