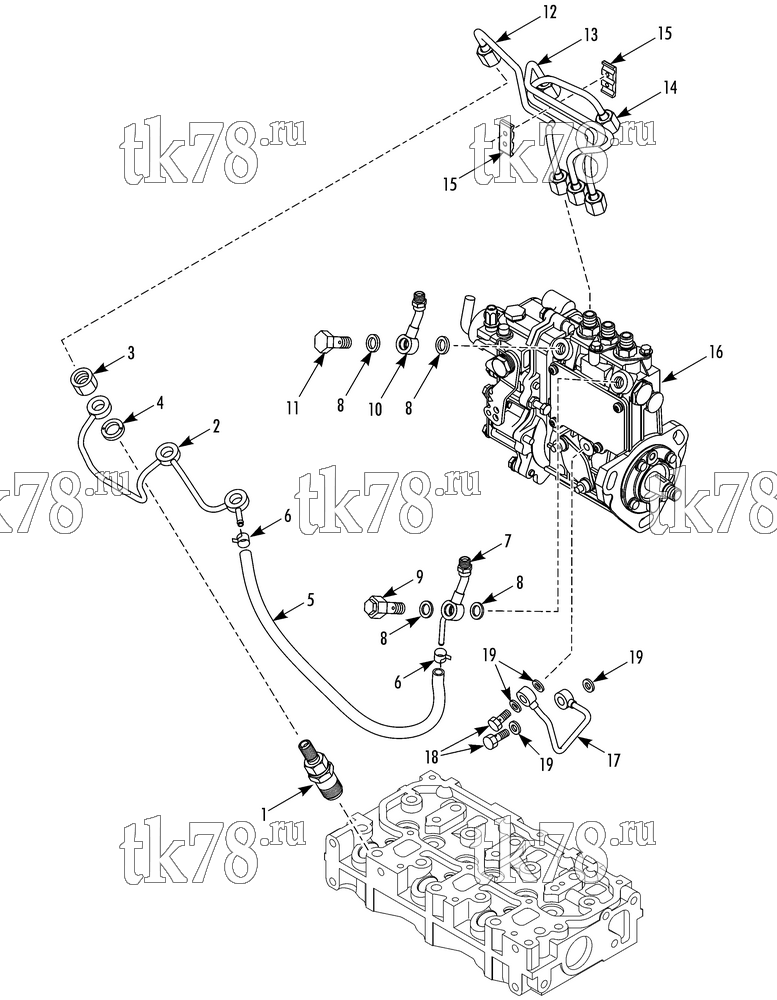

Установкa Thermo King T-1080S TSA схема FUEL INJECTION GROUP (3TNV80) – 267C6
Обновление от: 7/16/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 13-1391 | VALVE - injection | 3 | |
| 2 | 11-9690 | TUBE - fuel return | 1 | |
| 3 | 11-6115 | NUT | 3 | |
| 4 | 33-3834 | GASKET - return | 3 | |
| 5 | 13-1381 | HOSE - fuel return (includes two clamps) | 1 | |
| 6 | NSS | CLAMP | 2 | |
| 7 | 13-602 | JOINT - banjo | 1 | |
| 8 | 55-8620 | WASHER - seal | 4 | |
| 9 | 13-436 | VALVE - check | 1 | |
| 10 | 13-433 | JOINT - banjo | 1 | |
| 11 | 11-6110 | SCREW - banjo | 1 | |
| 12 | 13-1414 | PIPE - fuel injection | 1 | |
| 13 | 13-1415 | PIPE - fuel injection | 1 | |
| 14 | 13-1416 | PIPE - fuel injection | 1 | |
| 15 | 11-6109 | CLAMP - injection pipe | 1 | |
| 55-8626 | SCREW - clamp | 2 | ||
| 16 | 13-1409 | PUMP - fuel injection (3TNV80) | 1 | |
| 17 | 13-1381 | PIPE - oil | 1 | |
| 18 | 51-606 | SCREW - banjo | 2 | |
| 19 | 55-4622 | WASHER | 4 | |
| 30-317 | GASKET SET (see 267C8) | 1 |
