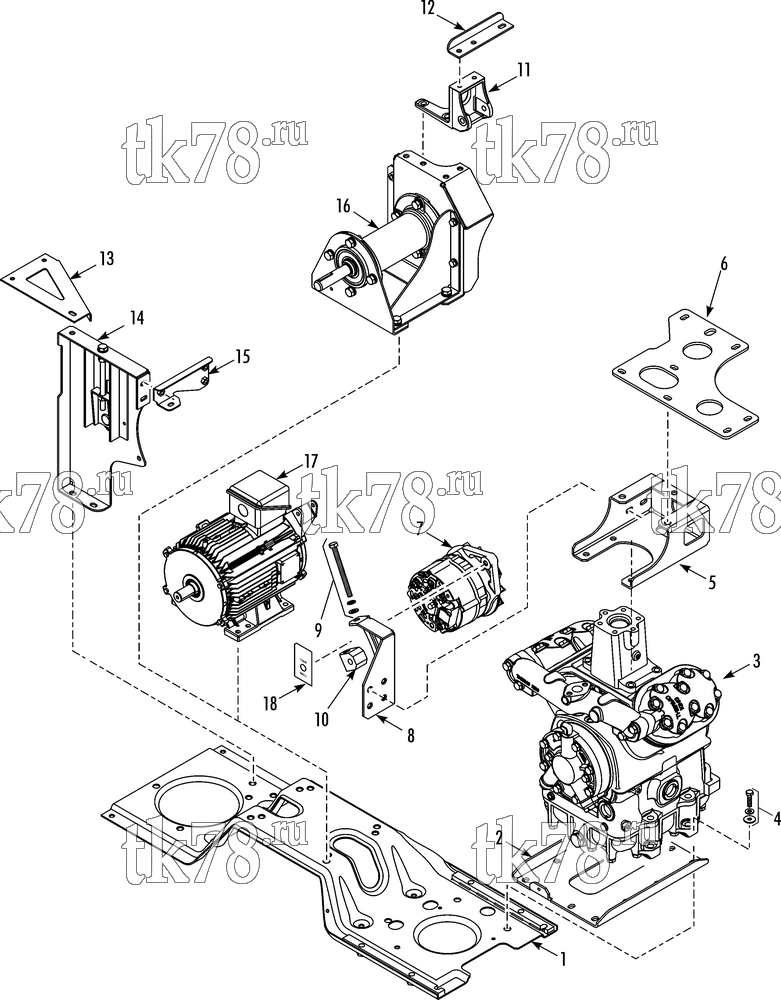

Установкa Thermo King T-1000R SPECTRUM EMEIA схема COMPRESSOR & MOTOR/JACKSHAFT MOUNTING (T-1080R) – 267B0
Обновление от: 8/17/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8502 | TRAY - power | 1 | |
| 55-7839 | SCREW - tray | 8 | ||
| 55-7072 | FLATWASHER | 8 | ||
| 55-1173 | LOCKWASHER | 8 | ||
| 2 | 92-8379 | BRACKET - compressor | 1 | |
| 55-4680 | SCREW - bracket | 6 | ||
| 55-7478 | LOCKWASHER | 6 | ||
| 55-4638 | FLATWASHER | 6 | ||
| 3 | 8102-911 | COMPRESSOR - X426 LS C5 T-1080R/1080M (dry new exchange, see 226C5) | 1 | |
| 4 | 55-7358 | SCREW - compressor | 4 | |
| 55-2200 | LOCKWASHER | 4 | ||
| 51-2196 | WASHER - special | 4 | ||
| 5 | 92-8380 | BRACKET - compressor/alternator | 1 | |
| 55-9106 | SCREW - bracket | 4 | ||
| 55-896 | FLATWASHER | 4 | ||
| 6 | 92-8381 | BRACKET - compressor/frame | 1 | |
| 55-7341 | SCREW - bracket (M8 x 20) | 5 | ||
| 55-6993 | SCREW - bracket (M8 x 25) | 2 | ||
| 55-7069 | FLATWASHER | 7 | ||
| 55-7727 | LOCKWASHER | 7 | ||
| 55-5871 | WASHER - special | 2 | ||
| 7 | 45-2498 | ALTERNATOR (37 amp) | 1 | |
| 45-2255 | ALTERNATOR (37 amp) | 1 | ||
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 45-2502 | ALTERNATOR (120 amp) | 1 | ||
| 51-2376 | SCREW - alternator pivot | 1 | ||
| 55-7342 | LOCKWASHER | 1 | ||
| 8 | 93-668 | BRACKET - alternator | 1 | |
| 55-9106 | SCREW - bracket | 4 | ||
| 55-7727 | LOCKWASHER | 4 | ||
| 55-896 | FLATWASHER | 8 | ||
| 9 | 51-1620 | SCREW - alternator adjust (M10 x 130, full thread) | 1 | |
| 55-7072 | FLATWASHER | 1 | ||
| 10 | 77-3052 | BLOCK - adjust | 1 | |
| 11 | 92-8384 | BRACKET - alternator (pivot, casting) | 1 | |
| 12 | 92-8385 | BRACKET - alternator to frame | 1 | |
| 55-5579 | SCREW - bracket | 2 | ||
| 55-7072 | FLATWASHER | 2 | ||
| 55-1173 | LOCKWASHER | 2 | ||
| 13 | 92-9228 | BRACKET - arch support | 1 | |
| 55-5022 | SCREW - bracket | 3 | ||
| 55-7069 | FLATWASHER | 3 | ||
| 55-7727 | LOCKWASHER | 3 | ||
| 14 | 92-9513 | BRACKET - tension | 1 | |
| 55-5579 | SCREW - bracket to tray | 3 | ||
| 55-5424 | SCREW - bracket to jackshaft | 2 | ||
| 55-1173 | LOCKWASHER | 5 | ||
| 55-7072 | FLATWASHER | 5 | ||
| 55-7144 | WASHER - special | 3 | ||
| 15 | 92-7760 | BRACKET - tension | 1 | |
| 55-5022 | SCREW - bracket (M8 X 20) | 3 | ||
| 55-6764 | SCREW - bracket (M8 X 70) | 2 | ||
| 55-7072 | FLATWASHER (M8) | 5 | ||
| 55-7727 | LOCKWASHER (M8) | 3 | ||
| 16 | 78-1697 | JACKSHAFT (see 236B6) | 1 | |
| 55-7072 | SCREW - jackshaft to bracket (M10 X 20) | 4 | ||
| 55-5579 | SCREW - jackshaft to bracket (M10 X 25) | 4 | ||
| 55-7072 | FLATWASHER (M10) | 8 | ||
| 55-1173 | LOCKWASHER (M10) | 8 | ||
| 17 | 104-791 | MOTOR (12 hp) | 1 | |
| 18 | 93-669 | TOOL - angle setting | 1 |
