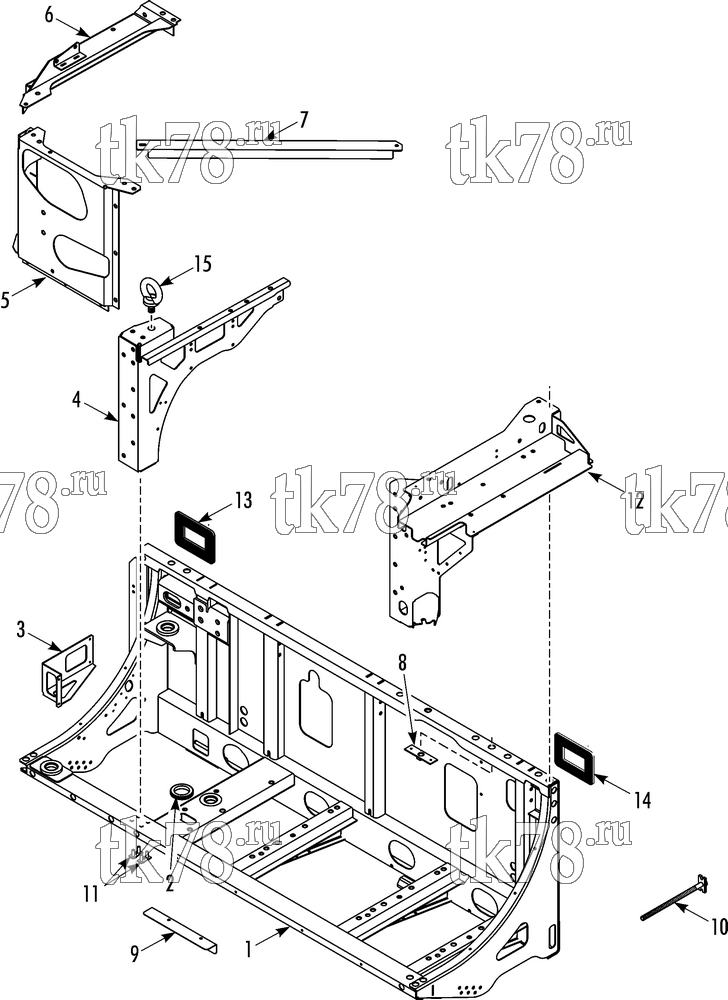

Установкa Thermo King T-1000R SPECTRUM EMEIA схема CONDENSER FRAME GROUP (SPECTRUM) – 241D5
Обновление от: 6/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8290 | FRAME - condenser | 1 | |
| 55-9084 | INSERT (M6) | 25 | ||
| 51-1880 | INSERT (M8) | 20 | ||
| 2 | 33-1371 | GROMMET (1.7 id) | 2 | |
| 3 | 92-7522 | MEMBER - bottom | 1 | |
| 4 | 92-7523 | ARCH - support | 1 | |
| 55-6764 | SCREW - arch | 2 | ||
| 5 | 92-7524 | BRACKET - front | 1 | |
| 92-9928 | BRACKET - front (units w/ micro-channel coil) | 1 | ||
| 6 | 92-7525 | BRACKET - fuel filter | 1 | |
| 7 | 92-7526 | BRACE - condenser coil | 1 | |
| 55-6215 | SCREW - bracket & support | 15 | ||
| 55-7727 | LOCKWASHER | 15 | ||
| 55-7069 | FLATWASHER | 15 | ||
| 8 | 92-7642 | NUTSTRIP - unit lifting | 2 | |
| 55-9495 | RIVET - nutstrip | 4 | ||
| 9 | 92-7521 | BRACKET - battery cable (see 236D0) | 1 | |
| 10 | 99-630 | T-BOLT (6.0 in lg) | A/R | |
| 92-8703 | T-BOLT (7.75 in lg) | A/R | ||
| 99-214 | T-BOLT (9.6 in lg) | A/R | ||
| 55-5234 | WASHER - special | 4 | ||
| 55-3686 | NUT | 4 | ||
| 11 | 91-9931 | BOLTSTRIP | 2 | |
| 51-1881 | RIVET - boltstrip | 2 | ||
| 12 | 92-9654 | BRACKET - valve | 1 | |
| 92-9654 | BRACKET - valve (units w/ micro-channel coil) | 1 | ||
| 55-5424 | SCREW - bracket | 8 | ||
| 55-7727 | LOCKWASHER | 8 | ||
| 55-7069 | FLATWASHER | 8 | ||
| 13 | 33-3590 | GASKET - sill (suction side) | 1 | |
| 14 | 33-4588 | GASKET - sill (liquid & hot gas side) | 1 | |
| 15 | 51-2026 | BOLT - unit lifting | 3 |
