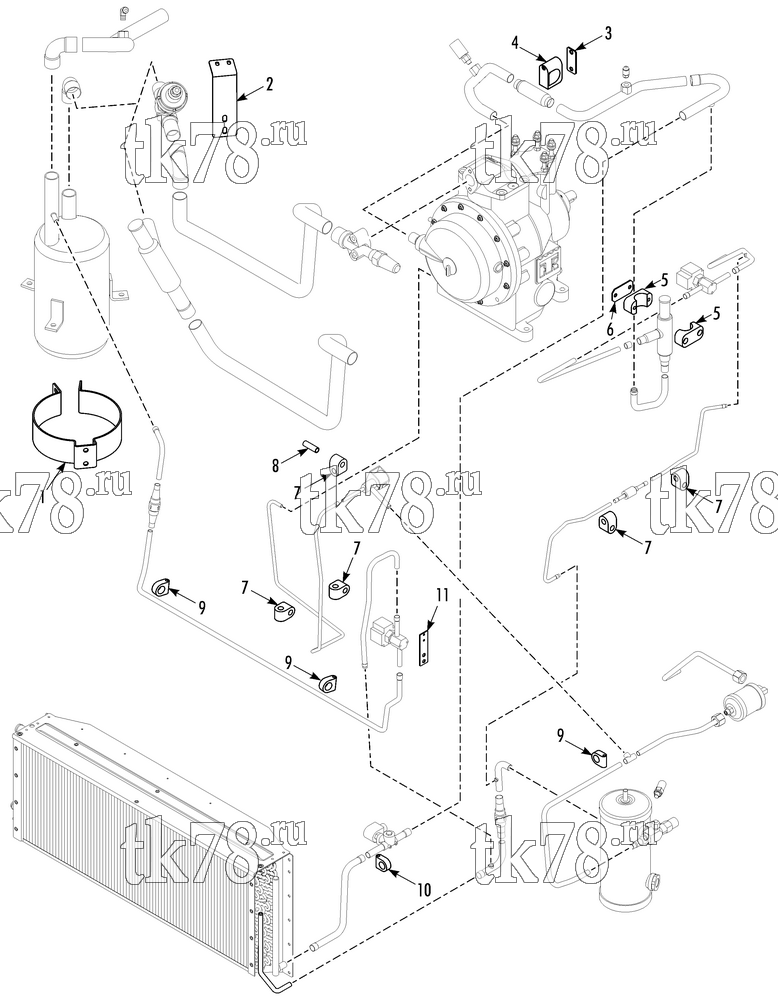

Установкa Thermo King T-1000 TSA схема REFRIGERATION TUBES, CLAMPS & MOUNTING – 236D9
Обновление от: 6/2/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-7655 | CLAMP - accumulator tank | 1 | |
| 2 | 92-7656 | BRACKET - ETV | 1 | |
| 3 | 92-7578 | BRACKET - strainer | 1 | |
| 4 | 91-3886 | CLAMP - tube (1.0 in. dia) | 1 | |
| 55-7018 | SCREW - clamp (M6 X 55) | 1 | ||
| 55-7478 | LOCKWASHER | 1 | ||
| 55-4638 | FLATWASHER | 1 | ||
| 5 | 91-5143 | CLAMP - tube (1.12 dia) | 2 | |
| 6 | 91-3157 | PLATE - clamp | 2 | |
| 55-6209 | SCREW - clamp (M6 X 65) | 2 | ||
| 55-7478 | LOCKWASHER | 2 | ||
| 55-4638 | FLATWASHER | 2 | ||
| 7 | 55-6544 | CLAMP - tube (0.25 dia) | 5 | |
| 55-4605 | SCREW - clamp (M6 X 40) | 4 | ||
| 55-7802 | SCREW - clamp (M6 X 60) | 1 | ||
| 55-7478 | LOCKWASHER | 5 | ||
| 55-4638 | FLATWASHER | 5 | ||
| 8 | 55-5929 | SPACER - tubular (1.2 in lg) | 1 | |
| 9 | 55-6388 | CLAMP (0.38 dia) | 1 | |
| 55-4605 | SCREW - clamp (M6 X 40) | 2 | ||
| 55-7478 | LOCKWASHER | 2 | ||
| 55-4638 | FLATWASHER | 2 | ||
| 10 | 55-549 | CLAMP (0.500 dia) | 1 | |
| 55-7546 | SCREW - clamp (M6 X 50) | 1 | ||
| 55-7478 | LOCKWASHER | 1 | ||
| 55-4638 | FLATWASHER | 1 | ||
| 11 | 92-7786 | BRACKET - valve | 1 | |
| 55-4606 | SCREW - clamp | 2 | ||
| 55-7478 | LOCKWASHER | 2 | ||
| 55-4638 | FLATWASHER | 2 |
