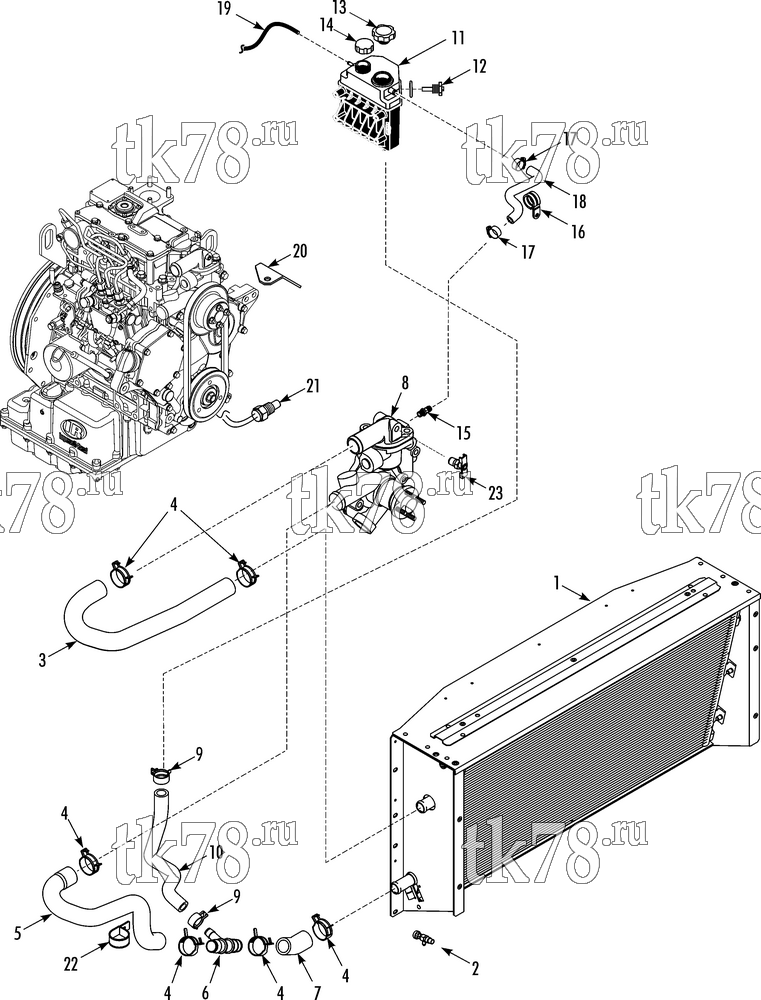

Установкa Thermo King T-1000 SPECTRUM TSA схема ENGINE COOLING SYSTEM T-1000/1200 (micro-channel coil) – 259E8
Обновление от: 6/13/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2726 | COIL - condenser/radiator | 1 | |
|
10-67-2966 | Конденсатор, T-1000/1200 | 68 440 ₽ |
|
| PP-67-2966 | Конденсатор, T-1000/1200 | 36 500 ₽ |
|
|
| 55-8559 | SCREW - coil | 8 | ||
| 55-7342 | LOCKWASHER | 8 | ||
| 55-7085 | FLATWASHER | 8 | ||
| 2 | 55-7134 | COCK - drain | 1 | |
| 3 | 13-1242 | HOSE - engine to radiator (upper, EPDM) | 1 | |
| 13-1246 | HOSE - engine to radiator (upper, silicone) | 1 | ||
| 4 | 51-1739 | CLAMP - hose | 6 | |
| 5 | 13-1661 | HOSE - tee to radiator (lower, EPDM) | 1 | |
| 99-1655 | HOSE - tee to radiator (lower, silicone) | 1 | ||
| 6 | 13-1145 | TEE | 1 | |
| 7 | 13-1241 | HOSE - coil to tee (EPDM) | 1 | |
| 13-1245 | HOSE - coil to tee (silicone) | 1 | ||
| 8 | 13-948 | PUMP - water (see 213H6) | 1 | |
|
10-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 30 290 ₽ |
|
|
PP-13-948 | Водяной насос, Yanmar 370 / 376, T-Series | 9 320 ₽ |
|
| 9 | 13-1148 | CLAMP - hose | 2 | |
| 10 | 13-1054 | HOSE - bleed (5/8 id EPDM) | 1 | |
| 13-1055 | HOSE - bleed (5/8 id silicone) | 1 | ||
| 11 | 13-1057 | TANK - coolant | 1 | |
|
10-13-1057 | Расширительный бачок, T-Series | 17 820 ₽ |
|
| 55-5955 | SCREW - tank | 4 | ||
| 55-7478 | LOCKWASHER | 4 | ||
| 55-4638 | FLATWASHER | 4 | ||
| 12 | 42-427 | SWITCH - coolant level | 1 | |
| 33-3007 | O-RING - switch | 1 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 13 | 13-990 | CAP - tank (15 psi) | 1 | |
|
10-13-990 | Крышка расширительного бачка, T-Series | 1 490 ₽ |
|
| 14 | 13-957 | CAP - overflow | 4 | |
| 15 | 55-4167 | FITTING - straight | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 16 | 55-4552 | CLAMP - hose | 1 | |
| 55-4606 | SCREW - clamp | 1 | ||
| 55-7478 | LOCKWASHER | 1 | ||
| 17 | 51-1989 | CLAMP - hose | 2 | |
| 18 | 13-1243 | HOSE - bleed (EPDM) | 1 | |
| 13-1247 | HOSE - bleed (silicone) | 1 | ||
| 19 | 98-771 | HOSE - overflow (cut to 100 in) | A/R | |
| 20 | 92-7531 | BRACKET - sensor | 1 | |
| 21 | 41-6538 | SENSOR - engine coolant | 1 | |
|
10-41-6538 | Сенсор температуры двигателя, SLX/SB-XXX | 18 500 ₽ |
|
|
PP-41-6538 | Сенсор температуры двигателя, SLX/SB-XXX | 3 210 ₽ |
|
| 22 | 503-349 | CLAMP - hose | 1 | |
| 23 | 55-6789 | COCK - drain | 1 |
