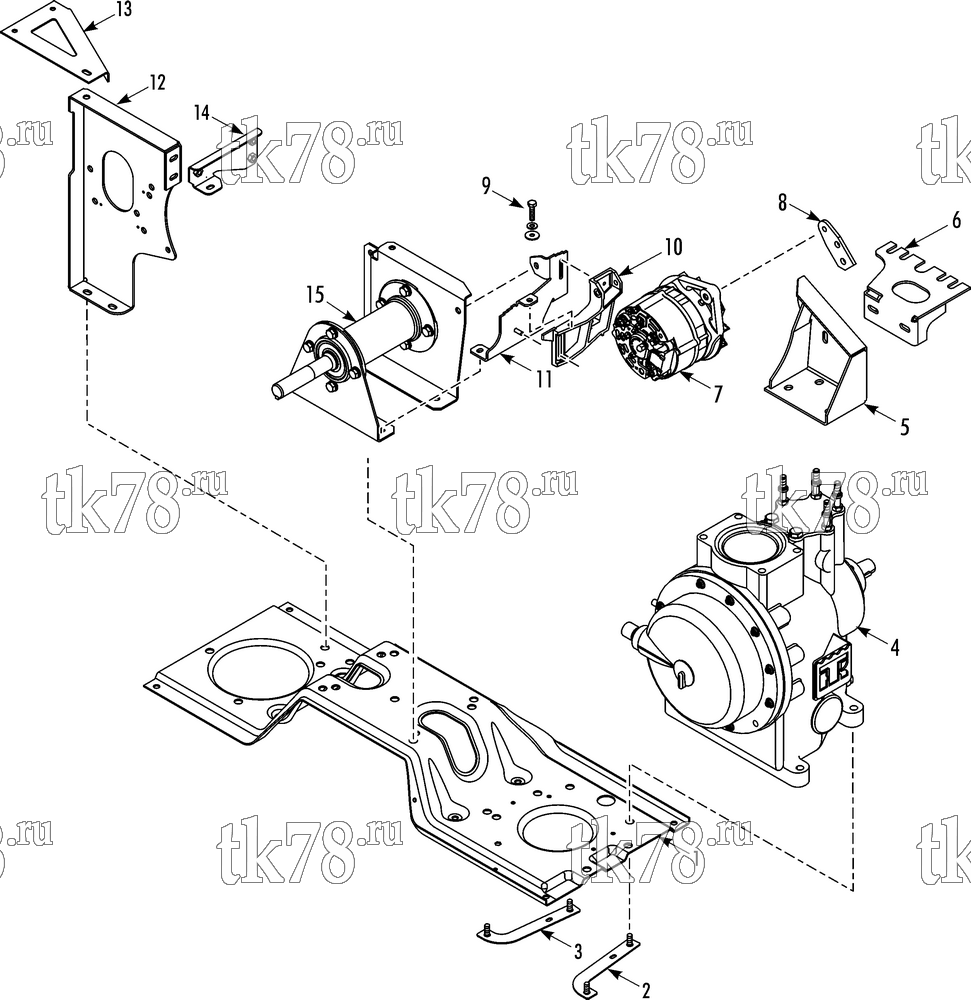

Установкa Thermo King T-1000 SPECTRUM TSA схема MOTOR & COMPRESSOR MOUNTING (T-1000 30s) – 236B3
Обновление от: 1/29/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8210 | TRAY - power | 1 | |
| 55-7004 | SCREW - tray | 8 | ||
| 55-7072 | FLATWASHER | 8 | ||
| 55-1173 | LOCKWASHER | 8 | ||
| 2 | 92-7549 | BOLTSTRIP - compressor | 1 | |
| 3 | 92-7550 | BOLTSTRIP - compressor | 1 | |
| 55-4666 | SCREW - boltstrip | 2 | ||
| 55-4638 | FLATWASHER | 2 | ||
| 55-7007 | NUT | 2 | ||
| 4 | 102-951 | COMPRESSOR - scroll (see 235H4) | 1 | |
| 55-7005 | NUT - compressor | 4 | ||
| 55-7144 | WASHER - Belleville | 4 | ||
| 55-5667 | WASHER - special | 4 | ||
| 5 | 92-7762 | BRACKET - compressor/alternator | 1 | |
| 55-7792 | NUT- compressor | 4 | ||
| 6 | 92-7763 | BRACKET - compressor/frame | 1 | |
| 55-5022 | SCREW - bracket | 2 | ||
| 55-7069 | FLATWASHER | 2 | ||
| 55-7727 | LOCKWASHER | 2 | ||
| 7 | 45-2255 | ALTERNATOR (37 amp) | 1 | |
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 45-2259 | ALTERNATOR (120 amp, SPECTRUM units) | 1 | ||
|
10-41-6782 | Генератор 120A, SB-XXX/SB-III/SMX/SMX-II/SL/SLe | 14 230 ₽ |
|
| 55-6215 | SCREW - alternator (M8 x 30) | 1 | ||
| 55-7727 | LOCKWASHER (M8) | 1 | ||
| 55-7069 | FLATWASHER (M8) | 1 | ||
| 55-8586 | SCREW - alternator (M10 x 80) | 1 | ||
| 55-7072 | FLATWASHER (M10) | 2 | ||
| 55-7005 | NUT (M10) | 1 | ||
| 8 | 92-7765 | BRACKET - alternator | 1 | |
| 55-5424 | SCREW - bracket | 2 | ||
| 55-7727 | LOCKWASHER | 2 | ||
| 55-7069 | FLATWASHER | 1 | ||
| 55-3289 | WASHER - special | 1 | ||
| 51-1959 | SCREW - bracket to alternator | 1 | ||
| 55-7006 | NUT - lock | 1 | ||
| 55-4621 | NUT | 1 | ||
| 9 | 51-1904 | SCREW - alternator adjust | 2 | |
| 55-7072 | FLATWASHER | 2 | ||
| 55-7005 | NUT | 2 | ||
| 10 | 92-7756 | BRACKET - clevis | 1 | |
| 55-7006 | NUT - bracket | 2 | ||
| 55-3289 | WASHER - special | 2 | ||
| 11 | 92-7764 | BRACKET - alternator/jackshaft | 1 | |
| 55-5579 | SCREW - bracket | 2 | ||
| 55-7072 | FLATWASHER | 2 | ||
| 55-1173 | LOCKWASHER | 2 | ||
| 12 | 90-438 | BRACKET - tension (before 2/11, see 242G8) | 1 | |
| 92-9513 | BRACKET - tension (2/11 & after, see 250F5) | 1 | ||
| 55-5579 | SCREW - bracket to tray | 3 | ||
| 55-5424 | SCREW - bracket to jackshaft | 2 | ||
| 55-1173 | LOCKWASHER | 5 | ||
| 55-7072 | FLATWASHER | 5 | ||
| 55-7144 | WASHER - special | 3 | ||
| 13 | 92-9228 | BRACKET - arch support | 1 | |
| 55-5022 | SCREW - bracket | 3 | ||
| 55-7069 | FLATWASHER | 3 | ||
| 55-7727 | LOCKWASHER | 3 | ||
| 14 | 92-7760 | BRACKET - tension | 1 | |
| 55-5022 | SCREW - bracket (M8 X 20) | 3 | ||
| 55-6764 | SCREW - bracket (M8 X 70) | 2 | ||
| 55-7072 | FLATWASHER (M8) | 5 | ||
| 55-7727 | LOCKWASHER (M8) | 3 | ||
| 55-5579 | SCREW - bracket to jackshaft (M10 X 25) | 1 | ||
| 55-7072 | FLATWASHER (M10) | 1 | ||
| 55-1173 | LOCKWASHER (M10) | 1 | ||
| 15 | 78-1697 | JACKSHAFT (see 236B6) | 1 | |
| 55-5427 | SCREW - jackshaft | 4 |
